Antwerpen 21 February 2019 |
|
Name |

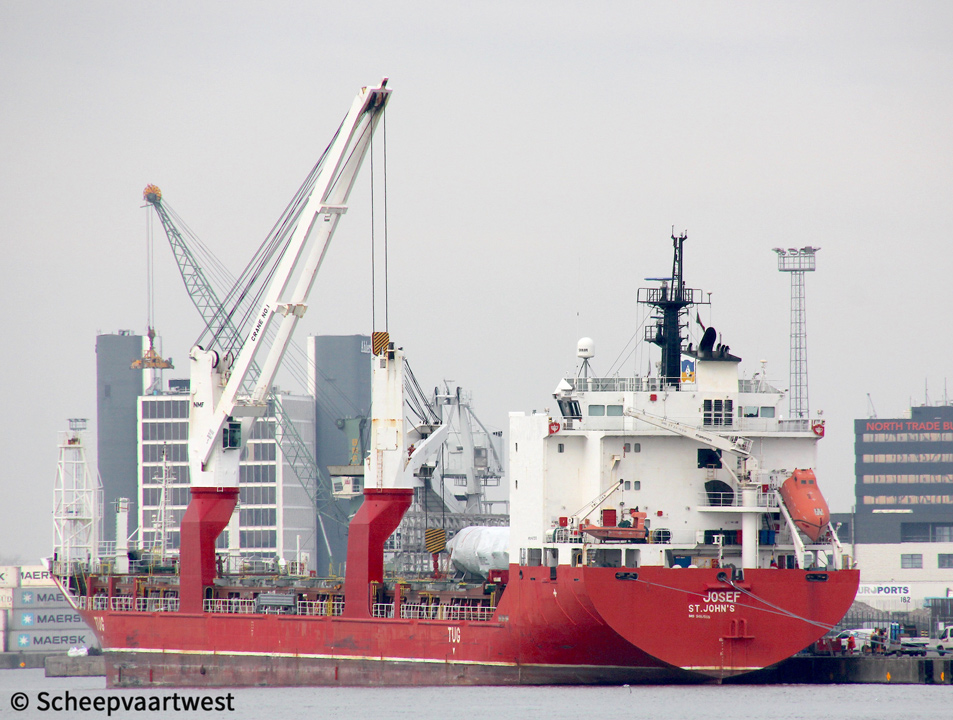

JOSEF |
|
Previous names |
2011 - 05/2011 Beluga Fealty 05/2011 - 2013 Gang Guo 2013 - 2018 HHL Congo |
|
Type |
Multi-purpose dry cargo ship - Heavy lift vessel - Equipped for carriage of containers - Strengthened for heavy cargo and grab fitted |
|
IMO-number |
9467005 |
|
Call sign |
V2FH8 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John’s |
|
GT |
9.616 t |
|
DWT |
Summer: 12.591 t |
|
NT |
4.260 t Panama: 8.427 t Suez: 7.749 t |
|
Number of 20ft containers |
On deck: 331 In hold: 334 Total: 665 |
|
Container capacity 14t |
534 |
|
Reefer plugs |
25 |
|
Length |
137,07 m overall 130,00 m between perpendiculars |
|
Breadth |
21,34 m extreme 21,00 m moulded |
|
Draught |
Max: 8,00 m |
|
Depth |
11,00 m |
|
Speed |
Max: 15,0 knots Eco: 14,0 knots |
|
Built |
2011 |
|
Keel laid |
31/12/2008 |
|
Launch date |
28/09/2010 |
|
Date of completion |
30/05/2011 |
|
Builder |
China Changjiang National Shipping Group Jiangdong Shipyard |
|
Yard number |
JD12000-19 |
|
Hull material |
Steel |
|
Main engine |
1x Mak 6M43C - 6 cylinder combustion engine 5.400 kW / 7.342 bhp at 500 rpm |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
1x Thermal oil heater, exhaust heated 1x Thermal oil heater, oil fired |
|
Shaft generator |
1x 750 kW |
|
Generators |
3x MAN D2840 LE301 main diesel generatorsets each 395 kW - 400/230 Volt 50 Hz |
|
Emergency generator |
1x MAN D2866 E diesel generatorset 99 kW |
|
Bow thruster |
500 kW |
|
Number of holds |
3 Hold 1: 18,75 x 15,02 m aft. To 10,06 m fwd. TD position (5,40 m) Hold 2: 42,00 x 17,50 m TD positions (3,25 m/6,00 m/7,40 m) Hold 3: 25,50 x 17,50 m TD position (5,59 m) |
|
Cargo hold capacity |
563.340 ft³ / 15.952 m³ |
|
Hatches type |
Hydraulic hatch covers on all holds Hold 1: two folding covers opening to fwd Hold 2: two folding covers opening to fwd four folding covers opening aft (splittable hatch covers) Hold 3: four multi-folding covers opening to aft |
|
Max permitted loads |
Tanktop: 16,0 t/m² Hatch covers: 1,75 t/m² Tween deck: 4,0 t/m² |
|
Tank capacities |
Ballast: 5.003,9 m³ Freshwater: 128 m³ |
|
Anchor equipment |
Length: 545,40 m Diameter: 52 mm |
|
Cargo gear |
2x Electro hudraulic NMF deck cranes - SWL 180 t Combinable up to 360 t |
|
Manager |
HS Bereederungs Gmbh & Co KG |
|
Operator |
HS Schiffahrts GmbH & Co. KG |
|
Registered owner |
Schiffahrts UG (haftungsbeschränkt) & Co. KG MS "Josef49733 Haren (Ems) |
|
Latest data adjustment |
10 March 2019 |
