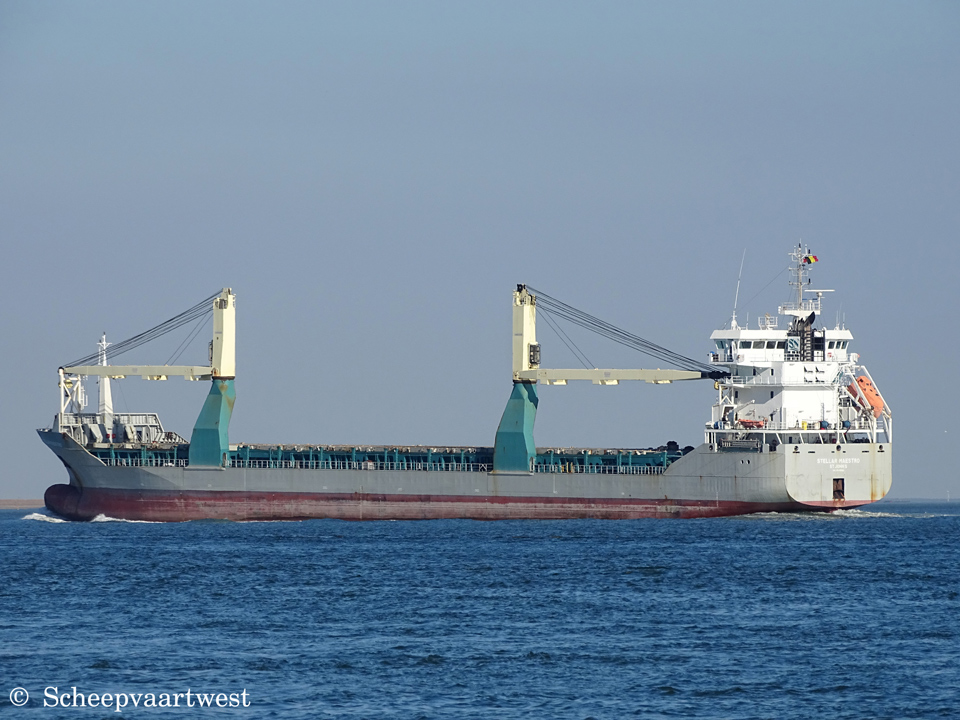

Stellar Maestro 01

Westerschelde 03 August 2018



Name

STELLAR MAESTRO

Type

Multi-purpose dry cargo ship - Carriage of containers - Strengthened for heavy cargo

Damen Combi Freighter® 13600

Basic function

Transport of containers, bulk, steel coils, forest products, general cargo

IMO-number

9549566

Call sign

V2QK8

Flag

Antigua & Barbuda

Port of registry

St. John’s

GT

9.750 t

DWT

Summer: 13.524 t

NT

4.937 t

Number of 20ft containers

In holds: 312

On deck: 962

Total: 704

Reefer plugs

80 on main deck

Length

146,25 m overall

136,99 m between perpendiculars

Breadth

20,20 m extreme

20,10 m moulded

Draught

Max: 8,25 m

Depth

11,45 m moulded

Speed

15,5 knots

Built

2012

Keel laid

01/12/2010

Launch date

14/01/2012

Date of completion

09/06/2012

Builder casco

Damen Yichang Shipyard Co., Ltd.
Yichang
China

Yard number: 567501

Builder completion

Damen Shipyard Gorinchem
Gorinchem
The Netherlands

Hull material

Steel

Main engine

1x Mak-Caterpillar 6M43C - 4 stroke 6 cylinder combustion engine 6.076 kW

Propellers

1x Controllable pitch propeller

4 Blades- Diameter: 4.950 mm

Boilers

1x Thermal oil heater, exhaust heated

1x Thermal oil heater, oil fired

Shaft generator

1x 1.250 kVA, 50 Hz

Generators

3x Caterpillar C18 main diesel generatorsets each 563 kVA, 50 Hz

Emergency generator

1x Caterpillar C9 diesel generatorset 188 kVA, 60 Hz

Bow thruster

1x Controllable pitch propeller 730 kW - 4 blades

Number of holds

2

Hold 1: 26,93 x 15,80/10,48 m
Hold 2: 69,82 x 15,80 m

Cargo hold capacity

Hold 1: 4.005 m³ / 141.435 ft³

Hold 2: 13.252 m³ / 467.990 ft³

Total: 17.257 m³ / 609.425 ft³

Weatherdeck hatches

Hydraulic multi-folding type

Tweendeck hatches

4x Pontoons, uniform load 5,0 t/ m²

Tanktop load

18,0 t/m²

Deck lay-out

Anchor/mooring winches:
2x Electro-hydraulic winches on forecastle deck, with a single drum and warping head

Mooring winches:
2x Electro-hydraulic winches on poop deck, with a single drum and warping head

Tank capacities

HFO (RMG 35): 731 m³

MGO (DMA): 91 m³

Lubrication oil: 38 m³

Dirty oil: 34 m³

Sludge: 17 m³

Separator water: 39 m³

Potable water: 121 m³

Ballast Water: 6.371 m³

Anchor equipment

Length: 550,00 m

Diameter: 54 mm

Lifting equipment

1x Deck crane for free fall boat, rescue boat and life raft

Cargo gear

2x Hydraulic deck cranes - SWL 80,0 t each

Accommodation

For a crew of 14 persons and 4 spare with heating, ventilation and air-conditioning

Manager

Stellar Navigation Ltd.
St. Petersburg
Russian Federation

Registered owner

Stellar Maestro Ltd.

Latest data adjustment

05 January 2019
