Westerschelde 31 March 2017 |
 |
 |
|

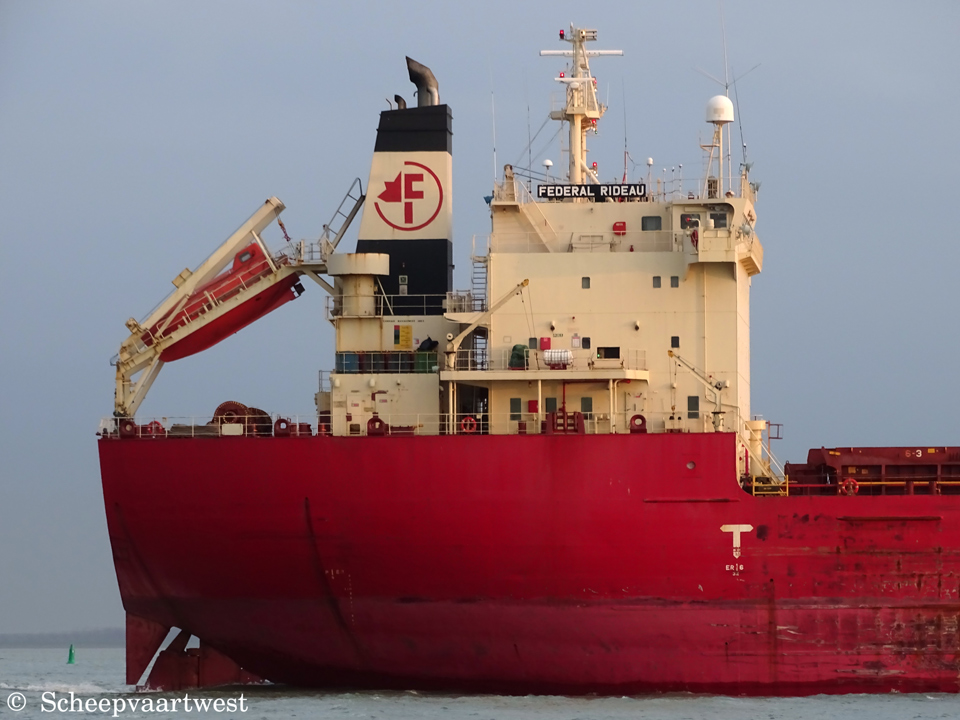

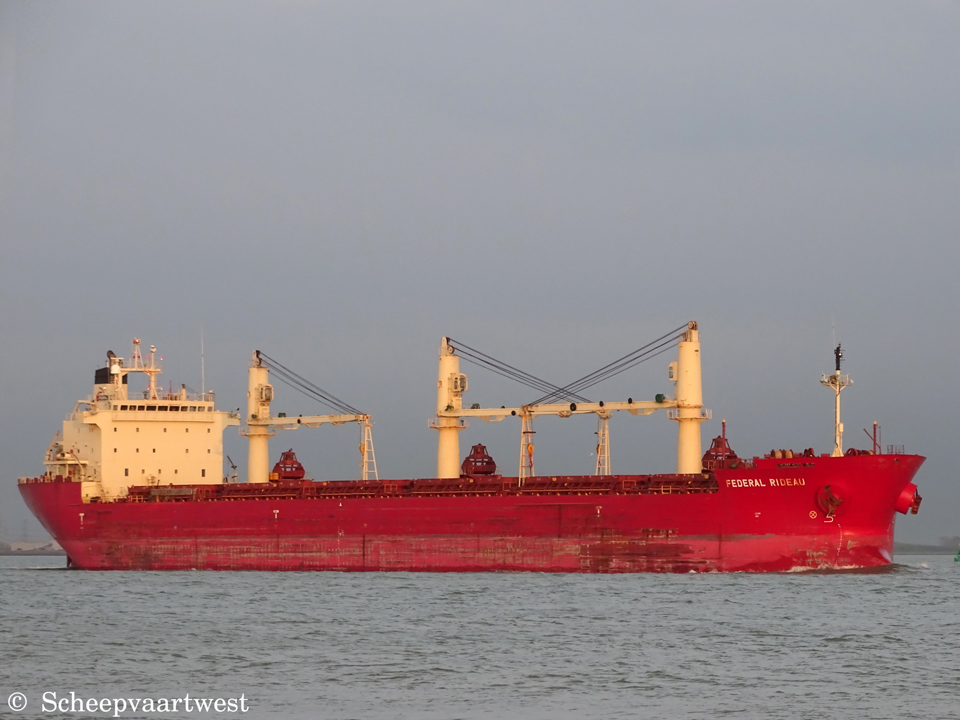

| Westerschelde 31/03/17 | Westerschelde 17/05/19 |
|
Name |
FEDERAL RIDEAU |
|
Type |
Bulk carrier - Laker - Handymax |
|
IMO-number |
9200445 |
|
Call sign |
V7RG5 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
Previous flags |
2009 - 2016 Hong Kong, China |
|
GT |
20.659 t registered |
|
DWT |
Summer: 36.563 t Winter: 35.559 t |
|
NT |
12.019 t registered Panama: 17.404 t Suez: 18.932 t |
|
Length |
199,99 m overall 191,00 m between perpendiculars |
|
Breadth |
23,76 m extreme 23,50 m moulded |
|
Draught |
Summer: 10,75 m Winter: 10,53 m |
|
Keel to mast end |
37,23 m |
|
Depth |
14,85 m |
|
Speed |
14,0 knots laden |
|
Built |
2000 |
|
Keel laid |
05/06/1999 |
|
Launch date |
27/11/1999 |
|
Date of completion |
31/01/2000 |
|
Builder |
Oshima Shipbuilding Co., Ltd. Saikai Japan |
|
Yard number |
10261 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Bulkheads |
Transverse: 8 |
|
Continuous decks |
1 |
|
Main engine |
1x Kawasaki/MAN-B&W 6S46MC-C - 2 stroke 6 cylinder combustion engine 7.878 kW / 10.689 bhp at 129,0 rpm |
|
Propellers |
1x Fixed mono-block pitch propeller |
|
Boilers |
1x Auxiliary boiler, composite GCS-22ST Builder: Aalborg Industries A/S |
|
Generators |
3x Daihatsu 5DK-20 main diesel generatorsets each 449 kW Builder: Daihatsu Diesel Mfg. Co., Ltd. |
|
Emergency generator |
1x Deutz BF6L913 diesel generatorset 125 kW |
|
Bow thruster |
700 kW |
|
Number of holds |
6 Hold 1: 26,08 x 8,24/19,85 m Hold 2: 26,98 x 19,85/19,85 m Hold 3: 25,18 x 19,85/19,85 m Hold 4: 21,58 x 19,85/19,85 m Hold 5: 26,08 x 19,85/19,85 m Hold 6: 26,06 x 19,85/9,90 m |
|
Hold capacity |
Grain / Bale Hold 1: 7.109 m³ / 6.866 m³ Hold 2: 7.990 m³ / 7.663 m³ Hold 3: 7.499 m³ / 7.166 m³ Hold 4: 6.394 m³ / 6.089 m³ Hold 5: 7.759 m³ / 7.412 m³ Hold 6: 7.333 m³ / 7.093 m³ Total: 44.084 m³ / 42.289 m³ |
|
Number of hatches |
6 Hatch 1: 17,10 x 13,20 m Hatch 2: 19,80 x 13,20 m Hatch 3: 19,80 x 13,20 m Hatch 4: 13,50 x 13,20 m Hatch 5: 19,80 x 13,20 m Hatch 6: 18,00 x 13,20 m |
|
Hatch cover type |
Folding Hydraulic |
|
Max permitted loads |
Hold 1: 22,0 t/m² Hold 2: 22,5 t/m² Hold 3: 21,0 t/m² Hold 4: 24,5 t/m² Hold 5: 21,0 t/m² Hold 6: 22,0 t/m² |
|
Tank capacities |
IFO: 1.401 m³ MDO: 436 m³ Ballast: 19.730 m³ |
|
Cargo gear |
3x Electro hydraulic cranes - SWL 30,0 t each Grabs: 3x 10,0 m³ each |
|
Crew size |
30 |
|
Commercial manager |
FEDNAV Limited 1000 de La Gauchetière Street West, Suite 3500 Montreal, Quebec H3B 4W5 Canada |
|
ISM Manager |
Anglo-Eastern Ship Management Ltd. 17th Floor, Kingston International Centre, 19, Wang Chiu Road, Kowloon Bay, Kowloon Hong Kong China |
|
Registered owner |
Federal Oceans Ltd. Care of Fednav Ltd., Bureau 3500, 1000, rue de la Gauchetiere O Montreal QC H3B 4W5 Canada |
|
Latest data adjustment |
20 July 2022 |
