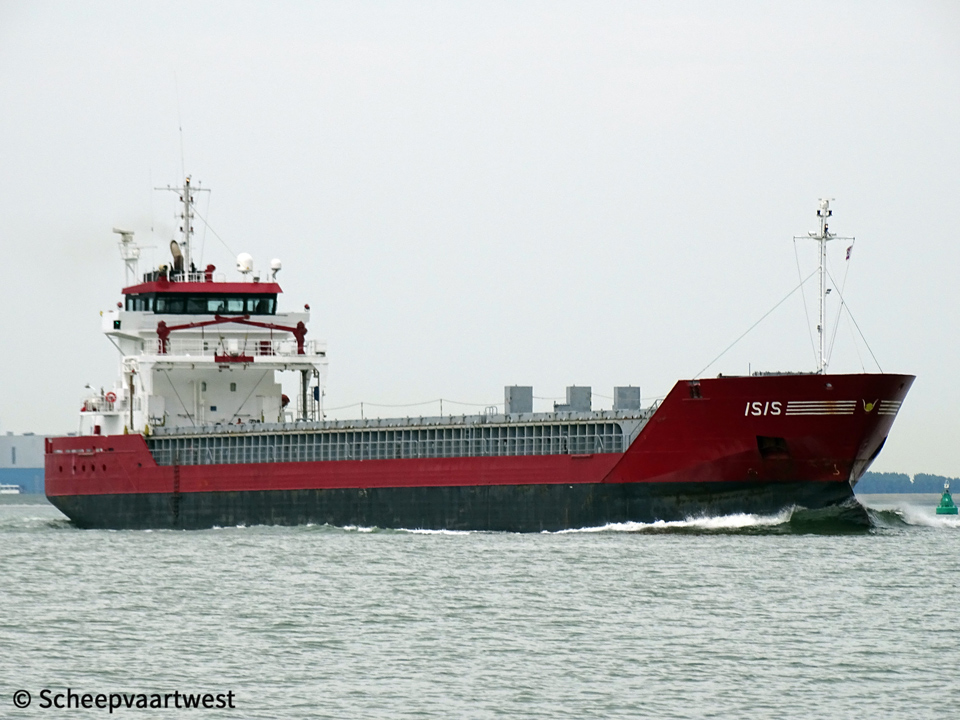

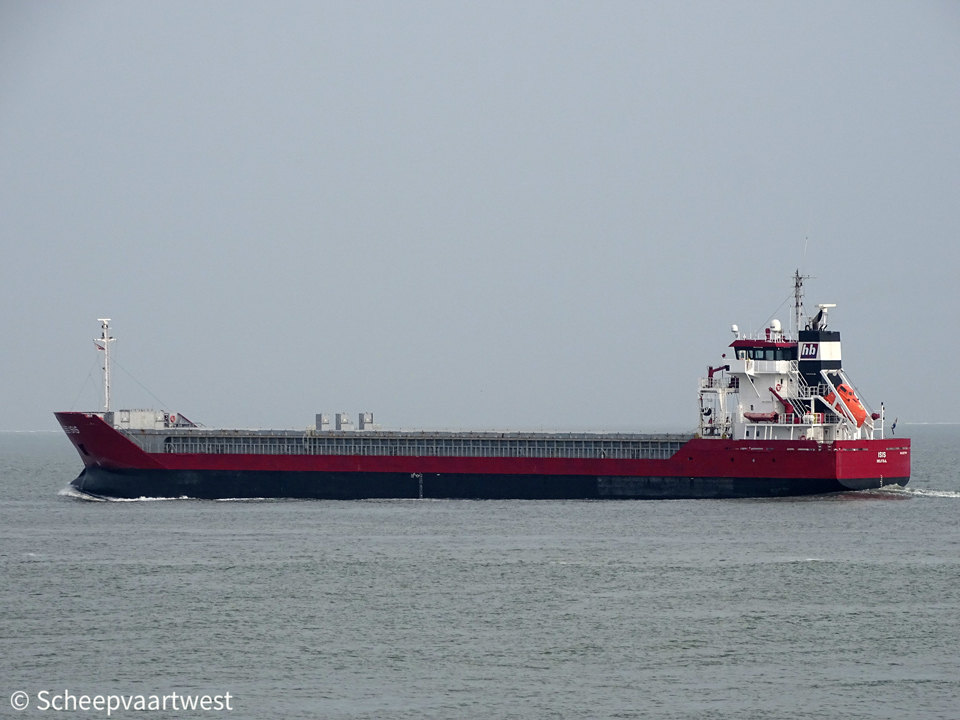

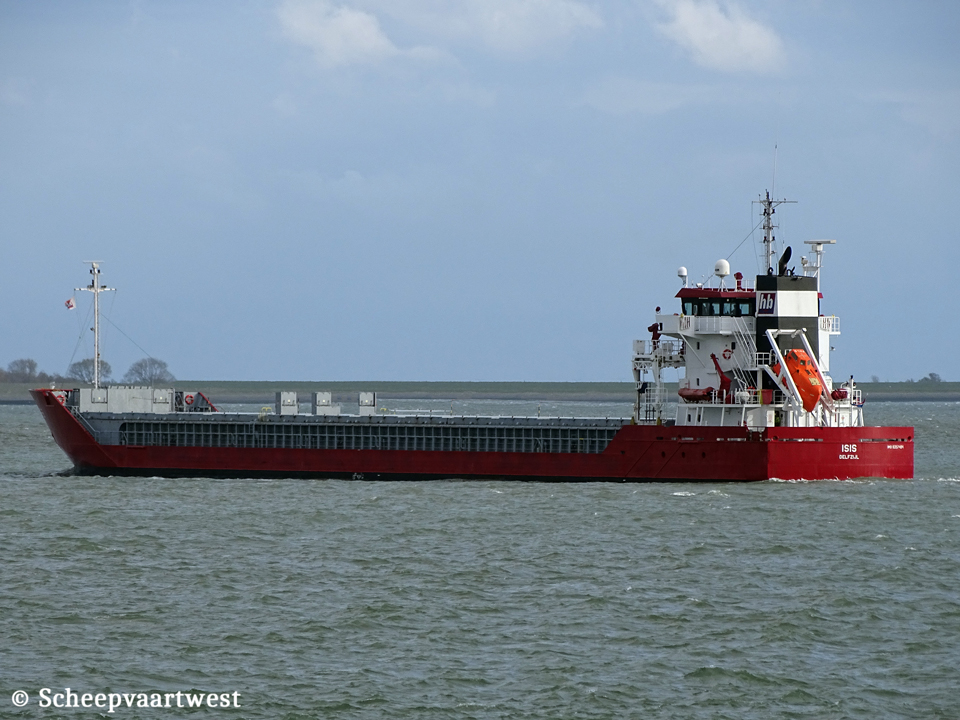

Isis 01

Westerschelde 21 August 2018



Name

ISIS

Type

General cargo ship - Heavycargo - Container ship - Open hatch

IMO-number

9357494

Call sign

PHLD

Flag

The Netherlands

Port of registry

Delfzijl

GT

3.990 t

DWT

Summer: 6.000 t

DWCC

Summer: 5.700 t

NT

2.208 t

Number of 20ft containers

242

Length

110,78 m overall

105,48 m between perpendiculars

Breadth

14,00 m

Draught

Summer: 6,09 m

Winter: 5,97 m

Air draft

29,00 m in ballast

Freeboard

2.054 mm

Depth

8,13 m moulded

Speed

13,0 knots

Built

2007

Keel laid

16/01/2007

Launch date

08/06/2007

Date of completion

04/07/2007

Builder

Scheepswerf Ferus Smit B.V.
Westerbroek
The Netherlands

Yard number

372

Hull material

Steel

Hull type

Double skinned

Watertight compartments

7

Movable bulkheads

3x Movable bulkheads

Continuous decks

1
Machinery aft

Main engine

1x Mak Caterpillar 8M25 - 4 stroke single acting 9 cylinder 255 x 400 mm combustion engine 2.640 kW / 3.587 hp at 750 rpm

Built: 09/01/2007

Builder: Caterpillar Motoren Gmbh & Co. Kg; Kiel - Germany

Propellers

1x Screw propeller controllable pitch aft at 200 rpm

Shaft generator

1x 488 kVA - 390 kW

Generators

2x Main diesel generatorsets each 175 kVA - 140 kW - 222 hp

Emergency generator

1x Diesel generatorset 52 kVA - 42 kW - 68 hp

Bow thruster

1x 340 kW

Number of holds

2x Fully box

Hold 1: 27,58 x 11,47 x 9,00 m

Hold 2: 50,88 x 11,47 x 9,00 m

Cargo hold capacity

Grain/bale: 7.928 m³ - 278.042 ft³

Hold ventilation

6x Air changes per hour, basis empty holds

Both holds are fitted with dehumidifier system

Number of hatches

2

Hatch 1: 27,58 x 11,47 m

Hatch 2: 50,88 x 11,47 m

Hatch type

Coops & Nieborg pontoon hatches

Tank capacities

HFO: 394 m³

MGO: 45 m³

Water ballast: 2.599 m³

Fresh water: 45 m³

Manager

Wagenborg Shipping BV
Marktstraat 10
9934 CK Delfzijl
The Netherlands

Owner

C.V. Isis, Delfzijl
Groningen
The Netherlands

Latest data adjustment

06 December 2018
