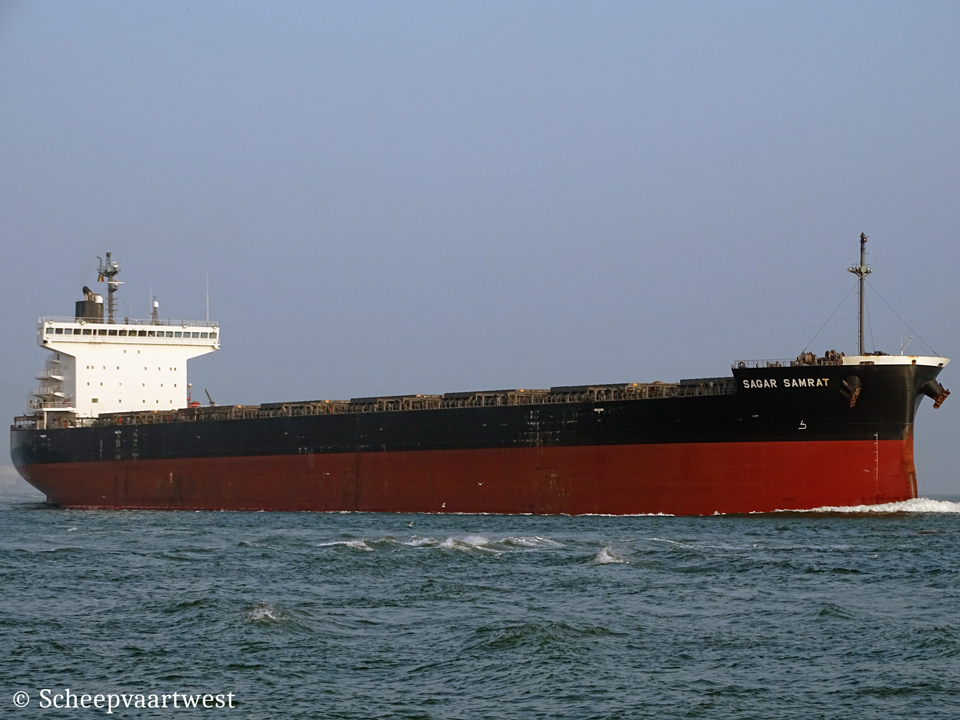

Sagar Samrat 01

Westerschelde 25 September 2017



Name

SAGAR SAMRAT

Type

Bulk carrier - Strengthened for heavy cargo loading - Panamax

IMO-number

9727041

Call sign

9V3247

Flag

Republic of Singapore

Port of registry

Singapore City

GT

41.010 t registered

DWT

Summer: 76.404 t

NT

25.819 t registered

Length

224,99 m overall

Breadth

32,26 m moulded

Draught

Max: 17,0 knots

Service: 14,43 m

Moulded L x B x D

220,00 x 32,26 x 19,79 m

Registered L x B x D

220,16 x 32,26 x 19,79 m

Freeboard

Summer: 5.423 mm

Depth

19,79 m moulded

Speed

14,5 knots

Built

2015

Keel laid

06/10/2014

Launch date

09/01/2015

Date of completion

17/02/2015

Builder

Oshima shipbuilding Co., Ltd.

Yard number

10714

Hull material

Steel

Hull type

Double hull

Main engine

1x 2 stroke single acting 6 cylinder 600 x 2.400 mm combustion engine 12.000 kW at 99,0 rpm

Manufacturer: Kawasaki Heavy Industries, Ltd.

Propeller shaft

1x Oil lubrication shaft without monitoring device

Diameter: 650 mm

Propellers

1

Boilers

1x Auxiliary vertical boiler - 6,9 bar

Evaporation: 2,61 t/h

Manufacturer: Alfa Laval Qingdao Ltd.

Generators

4x Generators total 2.264 kVA

Number of holds

7

Cargo hold capacity

Bale: 89.462 m³

Grain: 91.449 m³

Number of hatches

7

Tank capacities

Fuel oil: 2.739 m³

Fresh water: 395 m³

Manager

Tata Nyk Shipping Pte Ltd.

Registered owner

Tata Nyk Shipping Pte Ltd.

Latest data adjustment

13 November 2018
