Antwerpen 16 October 2018 |
|
Name |

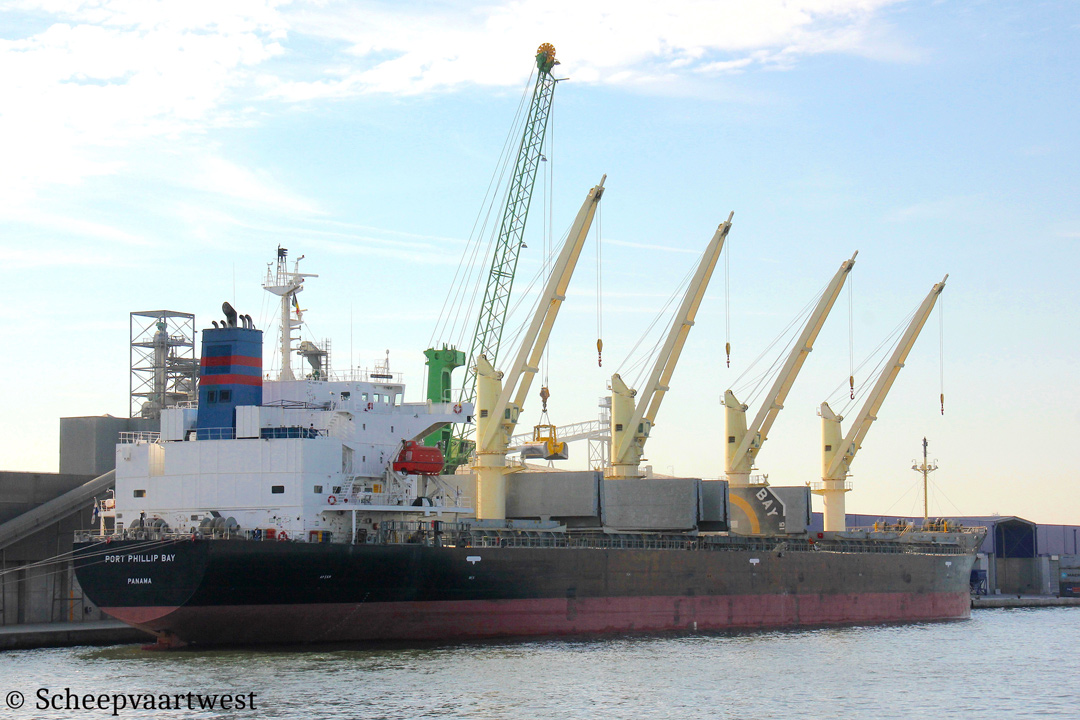

PORT PHILLIP BAY |
|
Type |
Bulk carrier - Strengthened for heavy cargo loading |
|
IMO-number |
9687148 |
|
Call sign |
3EJN7 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
22.385 t registered |
|
DWT |
Summer: 37.614 t |
|
NT |
12.178 t registered |
|
Length |
179,99 m overall |
|
Breadth |
30,00 m moulded |
|
Draught |
Max: 10,33 m |
|
Moulded L x B x D |
175,60 x 30,00 x 14,63 m |
|
Registered L x B x D |
175,77 x 30,00 x 14,63 m |
|
Freeboard |
Summer: 4.352 mm |
|
Depth |
14,63 m moulded |
|
Speed |
Max: 14,5 knots |
|
Built |
2015 |
|
Keel laid |
05/06/2015 |
|
Launch date |
19/07/2015 |
|
Date of completion |
21/08/2015 |
|
Builder |
Oshima Shipbuilding Co., Ltd. |
|
Yard number |
10710 |
|
Hull material |
Steel |
|
Hull type |
Double hull construction applied to all cargo holds |
|
Main engine |
1x 2 stroke single acting 5 cylinder 500 x 2.000 mm combustion engine 5.650 kW at 108,0 rpm Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 420 mm |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 6,9 bar Evaporation: 1,82 t/h Manufacturer: Miura Co., Ltd. |
|
Generators |
4x Generators - 1.975 kVA |
|
Cargo hold capacity |
Bale: 46.436 m³ Grain: 46.834 m³ |
|
Tank capacities |
Fuel oil: 1.521,7 m³ Fresh water: 256,7 m³ |
|
Manager |
Orix Maritime Corp. |
|
Registered owner |
Equator Shipping Inc. |
|
Latest data adjustment |
03 November 2018 |
