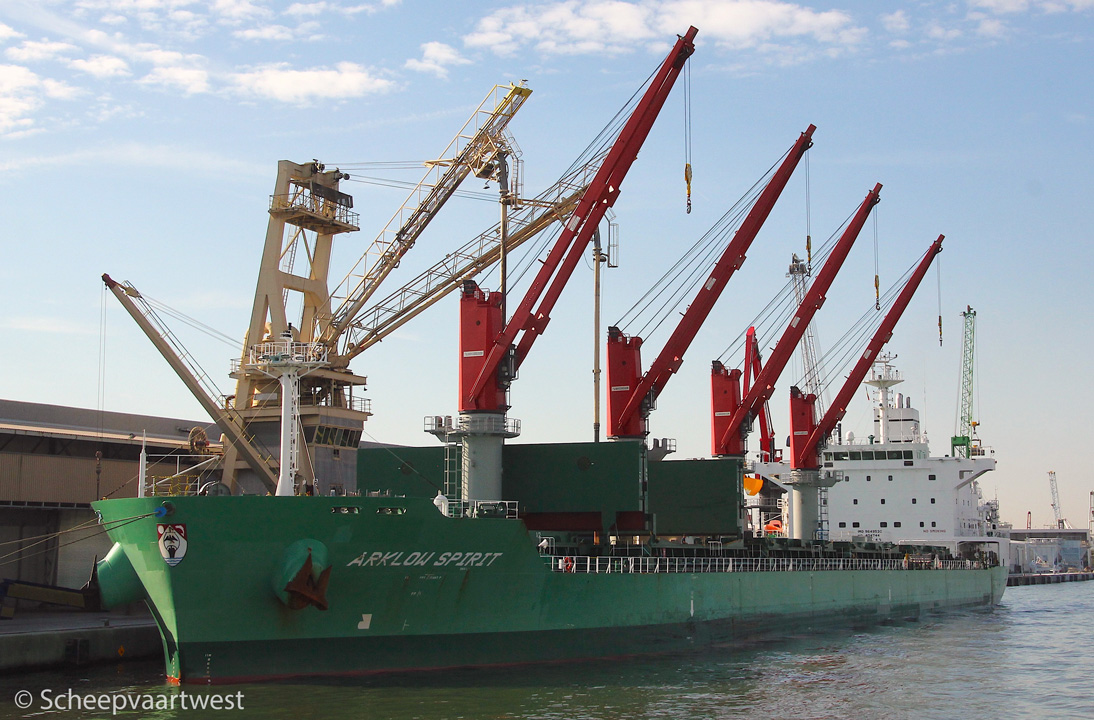

Arklow Spirit 02

Antwerpen 16 October 2018

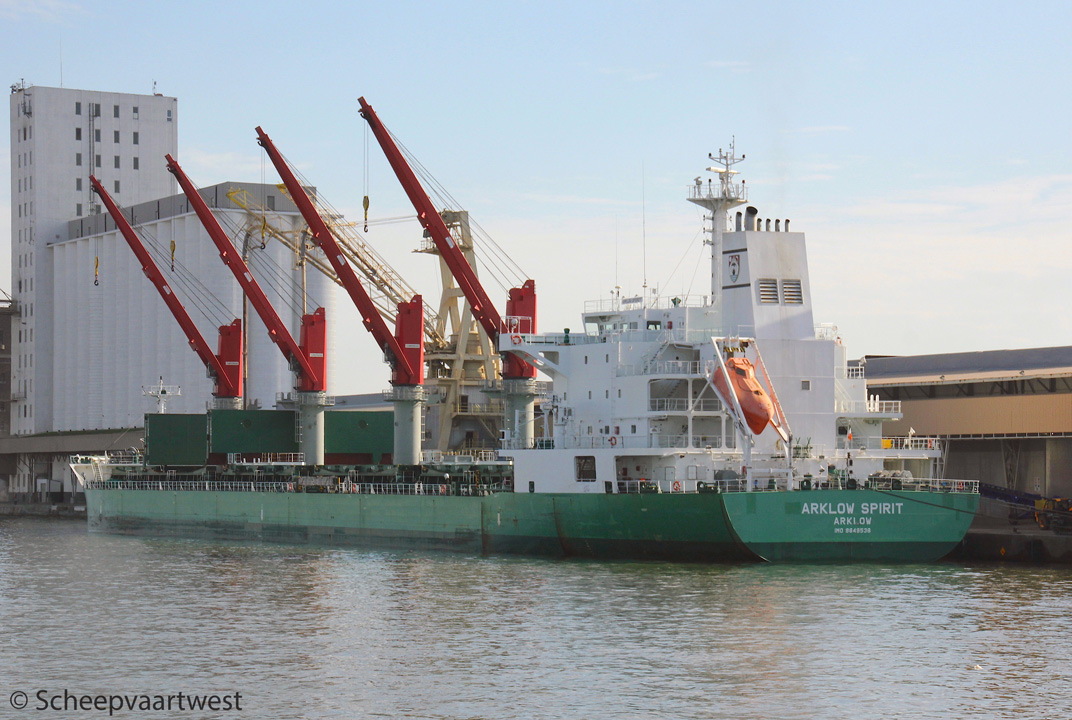

Arklow Spirit 01
Antwerpen 16/10/18



Name

ARKLOW SPIRIT

Type

Bulk carrier

IMO-number

9649536

Call sign

EIOF4

Flag

Ireland

Port of registry

Arklow

GT

22.868 t

Suez: 23.405 t

DWT

Summer: 34.905 t

Winter: 33.905 t

NT

11.648 t

Panama: 19.054 t

Suez: 20.130 t

Length

182,00 m overall

177,52 m between perpendiculars

Breadth

30,00 m moulded

Draught

Summer: 10,00 m

Winter: 9,80 m

Air draft

Min: 36,70 m

Freeboard

4.629 t

Depth

14,60 m moulded

Speed

Max: 14,0 knots

Built

2013

Date of completion

12/12/2013

Builder

Daesun Shipbuilding & Engineering Co. Ltd.
Pusan
South Korea

Yard number

SB548

Hull material

Steel

Watertight compartments

8

Continuous decks

1

Main engine

1x MAN B&W 5S50ME - 2 stroke 5 cylinder 500 x 2.214 mm combustion engine 6.050 kW / 8.220 hp at 99,0 rpm

Built: 17/06/2013

Builder: Hyundai Heavy Ind., Ltd., Ulsan - South Korea

Propellers

1x Screw propeller solid aft at 99,0 rpm

Boilers

1x CHO 40,00 m² - 8,0 bar
1x CHR 297,00 m² - 8,0 bar

Generators

3x Hyundai Himsen main diesel generatorsets each 806 kVA - 645 kW - 938 hp

Emergency generator

1x Diesel generatorset 200 kVA - 160 kW - 255 hp

Number of holds

5

Cargo hold capacity

Grain:

Hold 1: 7.587,3 m³- 267.930,3 ft³

Hold 2: 10.056,3 m³ - 355.118,1 ft³

Hold 3: 9.706,7 m³ - 342.772,6 ft³

Hold 4: 10.070,7 m³ - 355.626,6 ft³

Hold 5: 9.529,9 m³ - 336.529,4 ft³

Total: 46.951,0 m³ - 1.657.980,6 ft³

Bale:

Hold 1: 7.103,1 m³ - 250.831,8 ft³

Hold 2: 9.648,47 m³ - 340.716,4 ft³

Hold 3: 9.334,8 m³ - 329.639,8 ft³

Hold 4: 9.661,4 m³ - 341.173,0 ft³

Hold 5: 9.209,7 m³ - 325.222,1 ft³

Total: 44.957,5 m³ - 1.587.584,2 ft³

Hold ventilation

Mechanical ventilation – 6 changes/h

Number of hatches

5

Hatch 1: 15,20 x 14,80 m

Hatches 2-5 20,00 x 20,40 m

Hatch type

MacGregor folding type

Max permitted loads

Tanktop: 25,0 t/m²

Tank capacities 90%

Fuel: 1.140 t

Diesel: 170 t

Fresh water 100%: 230 t

Cargo gear

4x MacGregor electric cranes - SWL 30 t each

Crew size

24

Manager

Arklow Shipping Ltd.
North Quay, Arklow
County Wicklow
Ireland

Registered owner

Arklow Spirit Ltd.

Latest data adjustment

29 October 2018
