Beaumare 02

Westerschelde 20 August 2018

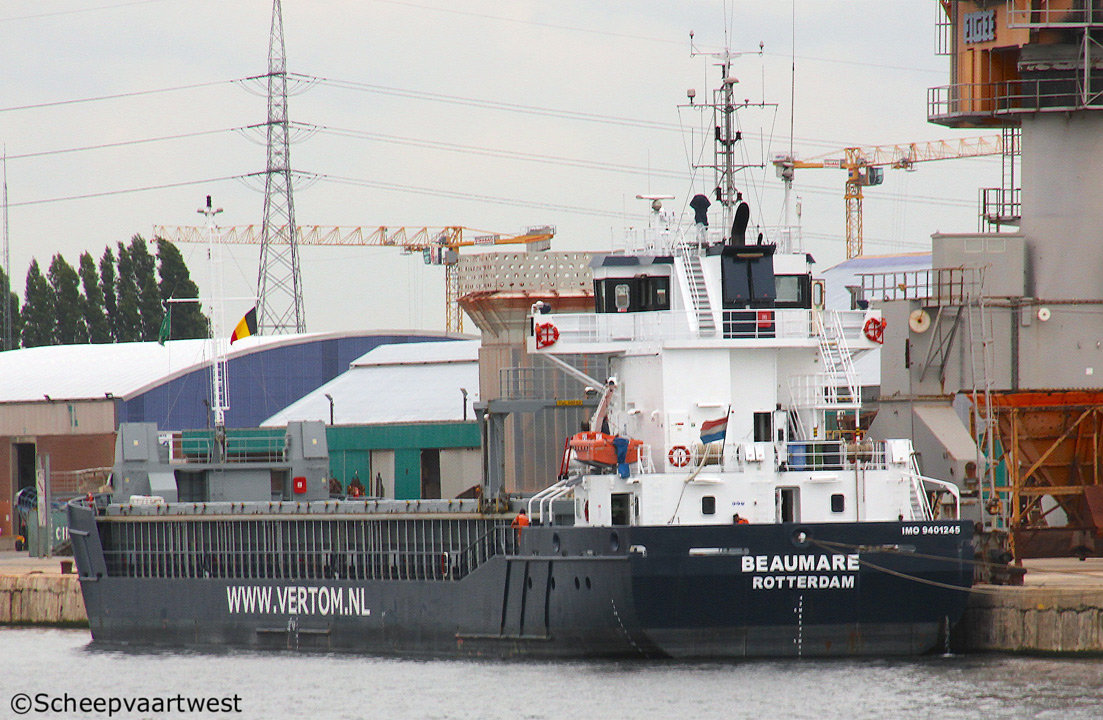

Beaumare 01
Antwerpen 18/08/18



Name

BEAUMARE

Type

General Cargo, Multi-purpose - Gearless box singledecker

Damen Combi Freighter® 3850

Basic functions

Transport of bulk, steel coils, containers, forest products, general cargo

IMO-number

9401245

Call sign

PHMW

Flag

The Netherlands

Port of registry

Rotterdam

Previous flags

2008 - 02/2016 The Netherlands, Sneek - Call sign: PHWM

GT

2.545 t

DWT

Summer: 3.810 t

DWCC

Summer: 3.600 t

Winter: 3.500 t

NT

1.460 t

Number of 20ft containers

In hold: 188

On deck: 80

Total: 188

Length

88,60 m overall

84,99 m between perpendiculars

Breadth

12,50 m moulded

Draught

Summer: 5,42 m

Winter: 5,28 m

3,20 m ballast

Air draft - keel to mast

27,40 m

Depth

7,00 m moulded

Speed

12,3 knots

Built

2008

Keel laid

15/09/2006

Launch date

12/09/2007

Date of completion

28/01/2008

Builder casco

Brodogradiliste Sava D.D.
Mitrovica
Serbia

Builder completion

Damen Shipyards Bergum
Bergum
The Netherlands

Yard number

9369

Hull material

Steel

Hull type

Single hull

Movable bulkheads

2x Grain bulkheads in 9 positions

Continuous decks

1

Main engine

1x MaK 8M20 - 4 stroke single acting 9 cylinder 200 x 300 mm combustion engine 1.520 kW at 1.000 rpm

Manufacturer: M.A.K. Caterpillar Motoren G.m.b.H., Kiel - Germany

Propellers

1x Controllable pitch propeller - diameter: 2.600 mm

Shaft generator

1x 330 kVA

Generators

1x Sisu diesel generatorset 175 kVA

Emergency generator

1x Sisu emergency/harbour generatorset 77 kVA

Compressed air receivers

2x Starting air compressors

Bow thruster

1x Electrically driven fixed pitch propeller 220 kW

Number of holds

1

62,52 x 10,10 x 8,43 m

Cargo hold capacity

185.331 ft³ / 5.250 m³

Hold ventilation

4x Air changes hour

Max permitted loads

Tanktop: 15,0 t/m²

Hatch cover: 1,6 t/m²

Hatch cover type

10 Pontoon hatch covers

Tank capacities

Fuel oil: 156 m³

Gas oil: 55 m³

Lub oil: 8,50 m³

Dirty oil: 6,0 m³

Sludge: 6,0 m³

Sewage: 12,0 m³

Potable water: 55 m³

Ballast water: 1.375 m³

Lifting equipment

1x Gantry crane for pontoons

Accommodation

For captain and crew for a total of 8 persons with heating, ventilation and air-conditioning

Deck lay-out and equipment

1x Elec. driven bow anchor winch with two warping heads

1x Elec. driven capstan aft

Rudder, fishtail type

Container fittings in tank top and on hatch covers

Lashing eyes in hold and lashing bollards on outside of coaming

Manager

Focus Shipmanagement B.V.
Sneek
The Netherlands

Previous managers

01/2008 - 02/2014 Unisea Shipping B.V., Sneek - The Netherlands

02/2014 - 10/2014 Vertom Scheepvaart- en Handelmaatschappij B.V., Rotterdam - The Netherlands

Operator

Vertom UCS Holding BV
Oever 7
3161 GR Rhoon
The Netherlands

Owner

Vertom UCS Beaumare B.V.
Rotterdam
The Netherlands

Previous owners

01/2008 - 02/2014 Beaumare B.V., Sneek - The Netherlands

Latest data adjustment

05 September 2018
