Westerschelde 02 November 2017 |
 |
|
| Westerschelde 16/08/15 | |
|
Name |

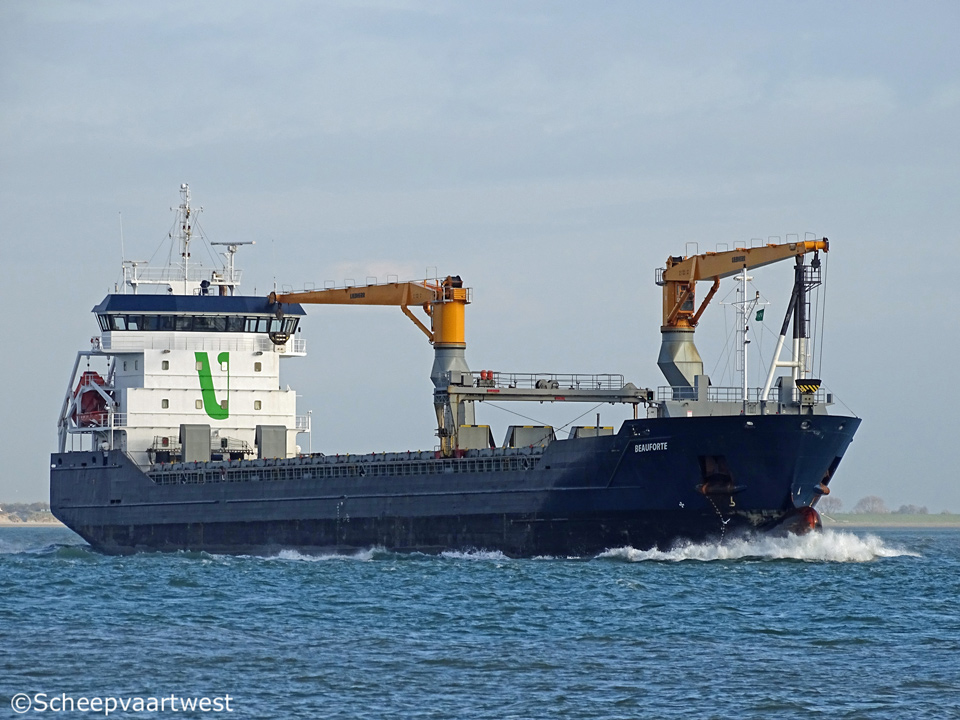

BEAUFORTE |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo Geared multi-purpose single/tween deck boxshaped |
|
IMO-number |
9532812 |
|
Call sign |
PCKN |
|
Flag |
The Netherlands |
|
Port of registry |
Rotterdam |
|
Previous flags |
05/2001 - 02/2016 The Netherlands, Sneek - Call sign: PCKN |
|
GT |
5.425 t |
|
DWT |
Summer: 8.531 t |
|
DWCC |
Summer: 8.273 t Winter: 8.009 t |
|
NT |
2.949 t |
|
Number of 20ft containers |
In hold: 156 On deck: 165 Total: 321 |
|
Length |
118,14 m overall 112,29 m between perpendiculars |
|
Breadth |
16,13 m extreme 15,90 m moulded |
|
Draught |
Max: 7,21 m |
|
Air draft |
28,50 m |
|
Depth |
8,80 m moulded |
|
Speed |
13,4 knots |
|
Built |
2011 |
|
Keel laid |
18/09/2008 |
|
Launch date |
04/08/2010 |
|
Date of completion |
26/05/2011 |
|
Builder casco |
ATVT Sudnobudivinyi Zavod Zaliv Kerch Ukraine |
|
Builder completion |
Damen Shipyards Bergum Bergum The Netherlands |
|
Yard number |
9423 |
|
Hull material |
Steel |
|
Movable bulkheads |
Grain bulkhead 10 positions |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 9M25C - 4 stroke single acting 9 cylinder 255 x 400 mm combustion engine 2.970 kW / 4.147 bhp Manufacturer: Caterpillar Motoren GmbH & Co. KG |
|
Propellers |
1x Controllable pitch propeller |
|
Shaft generator |
1x Stamford 534E |
|
Generators |
2x Scania DI12 main diesel generatorsets |
|
Emergency generator |
1x Sisu 620 SRG diesel generatorset |
|
Bow thruster |
1x 300 kW |
|
Number of holds |
2 Hold 1: 32,66 x 13,20 x 9,70 m Hold 2: 51,12 x 13,20 x 9,70 m |
|
Cargo hold capacity |
Grain: 10.510 m³ / 371.544 ft³ |
|
Cargo hold ventilation |
10x Air-changes per hour |
|
Number of hatches |
2 Hatch 1: 32,66 x 13,20 m Hatch 2: 51,12 x 13,20 m |
|
Hatch covers |
13x Pontoon |
|
Max permitted loads |
Tanktop: 17,0 t/m² Hatch cover: 1,6 t/m² |
|
Tank capacities |
Ballast: 2.945 m³ |
|
Anchor equipment |
Length: 495,00 m Diameter: 44 mm |
|
Lifting equipment |
1x Gantry crane |
|
Cargo gear |
2x Liebherr cranes - SWL 40,0 t each |
|
Manager |
Focus Shipmanagement B.V. Alexanderstraat 2-1 8606 VP Sneek The Netherlands |
|
Previous managers |
05/2011 - 02/2014 Unisea Shipping B.V., Sneek - The Netherlands |
|
Operator |
Vertom-Bojen Bereederungs GmbH & Co. KG |
|
Registered owner |
Beauforte B.V. Rotterdam The Netherlands |
|
Shareholder |
Vertom Shipping & Trading B.V. |
|
Previous owner |
05/2011 - 02/2016 Beauforte C.V., Sneek - The Netherlands |
|
Renamed |
12/2021 Beautranga The Netherlands, Rotterdam - Call sign: PCKN Owner: Vertom Beautranga B.V., Rhoon - The Netherlands Manager: Vertom Shipping & Trading B.V., Rhoon - The Netherlands |
|
Latest data adjustment |
16 February 2023 |
