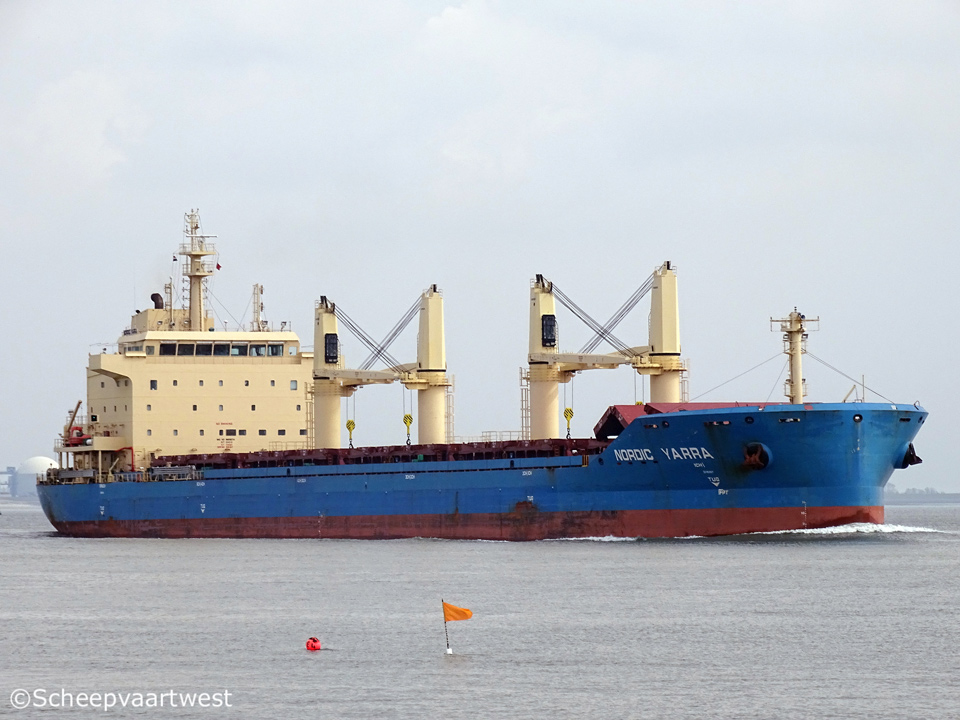

Nordic Yarra - IMO 9689574

Westerschelde 31 February 2016

Name

NORDIC YARRA

Previous names

2014 -2014 Nordic Guangzhou

Type

Bulk carrier - Handysize

IMO-number

9689574

Call sign

D5LF6

Flag

Liberia

Port of registry

Monrovia

Previous flags

2014 - 2016 Isle of man - United Kingdom, Douglas - Call sign: 2HNG4

GT

24.212 t

DWT

Summer: 37.500 t

NT

12.860 t

Length

180,00 m overall

176,75 m between perpendiculars

Breadth

30,00 m

Draught

10,64 m

Freeboard

4.080 mm

Speed

14,0 knots

Built

2014

Date of completion

26/06/2014

Builder

Yangzhou Guoyu Shipbuilding Co., Ltd.
Yizheng
China

Yard number

GY206

Hull material

Steel

Hull type

Single hull

Watertight bulkheads

9

Continuous decks

1

Main engine

1x QMD Wärtsilä 5RT-FLEX50D - 2 stroke 5 cylinder 500 x 1.050 mm combustion engine 6.350 kW / 8.628 hp at 99 rpm

Built: 16/12/2013

Manufacturer: Qingdao Qiyao Wartsila MHI Linshan Marine Diesel C, Qingdao - China

Propellers

1x Screw propeller solid - aft at 99 rpm

Boilers

1x CHR Jiangyin - CHN 40,00 m² - 7,0 bar
1x CHM QIngdao - CHN 263,00 m² - 7,0 bar

Generators

3x Main diesel generatorsets 750 kVA - 600 kW - 883 hp

Emergency generator

1x Diesel generatorset 150 kVA - 120 kW - 190 hp

Number of cargo holds

5

Total capacity of holds

Grain: 46.730 m³

Bale: 45.684 m³

Tank capacities

Diesel Oil: 163,3 m³
Freshwater: 492,5 m³
Fuel Oil: 1.736,1 m³
Lube Oil: 101,9 m³
Tank Ballast: 12.952,1 m³

Lifting equipment

1x Engine room crane - SWL 3,0 t SWL
1x Provision crane port - SWL 4,0 tt

Manufacturer: Jiangsu Jiaoyan Marine Equipment Co., Ltd.

Cargo gear

4x Deck cranes - SWL 30,0 t each

Manufacturer: Wuhan Marine Machinery Plant Co., LTD.

Crew size

25

Manager

Nordic Hamburg Shipmanagement GmbH & Co., KG
Hamburg
Germany

Owner

Nordic Guangzhou Schifffahrtsgesellschaft mbH & Co. KG
Cremon 32

20457 Hamburg
Germany

Latest data adjustment

18 June 2018
