RMS Duisburg IMO 9194309 03

Westerschelde 17 May 2019

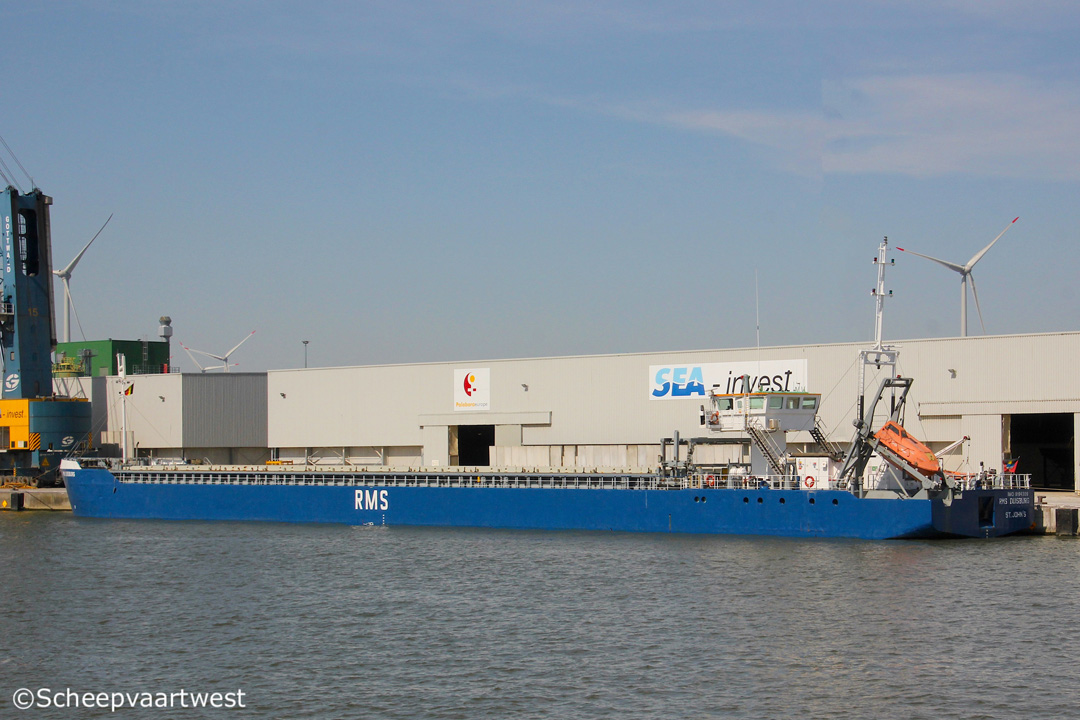

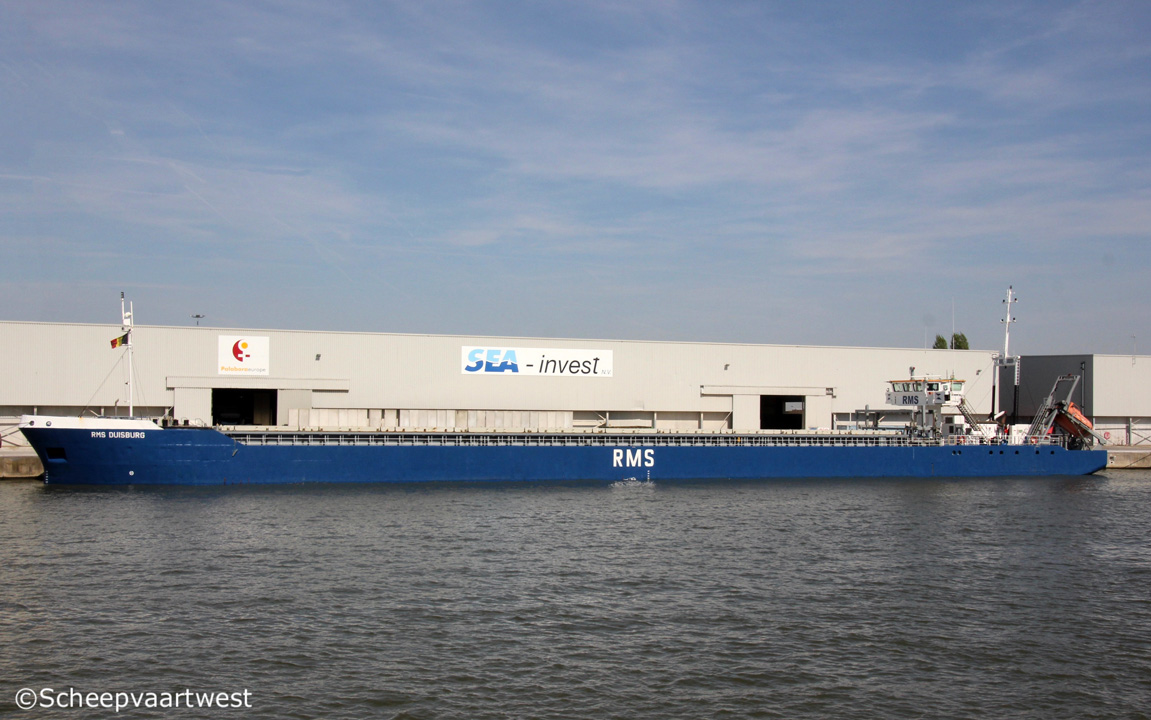

RMS Duisburg 01   RMS Duisburg 02
Antwerpen 19/04/18   Antwerpen 19/04/18


Name

RMS DUISBURG

Previous names

1999 Build as: Moseldiep

03/1999 - 04/2006 Cpt L’Alexandre

Type

General cargo ship - Equipped for carriage of containers - SID fully Box / Sea-Rivergoing vessel

IMO-number

9194309

Call sign

D5ZW6

Flag

Liberia

Port of registry

Monrovia

Previous flag

1999 - 2006 The Netherlands, Groningen - Call sign: PFAL

2006 2021 Antigua & Barbuda, St. John’s - Call sign: V2DW2

GT

2.042 t

DWT

Summer: 2.287 t

DWCC

Summer & winter: 2.100 t

NT

612 t

Number of 20ft containers

In hold; 60

On deck: 30

Total: 90

Length

99,90 m overall

96,00 m between perpendiculars

Breadth

11,47 m extreme

Draught

Max: 3,36 m

Ballast: 3,20 m

Air draft

5,10 m

Depth

6,10 m moulded

Speed

10,5 knots

Built

1999

Keel laid

15/07/1998

Launch date

08/11/1998

Delivery date

06/03/1999

Builder casco

Societatea Comerciala Severnav S.A.,

Drobeta-Turnu Severin

Romania

Yard number: 61007

Builder completion

Schiffswerft Schlömer GmbH & Co. KG

Oldersum

Germany

Yard number: 603

Hull material

Steel

Watertight bulkheads

4

Movable bulkheads

1x (5 positions)

Continuous decks

1

Main engine

1x MaK 6M20 - 4 stroke single acting 6 cylinder 200 x 300 mm combustion engine 1.140 kW / 1.550 hp at 1.000 rpm

Starter type: Compressed air

Built: 1998

Builder: MaK Motoren GmbH & Co., KG, Kiel - Germany

Propellers

1x Fixed pitch propeller - aft at 340 rpm

Diameter: 1.950 mm

Generators

2x Deutz 620 DSC main diesel generatorsets each 96 kW / 120 kVA

Emergency generator

1x Deutz 320 DSC diesel generatorset 40 kW / 60 kVA

Compressed air receivers

2x Each 250 litres - 30,0 bar

Bow thruster

1x 205 kW

Number of holds

1

65,40 x 8,50 x 6,10 m

Cargo hold capacity

118.101 ft³ / 3.344,25 m³ grain (with bulkhead aboard)

113.600 ft³ / 3.216,79 m³grain (bulkhead in parking position)

Hold ventilation

6x Air changes/h

Number of hatches

1

61,78 x 8,50 m

Hatch cover type

Steel pontoon covers

Max permitted loads

Tanktop: 15,0 t/m²

Hatch covers: 1,6 t/m²

Tank capacities

Ballast water: 2.185 m³

Potable Water: 50 m³

Fuel: 200 m³

Lubricating Oil: 15 m³

Dirty Oil: 2,6 m³

Sludge: 3,5 m³

Anchor equipment

3x each 1.440 kg

Length: 412,50 m

Diameter: 34 mm

Lifting equipment

1x Gantry crane

ISM & commercial manager

Bulkers Marine Ltd.

49, Methonis Street

185 45 Piraeus

Greece

Previous manager

03/1999 - 04/2006 Feederlines B.V., Groningen - The Netherlands

04/2006 - 02/2021Rhenus Maritime Services G.m.b.H., Duisburg - Germany

Registered owner

Duisburg Shipping S.A.

Care of Bulkers Marine Ltd.

49, Methonis Street

185 45 Piraeus

Greece

Previous names & owners

  • 03/1999 - 04/2006 Cpt L'Alexandre - ms Moseldiep C.V., Groningen, for 5 years in charter at Riss Transport, Ilonge

  • 04/2006 - 02/2019 - RMS Duisburg - BWK Schiffinvest GmbH & Co. KG MS "RMS DUISBURG" (Rhein- Maas- und See- Schiffahrtskontor GmbH), Duisburg - Germany

  • 02/2019 - 02/2021 - RMS Duisburg - Rhenus Maritime Services G.m.b.H., Duisburg - Germany

Latest data adjustment

28 October 2023
