Antwerpen 06 April 2018 |
|
Name |

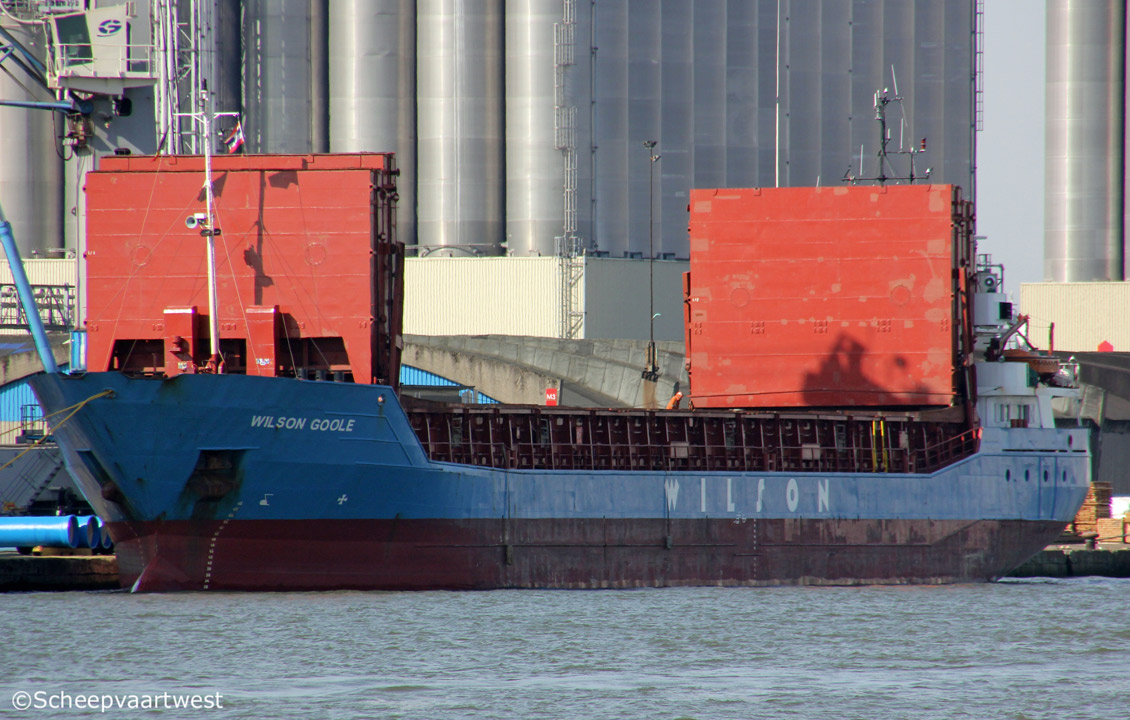

WILSON GOOLE |
|
Previous names |
1995 - 06/2002 Northern Loftnes |
|
Type |
General cargo ship - heavycargo - Containership |
|
IMO-number |
9126687 |
|
Call sign |
9HSC4 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
Previous flags |
2014 - 2015 Germany |
|
GT |
2.446 t |
|
DWT |
Summer: 3.704 t Winter: 3.588 t |
|
NT |
1.369 t |
|
Number of 20ft containers |
In hold: 108 On deck: 69 Total: 177 |
|
Length |
87,90 m overall 82,10 m between perpendiculars |
|
Breadth |
12,80 m |
|
Draught |
Summer: 5,51 m Winter: 5,40 m |
|
Keel to top antenna fwd/aft |
20,32 / 26,63 m 12,83 / 16,80 m lowered mast |
|
Air draft |
Max: 19,00 m |
|
Freeboard |
1.615 mm |
|
Depth |
7,10 m moulded |
|
Speed |
11,7 knots |
|
Built |
1995 |
|
Keel laid |
29/09/1994 |
|
Launch date |
18/04/1995 |
|
Date of completion |
20/07/1995 |
|
Builder |
Slovenske Lodenice AS |
|
Yard number |
2926 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Watertight compartments |
4 |
|
Movable bulkheads |
2x Moveable bulkheads, full hold height, 10 positions |
|
Continuous decks |
1 |
|
Main engine |
1x Deutz SBV 8M628 - 4 stroke 8 cylinder 240 x 280 mm combustion engine 1.500 kW / 2.029 hp at 900 rpm Manufacturer: Deutz MWM Motoren-Werke Mannheim AG - Germany |
|
Propellers |
1x Screw propeller solid - aft at 227 rpm |
|
Electric installations |
Power voltage: 380 V Lighting voltage: 220 V Frequency: 50 Hz |
|
Generators |
3x MAN main diesel generatorsets each 130 kVA - 104 kW - 156 hp |
|
Emergency generator |
1x Deutz F6L912 diesel generatorset 49 kVA - 39 kW - 64 hp |
|
Bow thruster |
1x Jastram BU40 - 185 kW |
|
Number of holds |
1 56,55 x 10,20 x 8,15 m |
|
Total capacity of holds |
Bale: 4.620 m³ / 163.154 ft³ Grain: 4.650 m³ / 164.213 m³ |
|
Number of hatches |
1 56,50 x 10,20 m |
|
Max permitted loads |
Deck/hatch cover: 1,56 t/m² Tanktop: 15,0 t/m² |
|
Hatch type |
Kvaerner Multifold Crocodile |
|
Tank capacities |
Water ballast: 1.648 m³ MGO: 199 m³ |
|
Crew size |
9 |
|
Manager |
Wilson Ship Management AS |
|
Owner |
Wilson Shipowning AS N-5835 Bergen |
|
Previous names & owners |
1995 - 2002 Northern Loftnes - Margo Shipping Co. Ltd., Valletta - Malta |
|
Latest data adjustment |
04 May 2018 |
