Antwerpen 06 April 2018 |
 |
| Antwerpen 06/04/18 |
|
Name |

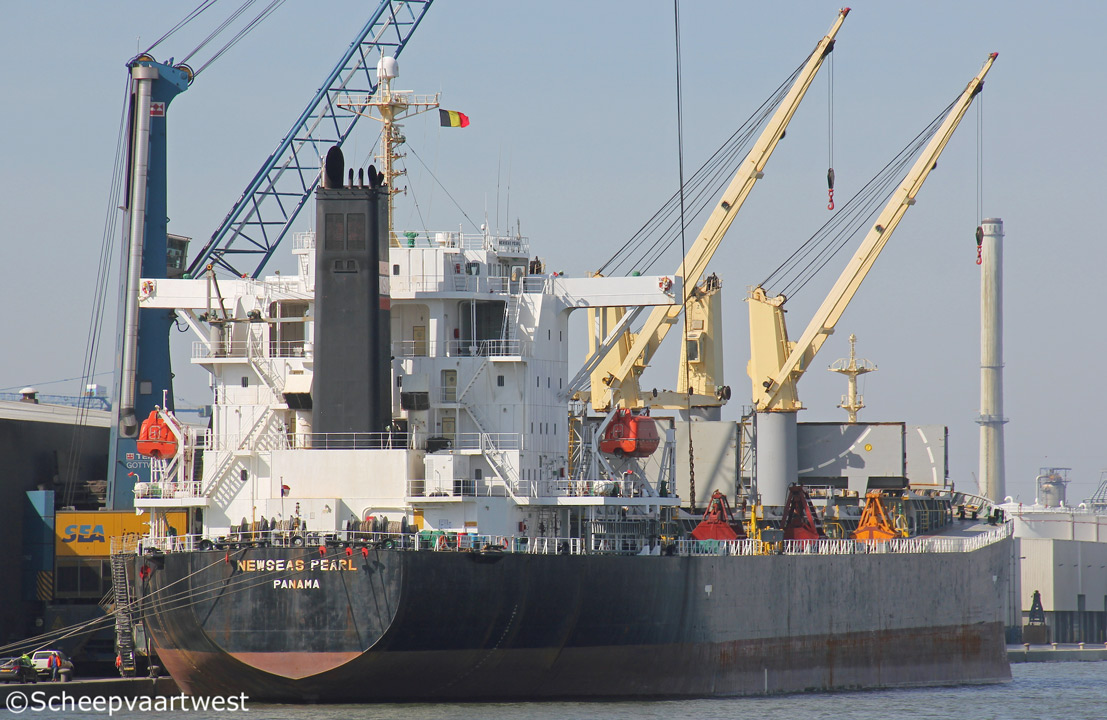

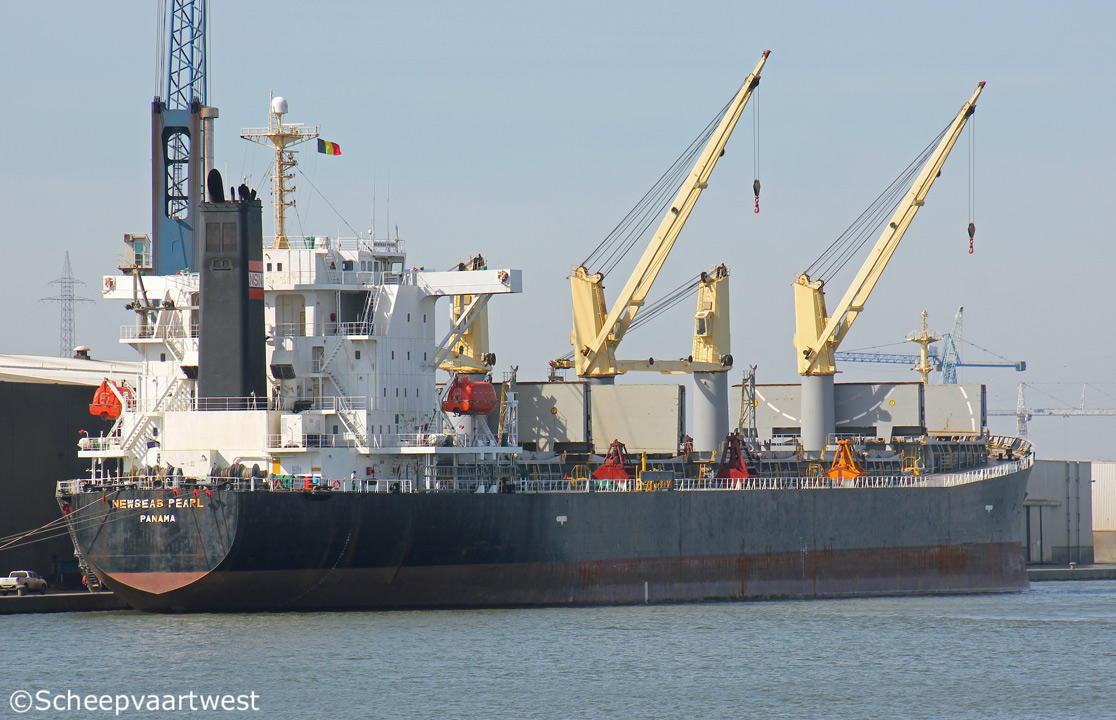

NEWSEAS PEARL |
|
Previous names |
2001 - 04/2010 Furness Timika |
|
Type |
Bulk carrier - Strengthened for heavy cargoes |
|
IMO-number |
9249908 |
|
Call sign |
H9JR |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
29.862 t |
|
DWT |
Summer: 52.508 t |
|
NT |
18.011 t |
|
Length |
189,99 m overall 182,00 m between perpendiculars |
|
Breadth |
32,26 m moulded |
|
Draught |
11,20 m |
|
Freeboard |
5.018 mm |
|
Depth |
17,00 m moulded |
|
Speed |
Service: 14,0 knots Max: 16,8 knots |
|
Built |
2001 |
|
Keel laid |
15/01/2001 |
|
Date of completion |
26/07/2001 |
|
Builder |
Shin Kurushima Dockyard Co.,Ltd. |
|
Yard number |
5127 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Bulkheads |
7 |
|
Continuous decks |
1 |
|
Main engine |
1x Mitsubishi 6UEC 50LS - 6 cylinder 500 x 1.950 mm combustion engine 8.250 kW at 124,0 rpm Built: 01/02/2001 Manufacturer: Kobe Diesel Co, Ltd. |
|
Propellers |
1 |
|
Generators |
3x FE40B-8 main diesel generatorsets each 400 kW - 450 Volt |
|
Number of cargo holds |
5 |
|
Cargo hold capacity |
Grain / Bale: No.1: 13.601,21 / 13.008,93 m³ No.2: 14.080,04 / 13.494,79 m³ No.3: 13.026,89 / 12.490,58 m³ No.4: 14.313,96 / 13.742,41 m³ No.5: 13.236,77 / 12.879,88 m³ Total: 68.258,87 / 65.656,59 m³ |
|
Number of hatches |
5 Hatch 1: 16,80 x 17,60 m Hatches 2-5: 20,00 x 17,60 m |
|
Tank capacities |
Ballast: 28.019 m³ |
|
Lifting equipment |
1x Crane - SWL 3,0 t |
|
Cargo gear |
4x Cranes - SWL 30,5 t each |
|
Operator |
Orient International (Holding) Shanghai Newseas Navigation Corp. |
|
Owner |
New Haihung Navigation S. A. Republic of Panama |
|
Latest data adjustment |
21 April 2018 |
