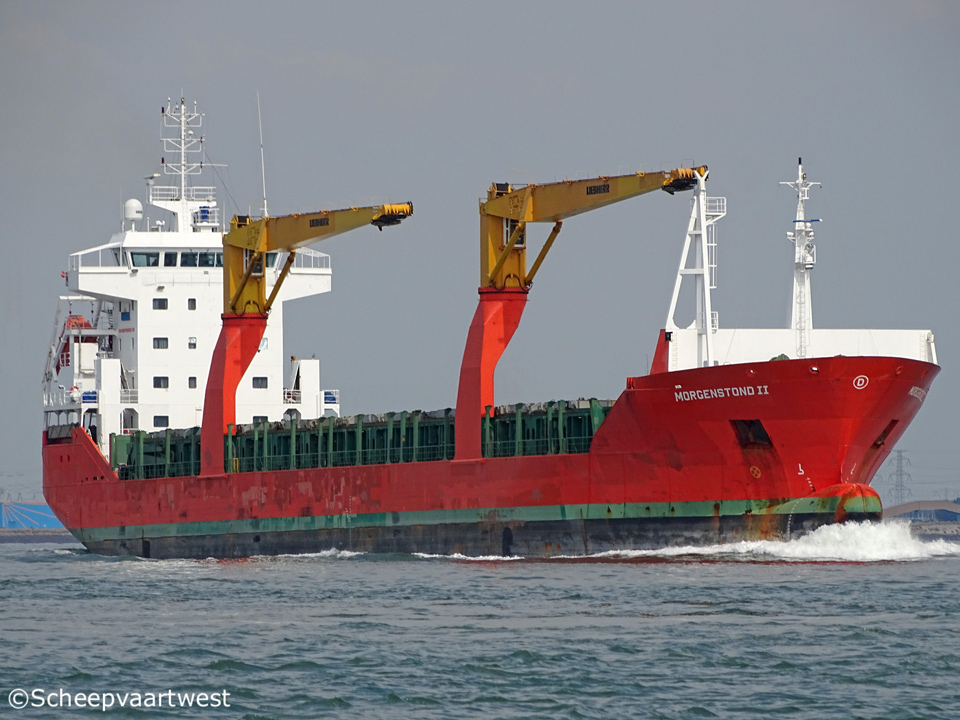

Morgenstond II 01

Westerschelde 13 July 2017



Name

MORGENSTOND II

Previous names

2007 Launch as: Morgenstond II

07/2007 - 12/2007 Beluga Legislation

12/2007 - 08/2009 Kent Legislation

08/2009 - 08/2010 Beluga Legislation

08/2010 - 06/2012 Kent Sunset

06/2012 - 03/2013 Morgenstond II

03/2013 - 03/2015 Clipper Aurora

Type

Multi-purpose general cargo ship

IMO-number

9367073

Call sign

PHJP

Flag

The Netherlands

Port of registry

Delfzijl

GT

8.999 t

DWT

Summer: 12.016 t

DWCC

Summer: 11.000 t

NT

4.585 t

Number of 20ft containers

686

Length

142,95 m overall

134,95 m between perpendiculars

Breadth

18,90 m

Draught

Summer: 7,94 m

Winter: 7,78 m

Air draft

35,00 m in ballast

Depth

10,95 m moulded

Speed

12,0 knots economic

15,5 knots max

Built

2007

Launch date

2006

Delivery date

23/03/2007

Builder

Damen Shipyards Okean
Nykolayev
Ukraine

Yard number

7401

Hull material

Steel

Continuous decks

1

Main engine

1x Mak 6M43 - 4 stroke single acting 6 cylinder combustion engine 6.000 kW at 500 rpm

Manufacturer: M.A.K. Caterpillar Motoren G.m.b.H., Kiel - Germany

Propellers

1x Controllable pitch propeller - Diameter 5.000 mm

Shaft generator

1.120 kW

Generators

3x main diesel generatorsets each 120 kW

Bow thruster

1x 730 kW

Number of holds

2

Hold 1: 40,90 x 15,80 x 10,48 m

Hold 2: 55,86 x 15,80 x 10,48 m

Cargo hold capacity

Grain/bale: 609.001 ft³ / 17.287 m³

Hold ventilation

30x Electrical fold air changes per hour basis empty holds. Both holds fitted with dehumidifier system

Number of hatches

2

Hatch 1: 40,89 x 15,80 m

Hatch 2: 55,86 x 15,80 m

Hatch type

Hydraulic Folding

Tween decks

The vessel is equipped with a full tweendeck, consisting of loose tweendeck pontoons of each

Tweendeck sizes:

Hold 1:

2 panels A type 6,93 x 15,65 m Weight abt. 30,410 tons/each

2 panels B type 5,05 x 15,65 m Weight abt. 24,062 tons/each

1 panel C type 3,71 x 15,65 m Weight abt. 17,494 tons

1 panel D type 6,72 x 10,33 m Weight abt. 20,254 tons

1 panel E type 6,16 x 5,09 m Weight abt. 10,258 tons

Total hold 1: 156,95 tons

Hold 2:

8 panels A type 6,93 x 15,65 m Weight abt. 30,410 tons/ each

Total hold 2: 243,28 tons

Tank capacities

HFO: 854 m³

MGO: 105 m³

Water ballast: 4.714 m³

Fresh water: 77 m³

Cargo gear

2x Liebherr deck cranes fixed on starboard side - each with a capacity of:

SWL 80 t at a reach of up to 14,00 m

SWL 60 t at a reach of up to 18,00 m

SWL 40 t at a reach of up to 30,00 m

SWL 30 t at a reach of up to 32,00 m

Crew size

11

Manager

Wagenborg Shipping B.V.

Delfzijl
The Netherlands

Owner

C.T. Drent Beher B.V.
Delfzijl
The Netherlands

Registered owner

C.V. Scheepvaartonderneming Morgenstond II
Delfzijl
The Netherlands

Previous names & owners

2007 Launch as: Morgenstond II - C.T. Drent Beheer B.V., Delfzijl - The Netherlands

07/2007 - 12/2007 Beluga Legislation - C.T. Drent Beheer B.V., Delfzijl - The Netherlands

12/2007 - 01/2008 Kent Legislation - C.T. Drent Beheer B.V., Delfzijl - The Netherlands

01/2008 - 08/2009 Kent Legislation - C.V. Scheepvaartonderneming Morgenstond II , Delfzijl - The Netherlands

08/2009 - 08/2010 Beluga Legislation - C.V. Scheepvaartonderneming Morgenstond II , Delfzijl - The Netherlands

08/2010 - 06/2012 Kent Sunset - C.V. Scheepvaartonderneming Morgenstond II , Delfzijl - The Netherlands

06/2012 - 03/2013 Morgenstond II - C.V. Scheepvaartonderneming Morgenstond II , Delfzijl - The Netherlands

03/2013 - 03/2015 Clipper Aurora - C.V. Scheepvaartonderneming Morgenstond II , Delfzijl - The Netherlands

Latest data adjustment

12 April 2018
