Antwerpen 06 April 2018 |
 |
| Antwerpen 06/04/18 |
|
Name |

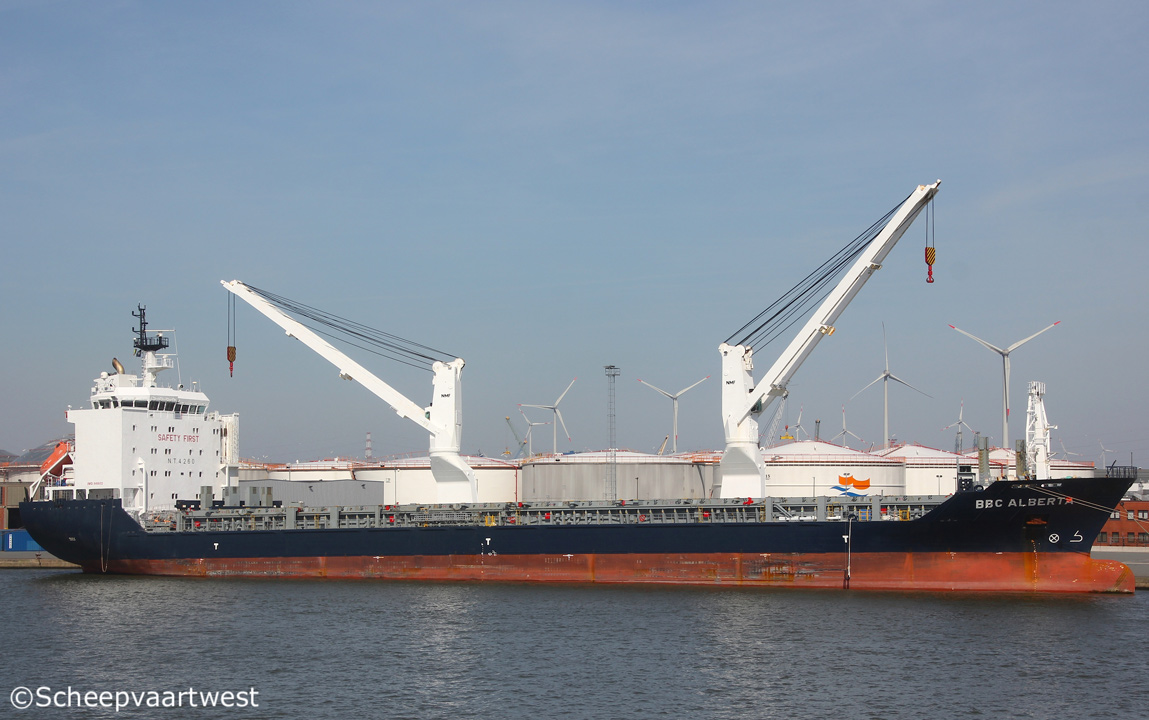

BBC ALBERTA |
|
Previous names |
2010 - 11/2010 Beluga Maturity 11/200 - 02/2011 Beluga Firmament |
|
Type |
Multi-Purpose Dry Cargo Ship - Equipped for carriage of containers - Strengthened for heavy cargo - Heavy lift vessel - Tweendecker |
|
IMO-number |
9468102 |
|
Call sign |
A8SX6 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
9.611 t |
|
DWT |
Summer: 12.655,4 t |
|
NT |
4.260 t |
|
Number of 20ft containers |
On deck: 331 In hold: 334 Total: 665 |
|
Number of 40ft containers |
On deck: 158 + 22 TEU In hold: 136 + 59 TEU Total: 294 + 81 TEU |
|
Container capacity 14t |
528 |
|
Reefer capacity |
50 reefer plugs on deck |
|
Length |
138,07 m overall 130,05 m between perpendiculars |
|
Breadth |
21,36 m extreme 21,00 m moulded |
|
Draught |
Max: 8,00 m |
|
Height above keel |
40,09 m |
|
Depth |
11,00 m |
|
Speed |
14,0 knots laden |
|
Built |
2010 |
|
Keel laid |
15/10/2008 |
|
Launch date |
29/06/2010 |
|
Date of completion |
01/11/2010 |
|
Builder |
Jiangzhou Union Shipbuilding Co., Ltd. |
|
Yard number |
JZ1019 |
|
Hull material |
Steel |
|
Main engine |
1x MaK 6M43C - 6 cylinder combustion engine output 5.400 kW |
|
Propellers |
1x Controllable pitch propeller - 4 blades |
|
Boilers |
1x Thermal oil heater, exhaust gas heated EGH650V50 1x Thermal oil heater, oil fired TOH1350H50 |
|
Generators |
3x MAN D2840 LE 301 main diesel generatorsets each 395 kW |
|
Emergency generator |
1x MAN D2866 E diesel generatorset 99 KW |
|
Bow thruster |
1x 750 kW |
|
Number of cargo holds |
3 Hold 1: 18,75 x 15,01 x 10,53 m Hold 2: 42,00 x 17,50 x 11,18 m Hold 3: 25,50 x 17,50 x 10,77 m |
|
Cargo hold capacity |
Hold 1: 2.701 m³ Hold 2: 8.362 m³ Hold 3: 4.890 m³ Total: 15.952 m³ / 563.340 ft³ |
|
Number of hatches |
3 |
|
Hatch cover type |
Steel folding |
|
Type tweendeck |
Pontoons; can be used as vertical bulkheads in holds |
|
Max permitted loads |
Tank top: 16,0 t/m² Tweendeck hold1: 2,5 t/m² Tweendeck hold 2,3: 4,0 t/m² Hatch cover: 1,75 m³ |
|
Floor space under deck |
15.952 m² / 563.340 ft² |
|
Floor space on deck |
1.480 m² / 15.931 ft² |
|
Tank capacities |
IFO: 948 m³ MGO: 150 m³ Fresh water: 147 m³ Ballast: 4.994,7 m³ |
|
Anchor equipment |
Length: 545,00 m Diameter: 52 mm |
|
Cargo gear |
2x NMF DK II port-side mounted cranes - SWL 180 t each Combinable up to 360 t Outreach: 4,00 to 33,00 m |
|
Manager |
Auerbach Bereederung GmbH & Co. KG |
|
Operator |
BBC Chartering |
|
Registered owner |
Briese Schiffahrts GmbH & Co. KG MS "MEERHAUSEN" |
|
Latest data adjustment |
16 April 2018 |
