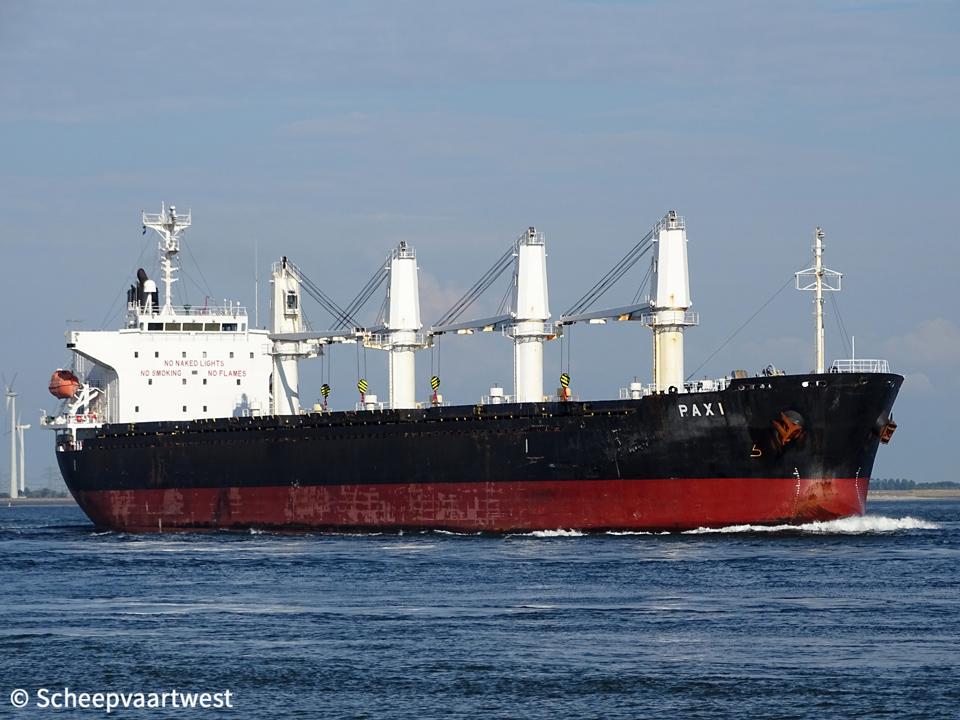

Paxi 02

Westerschelde 13 July 2018

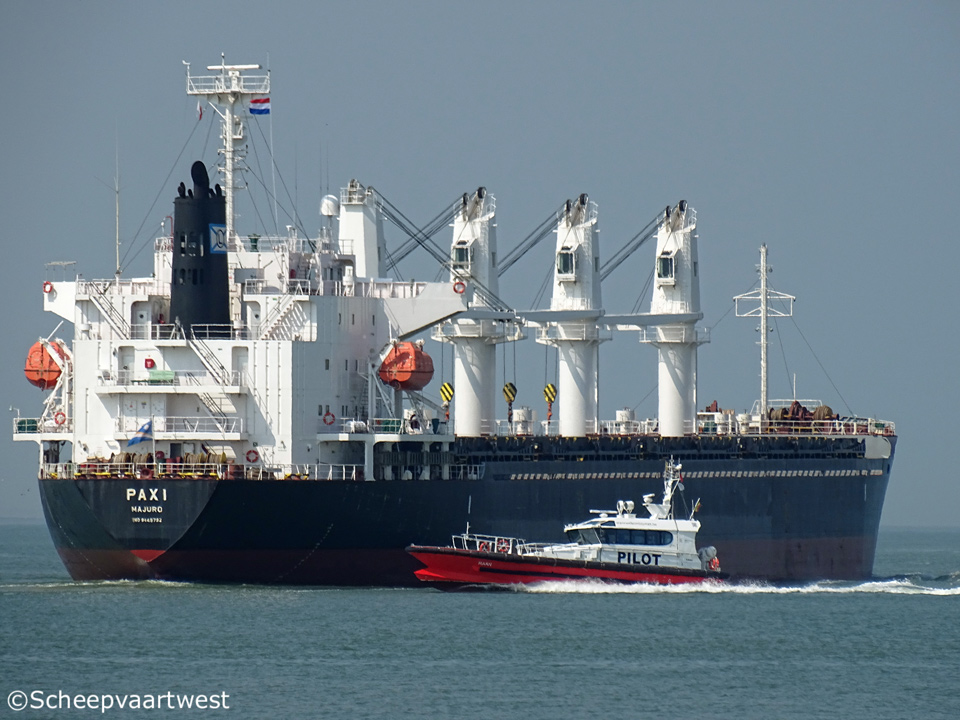

Paxi 01
Westerschelde 05/06/16



Name

PAXI

Type

Craned double-hull single-deck bulk carrier - Open-hatch, box-shaped

IMO-number

9449792

Call sign

CQIA5

Flag

Portugal

Port of registry

Madeira

Previous flags

2010 - 2017 Marshall islands, Majuro - Call sign: V7QR4

GT

18.096 t registered

DWT

Summer: 28.250 t

NT

9.649 t registered

Length

169,54 m overall

Breadth

27,20 m

Draught

9,77 m

Moulded L x B x D

160,40 x 27,20 x 13,80 m

Registered L x B x D

161,35 x 27,20 x 13,80 m

Freeboard

4.081 mm

Depth

13,80 m moulded

Speed

Max: 16,1 knots

15,5 knots laden

11,0 knots economic

Built

2006

Keel laid

23/06/2006

Launch date

29/03/2010

Date of completion

14/05/2010

Builder

Imabari Shipbuilding Co., Ltd.
imabari
Japan

Yard number

697

Hull material

Steel

Main engine

1x MAN B&W 6S42MC - 2 stroke single acting 6 cylinder 420 x 1.764 mm combustion engine 6.480 kW / 9.302 bhp at 136,0 rpm

Manufacturer: Makita Corporation

Propeller shaft

1x Oil lubrication shaft without monitoring device

Diameter: 430 mm

Propellers

1

Boilers

1 Auxiliary vertical boiler - 8,0 bar

Evaporation: 2,07 t/h

Manufacturer: Miura Co., Ltd.

Generators

3x Main diesel generatorsets each 500 kW

Emergency generator

1x Diesel generatorset 500 kW

Cargo hold capacity

Grain/bale:

Hold 1: 4.905 / 4.574 m³

Hold 2: 8.469 / 8.075 m³

Hold 3: 8.499 / 8.075 m³

Hold 4: 8.484 / 8.075 m³

Hold 5: 6.821 / 6.600 m³

Total: 37.178 m³ / 35.399 m³

Number of holds

5

Hold 1: 22,20 x Fore 7,60 m / Aft 18,24 x 12,10 m

Hold 2: 27,20 x 22.80 x 12,10 m

Hold 3: 27,20 x 22.80 x 12,10 m

Hold 4: 27,20 x 22.80 x 12,10 m

Hold 5: 23,80 x Fore 22,80 m / Aft 7,60 x 12,10 m

Number of hatches

5

Hatch 1: 12.80 x 18.24 m

Hatch 2: 20.80 x 22.80 m

Hatch 3: 20.80 x 22.80 m

Hatch 4: 20.80 x 22.80 m

Hatch 5: 17.60 x 22.80 m

Max permitted loads

Tanktop: 15 t/m²

Tank capacities

Fuel oil: 1.933 m³

Fresh water: 257 m³

Cargo gear

4x Cranes - SWL 30,0 t each

Manager

Aug. Bolten WM. Miller's Nachfolger (GmbH & CO.) KG
Mattentwiete 8
20457 Hamburg
Germany

Previous managers

Lydia Mar Shipping Co., S.A., Athens - Greece

Registered owner

MS "Paxi" Schifffahrtsgesellschaft mbH & Co. KG

Latest data adjustment

10 March 2018
