Westerschelde 07 June 2016 |
 |
| Westerschelde 07/06/16 |
|
Name |

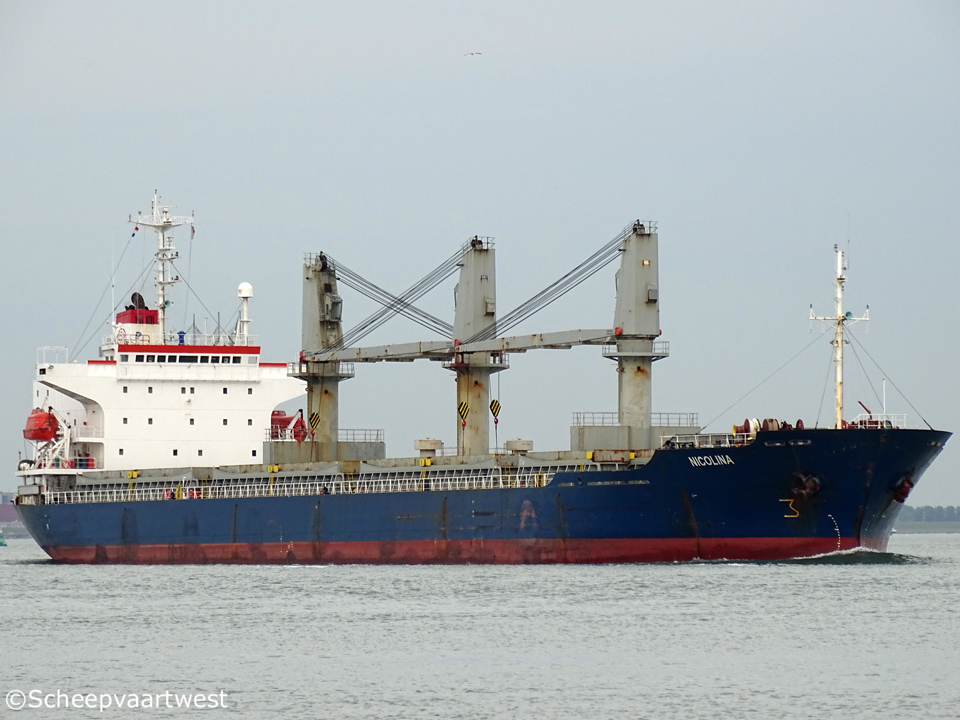

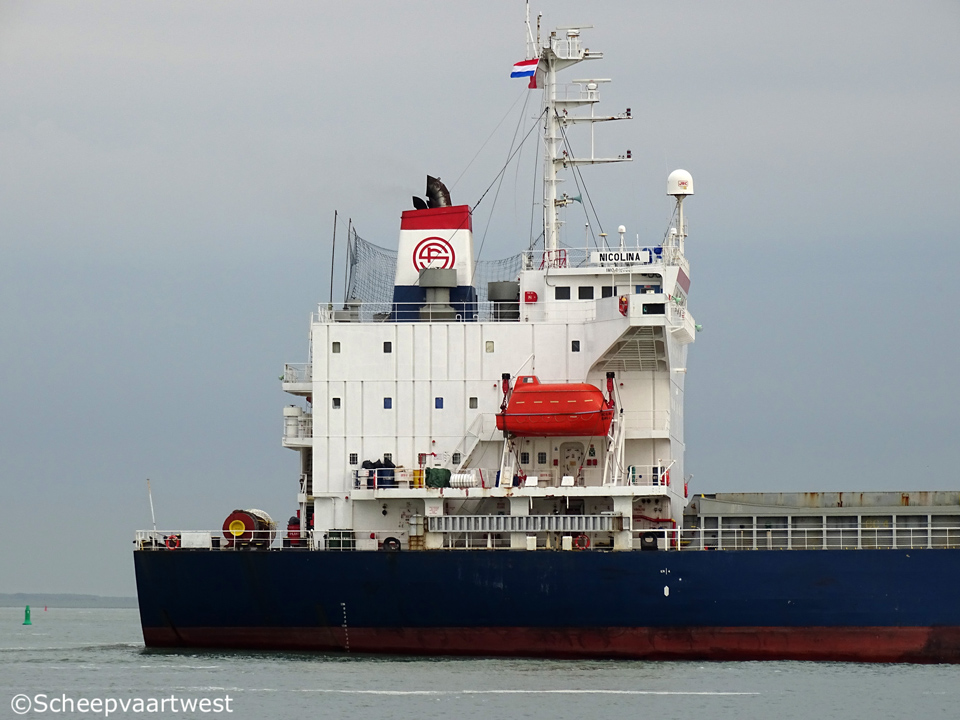

NICOLINA |
|
Previous names |
1997 - 02/2005 Arrow Ace 02/2005 - 05/2006 Lilian 05/2006 - 12/2007 Lilian G 12/2007 - 12/2014 Nikol H 12/2014 - 2017 Nicolina |
|
Type |
General cargo ship - Handsize - Single decker - Boxshaped |
|
IMO-number |
9167631 |
|
Call sign |
DUGO |
|
Flag |
Philippines |
|
Port of registry |
Manila |
|
Previous flags |
Marshall Island, Majuro |
|
GT |
15.349 t Suez: 15.688,88 t |
|
DWT |
Summer: 24.159,2 t Winter: 23.471 t |
|
NT |
8.111 t Suez: 14.000,94 t Panama: 12.781 t |
|
Length |
158,50 m overall 151,00 m between perpendiculars |
|
Breadth |
25,80 m |
|
Draught |
Summer: 9,41 m Winter: 9,22 m |
|
Air draft |
40,60 m |
|
Freeboard |
3.929 mm |
|
Depth |
13,30 m moulded |
|
Speed |
14,0 knots Max: 16,0 knots |
|
Built |
1997 |
|
Date of completion |
12/12/1997 |
|
Builder casco |
Kawajiri Yard |
|
Builder completion |
Kanda Shipbuilding Co., Ltd. |
|
Yard number |
387 |
|
Hull material |
Steel |
|
Hull type |
Double skinned |
|
Watertight compartments |
8 |
|
Continuous decks |
1 |
|
Main engine |
Hitashi/B&W 6L42MC - 2 stroke single acting 6 cylinder 420 x 1.360 mm combustion engine 5.984 kW / 8.130 hp at 176,0 rpm Builder: Hitachi Zosen Corporation, Kure - Japan |
|
Propellers |
1x Fixed pitch propeller - aft at 176,0 rpm |
|
Boilers |
1x CHM 145,00 m² - 8,0 bar |
|
Generators |
2x Daihatsu main diesel generatorsets 500 kVA - 400 kW - 598 hp |
|
Number of holds |
4 |
|
Holds at tanktop |
Hold 1: 28,00 x 9,60/30,30 m Hold 2: 28,80 x 20,20 m Hold 3 28,80 x 20,20 m Hold 4: 28,80 x 20,20/6,40 m |
|
Total capacity of holds |
Grain / Bale Hold 1: 227.570 / 221.707 ft³ Hold 2: 274.503 / 267.723 ft³ Hold 3: 274.503 / 267.723 ft³ Hold 4: 263.909 / 258.788 ft³ Total: 1.040.485 / 1.015.941 ft 29.463 m³ / 28.768 m³ |
|
Hold ventilation |
Electrical ventilated 6 air changes/hour basis |
|
Number of hatches |
4 Hatch 1: 22,40 x 20,20/14,28 m Hatch 2: 24,00 x 20,20 m Hatch 3: 24,00 x 20,20 m Hatch 4: 24,00 x 20,20 m |
|
Hatch type |
MacGregor folding type |
|
Max permitted loads |
Tanktop: 15 t/m² Hatch covers: 3,05 t/m² |
|
Tank capacities |
IFO: 1.175 m³ (80%) DO: 124 m³ (80%) Fresh water: 240 m³ (100%) Ballast: 8.787,1 m³ (100%) |
|
Cargo gear |
3x Cranes - SWL 30,0 t each |
|
Crew size |
23 |
|
Commercial operator |
Orient Shipping Rotterdam B.V. Care of Orient Shipping Rotterdam BV |
|
Renamed |
2017 Amira Mariam Tuvalu, Funafuti - Call sign: T2CE5 Owner: Youssef Maritime Co. S.A. |
|
Latest data adjustment |
05 March 2018 |
