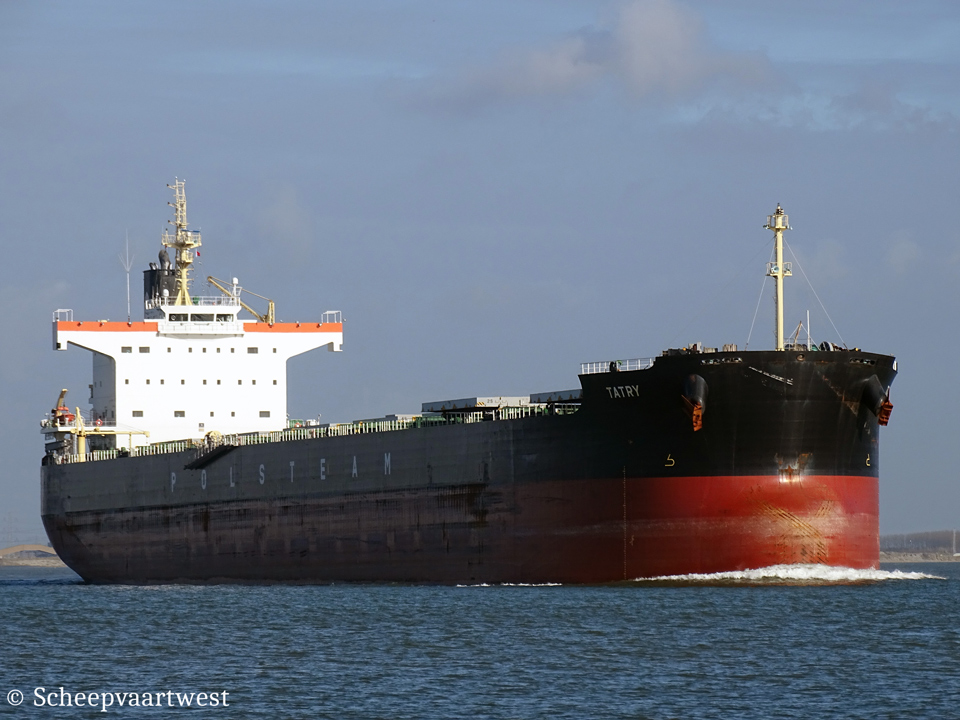

Tatry 03

Westerschelde 25 March 2016

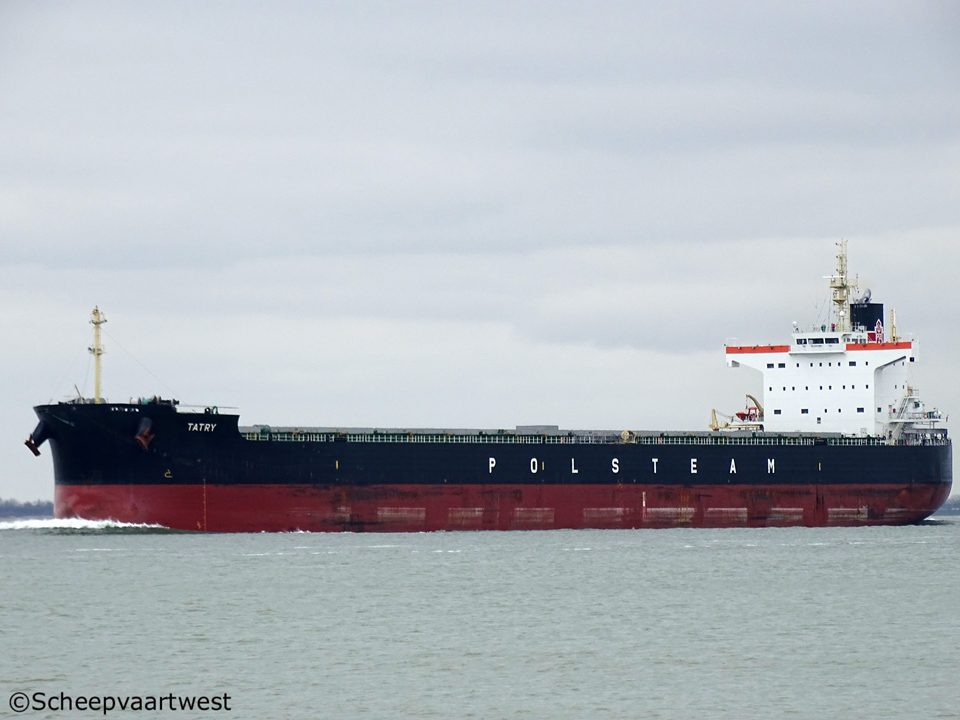

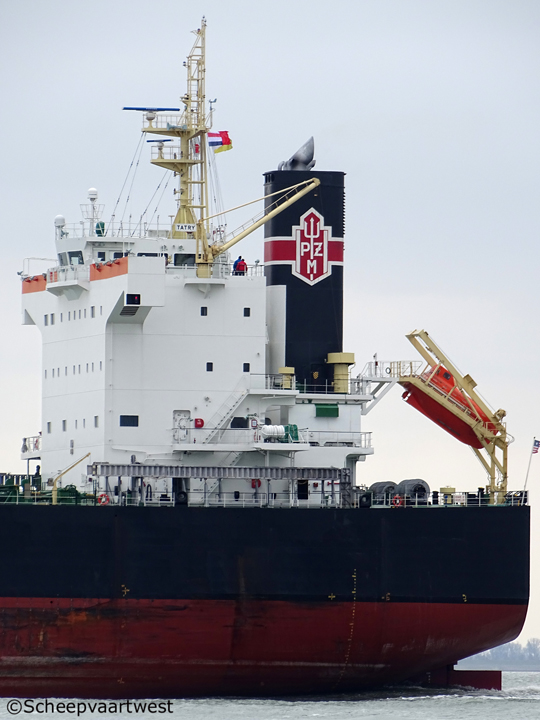

Tatry 01   Tatry 02
Westerschelde 19/03/16   WS 19/03/16



Name

TATRY

Type

Bulk carrier - Strengthened for heavy cargo loading - Panamax

IMO-number

9582960

Call sign

D5CZ6

Flag

Liberia

Port of registry

Monrovia

GT

43.025 t

DWT

82.138 t

NT

27.217 t

Length

228,99 m overall

Breadth

32,26 m

Depth

20,05 m

Speed

Max: 16,4 knots

Built

2013

Keel laid

19/11/2010

Launch date

05/07/2013

Date of completion

02/10/2013

Builder

Tsuneishi Tadotsu Corporation
Tadotsu
Japan

Yard number

1509

Hull material

Steel

Hull type

Single hull

Watertight bulkheads

10

Main engine

1x Mitsui/MAN B&W 6S60MC-C (Mk 7) - 2 stroke 6 cylinder 600 x 2.400 mm combustion engine 9.710 kW / 17.381 bhp at 97,0 rpm

Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works

Propellers

1x Fixed pitch propeller

Boilers

1x Auxiliary vertical boiler,
Pressure: 7,0 bar
Evaporation: 2,78 t/h

Manufacturer: Osaka Boiler MFG. Co. Ltd.

Generators

4x Main diesel generatorsets each 400 kW

Emergency generator

1x Diesel generatorset 80 kW

Number of holds

7

Cargo hold capacity

Grain: 97.381 m³

Number of hatches

7

1x 14,20 x 13,80 m

6x 17,80 x 15,40 m

Hatchways type

Mac Gregor side rolling-twin panel

Tank capacities

Fuel oil: 3.184 m³
Fresh water: 468 m³
Water ballast: 22.060 m³

Crew size

20

Manager

Polska Zegluga Morska P.P.
Pl. Rodła 8
70-419 Szczecin
Poland

Operator

Polsteam
Szczecin
Poland

Registered owner

Galatea Four Navigation Limited

Latest data adjustment

13 February 2018
