Westerschelde 17 March 2016 |
 |
 |
|
| Westerschelde 17/03/16 | Antwerpen 12/12/19 |
|
Name |

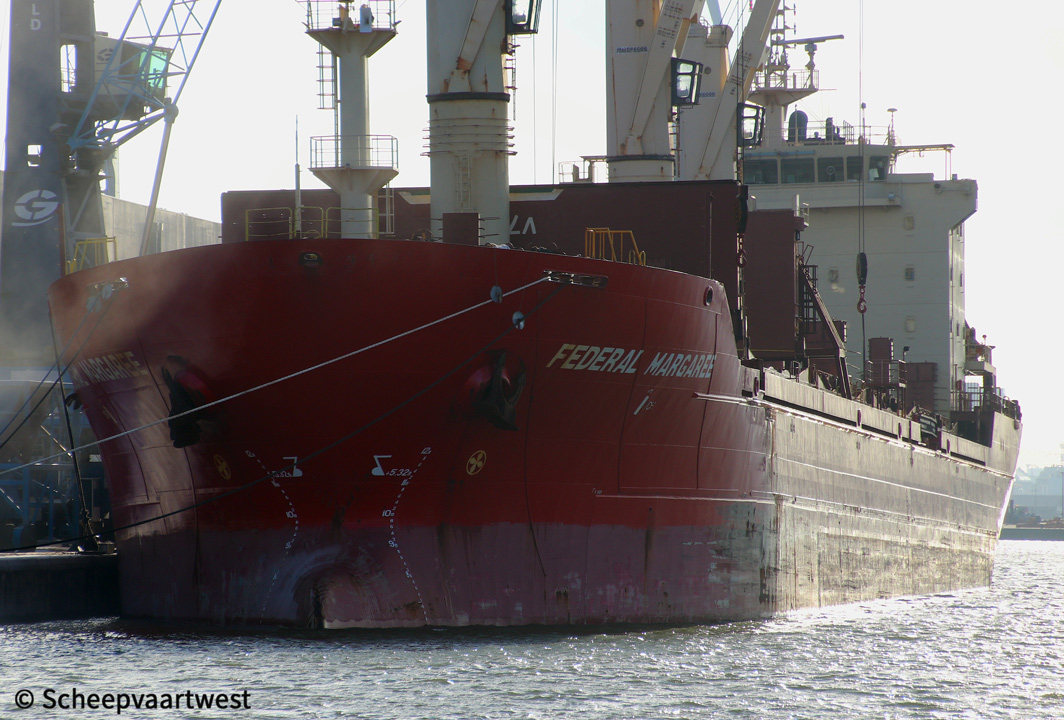

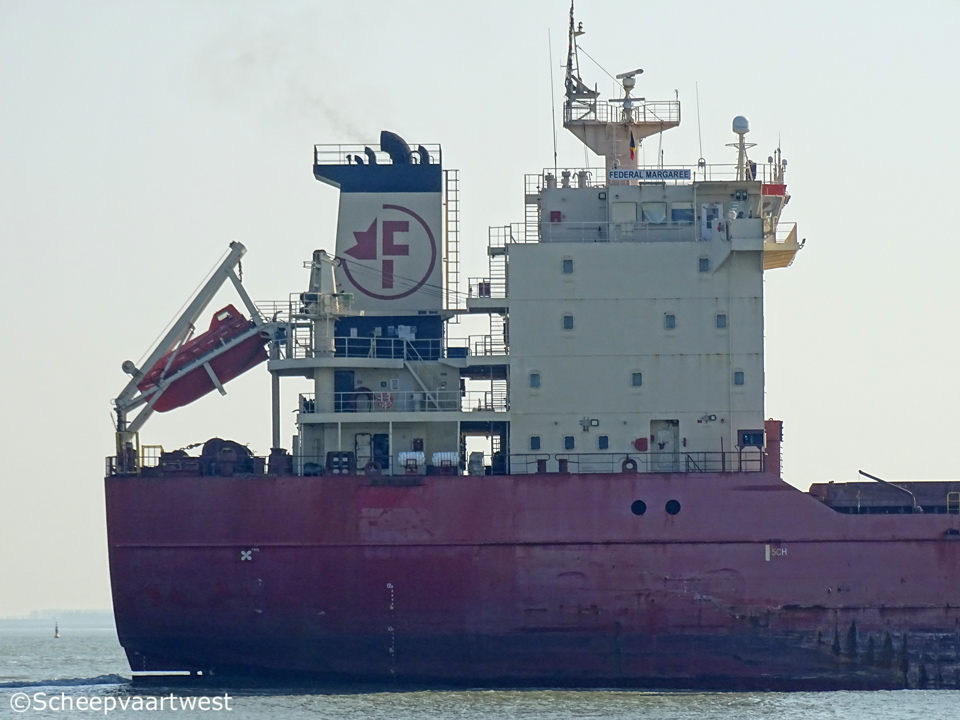

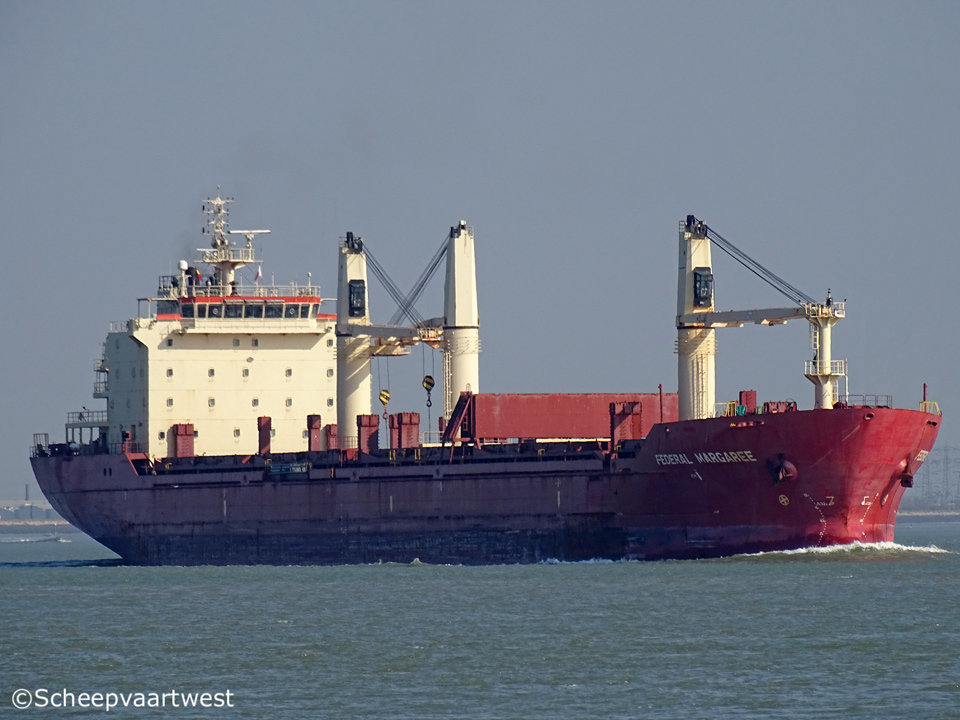

FEDERAL MARGAREE |
|
Type |
Bulk carrier |
|
IMO-number |
9299472 |
|
Call sign |
V7RI7 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
GT |
18.825 t registered |
|
DWT |
Summer: 27.583 t Winter: 26.775 t |
|
NT |
8.565 t registered Panama: 15.727 t Suez: 15.745 t |
|
Length |
185,00 m overall |
|
Breadth |
23,50 m |
|
Draught |
Summer: 9,80 m Winter: 9,60 m |
|
Depth |
14,10 m |
|
Speed |
Max.: 14,5 knots |
|
Built |
2005 |
|
Keel laid |
01/10/2002 |
|
Launch date |
25/10/2004 |
|
Delivery date |
31/01/2005 |
|
Builder |
Wenchong Shipyard Guangzhou China |
|
Yard number |
GWS 307 |
|
Hull material |
shipbuilding steel (higher tensile) |
|
Hull type |
Single hull - Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
7 |
|
Continuous decks |
1 |
|
Main engine |
1x 6S46MC-C - 2 stroke 6 cylinder combustion engine 7.860 kW at 129,0 rpm Manufacturer: Hudong Heavy Machinery Co., Ltd. |
|
Propellers |
1x Fixed pitch propeller 4 blades - diameter 5.500 mm |
|
Boilers |
1x Oil fired / exhaust gas heated: Max. allow. working pressure 9,0 bar Heating Surface 34,0 m² Heating Surface 200,0 m² Manufacturer: Zhangjiagang Hailu Shazhou Boiler |
|
Electric installations |
3x Plant 450/ 230 V with 750 kVA 1x Plant 450 V with 131 kVA |
|
Generators |
3x ZJMD MAN-B&W 5L 23/30H main diesel generatorsets each 650 kW |
|
Emergency generator |
1x SISU Diesel 620 DSRG diesel generatorset 120 kW / 131 kVA |
|
Compressed air receivers |
2x Receivers each 4.500 litres - 30,0 bar 1x Receiver 160 litres - 30,0 bar 1x Receiver 30 litres - 30,0 bar 2x Receivers each 250 litres - 10,0 bar 1x Receiver 100 litres - 8,0 bar |
|
Bow thruster |
1x Brunvoll FU-63-LTC-1550, variable pitch propeller 680 kW |
|
Number of holds 5 |
5 Hold 1: 24,80 x 8,80 m - 13,00 m Hold 2: 27,20 x 19,00 m Hold 3: 28,80 x 19,00 m hold 4: 27,20 x 19,00 m hold 5: 28,80 x 19,00 - 13,00 m Open hatch box holds, Lakes fitted, CO2, Grainfitted |
|
Hold ventilation |
3 times/h per hold |
|
Cargo hold capacity |
Grain / Bale Hold 1: 4.888 m³ / 4.720 m³ Hold 2: 7.189 m³ / 7.050 m³ Hold 3: 7.614 m³ / 7.030 m³ Hold 4: 7.176 m³ / 7.030 m³ Hold 5: 7.442 m³ / 6.900 m³ Total: Grain: 34.378 m³ Bale: 32.730 m³ |
|
Number of hatches |
5 Hatch 1: 15,20 x 15,20 m Hatch 2: 20,80 x 19,00 m Hatch 3: 20,80 x 19,00 m Hatch 4: 20,80 x 19,00 m Hatch 5: 20,80 x 19,00 m |
|
Hatch cover type |
Folding hydraulic |
|
Tank capacity |
Fuel oil (IFO): 945 m³ Marine diesel oil: 436 m³ Water ballast: 10.851 m³ |
|
Anchor equipment |
3x Anchors weight each 6.450 kg Chain length: 605,00 m |
|
Cargo gear |
3x Electro hydraulic cranes - SWL 30,0 t each |
|
Accommodation |
23 + Suez Canal crew |
|
Manager |
Anglo Eastern Shipmanagement Hong Kong China |
|
Owner |
Fednav Group 1000 de La Gauchetière Street West, Suite 3500 Montreal Quebec H3B 4W5 Canada |
|
Latest data adjustment |
03 February 2020 |
