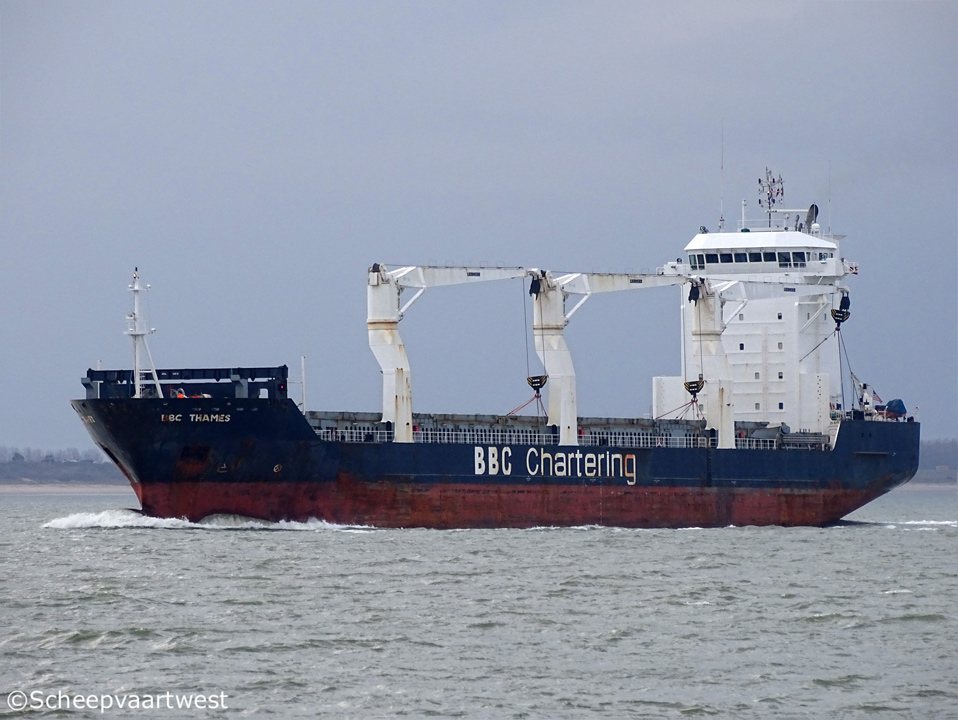

BBC Thames 01

Westerschelde 27 December 2017



Name

BBC THAMES

Previous names

2008 launch as: Svenja

11/2008 - 01/2009 Beluga Graduation

Type

Multi-purpose dry cargo ship - Strengthened for heavy cargoes - Equipped for carriage of containers - Equipped for carriage of dangerous goods

Tweendecker

IMO-number

9368340

Call sign

A8QR4

Flag

Liberia

Port of registry

Monrovia

GT

11.864 t

DWT

Summer: 17.349 t

NT

5.650 t

Number of 20ft containers

962

Container capacity 14t

661

Reefer capacity

60

Length

142,81 m overall

133,26 m between perpendiculars

Breadth

22,75 m extreme

22,50 m moulded

Draught

Summer: 9,69 m

Height above keel

40,90 m

Depth

13,30 m to main deck

Speed

Max.: 15,0 knots

Built

2008

Keel laid

20/07/2008

Launch date

28/09/2008

Date of completion

21/11/2008

Builder

Hudong-Zhonghua Shipbuilding (Group) Co., Ltd.
Shanghai
China

Yard number

H1501A

Hull material

Steel

Main engine

1x Wärtsilä 8L46B - 8 cylinder diesel engine 7.800 kW

Propellers

1x Controllable pitch propeller

Boilers

1x Thermal oil heater, exhaust heated

1x Thermal oil heater, oil fired

Generators

3x Mitsubishi S6R2-MPTKF main diesel generatorsets

Emergency generators

1x Mitsubishi 6D24-TC diesel generatorset

Bow thruster

1x 750 kW

Deck strengths

Tanktop: 20,0 t/m²

Tweendeck: 4,0 t/m²

Hatch covers: 1,75 t/m²

Cargo hold capacity

20.041 m³ / 707.727 ft³

Floor space

Under deck: 2.926 m² / 31.495 ft²

On deck: 1.582 m³ / 16.813 ft²

Tank capacities

Ballast: 5.412,12 m³

Anchor equipment

Length: 577,50 m

Diameter: 58 mm

Cargo gear

3x Liebbherrr cranes - SWL 60 t each situated portside

Manager

Elbe Shipping Reederei Drochtersen
Germany

Operator

BBC Chartering GMBH
Hafenstr. 10b
26789 Leer
Germany

Owner

Reederei Elbe Shipping GmbH & Co KG

Registered owner

M/S "Svenja" UG (haftungsbeschränkt) & Co. KG

Latest data adjustment

07 February 2018
