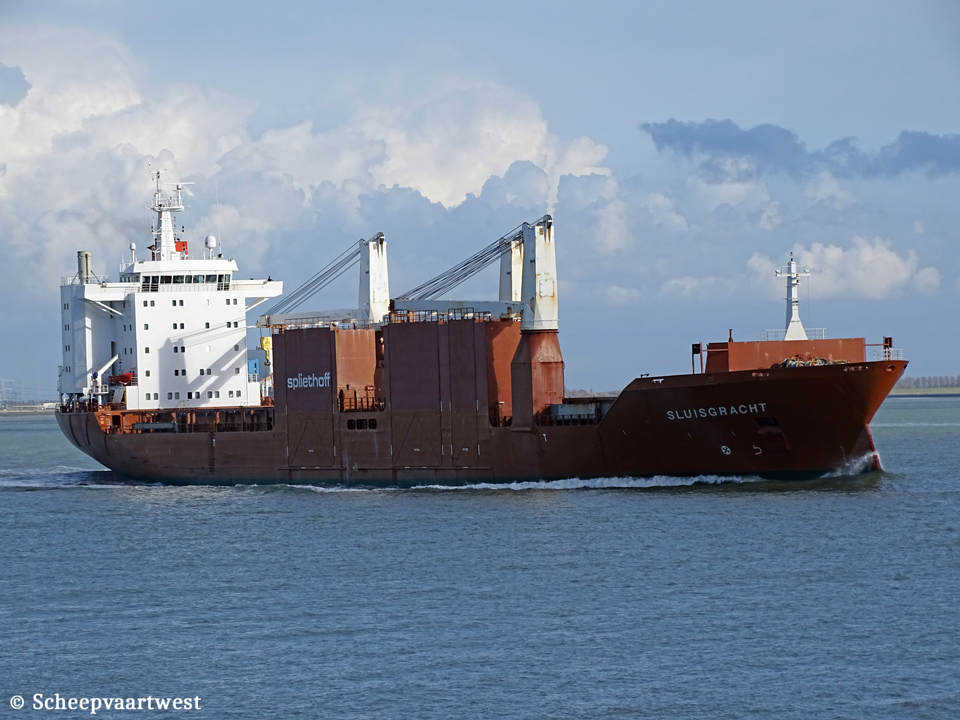

Sluisgracht IMO 9202522 03

Westerschelde 03 March 2020

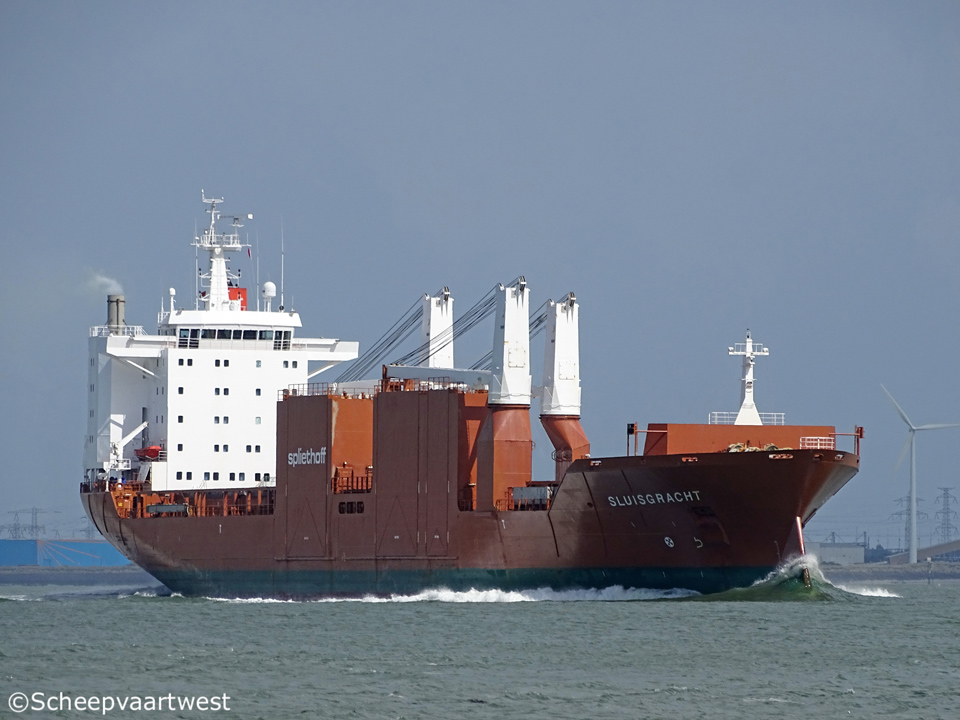

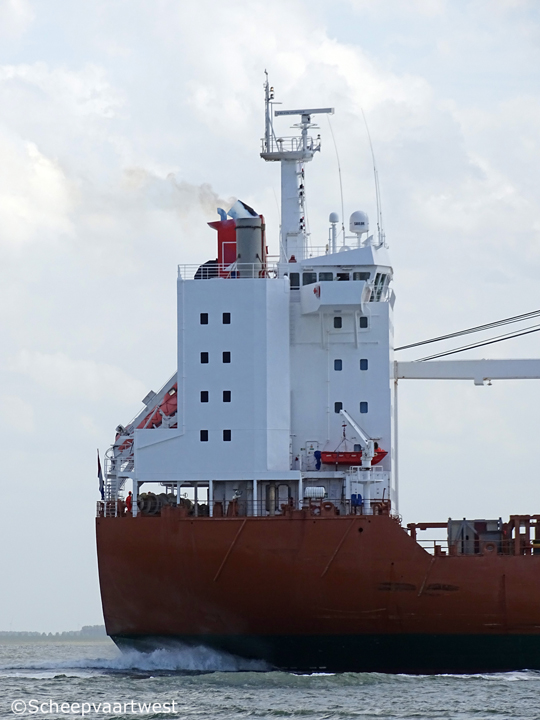

Sluisgracht 01   Sluisgracht 02
Westerschelde 27/07/17   WS 27/07/17



Name

SLUISGRACHT

Type

General dry cargo ship - Strengthened for heavy cargoes

IMO-number

9202522

Call sign

PFBE

Flag

The Netherlands

Port of registry

Amsterdam

GT

16.639 t

DWT

21.400 t excl. tweendeck

20.760 t incl. tweed deck

NT

6.730 t

Number of 20ft containers

In hold: 478

On deck: 656

Total: 1.134

Length

173,16 m overall

160,29 m between perpendiculars

Breadth

25,30 m moulded

Draught

Summer: 10,74 m

Depth

14,60 m moulded

Speed

19,5 knots

Built

2001

Keel laid

04/04/2000

Launch date

10/06/2000

Date of completion

22/02/2001

Builder

Stocznia Szczecinska Nowa Sp. z o.o. (Porta Odra)

Szczecin (Stettin)

Poland

Yard number

B587/IV/3

Hull material

Steel - Part higher tensile steel

Hull type

Single hull

Bulkheads/Compartments

Removable pontoons for up to 14 compartments at TEU interval

Continuous decks

1

Main engine

1x Wärtsilä Type 6L64 - 4 stroke single acting 640 x 900 mm combustion engine 12.060 kW / 16.397 bhp at 333 rpm

Manufacturer: Fincantieri-Cant. Nav. Italiana S.p.A. (Grandi Motori), Trieste - Italy

Propellers

1

Auxiliary engines

3x Mitsubishi diesels type: S6-R2 MPTK diesel engines each 450kW at 1.200 rpm

1x Mitsubishi diesel type S6-R-2 MPTA diesel engine 435 kW at 1.200 rpm

Shaft generator

1x 1.250 kVA - 3x350 Volt 60 Hz

Generators

4x Taiyo generators type: FB each 560 kVA

Bow thruster

1x 850 kW

Cargo hold capacity

Grain: 22.200 m³

Hatches

Weather desk:

N° 0: 6,40 x 7,60 m

N° 1: 25,60 x 17,80 m

N° 2: 38,40 x 17,80 m

N° 3: 32,00 x 20,40 m

Type: Steel, end folding/rolling/lift away type

Tween deck:

N° 1: 25,60 x 17,80 m

N° 2: 38,40 x 17,80 m

N° 3: 32,00 x 20,40 m

Consisting 16 steel pontoons:

1x 6,37 x 15,12 m

2x 3,17 x 17,72 m

1x 4,20 x 17,72 m

2x 6,37 x 10,02 m

6x 6,37 x 17,72 m

4x 6,37 x 20,32 m

Floor space

Tanktop: 1.620 m²

Tween deck: 1.634 m²

Weather deck: 2.155 m²

Max. permitted loads

Weather deck hatch covers: 2,00 t/m²

Tweendeck hatch covers:

Hatchway 1: 7,50 t/m²

Hatchway 2: 5,50 t/m²

Hatchway 3: 5,00 t/m²

Tanktop: 20,00 t/m²

Tank capacities

Ballast: 7.830 t

Bunker: 1.653 t

Cargo gear

3x NMF cranes:

2x PS (aft and mid)

1x SB (forward)

120 t each and 55 t SWL

5x Sideloaders - SWL 16 t at SB each

Manager

Spliethoff's Bevrachtingskantoor B.V.

Radarweg 36

1042 AA Amsterdam

The Netherlands

Registered owner

Rederij Sluisgracht

Radarweg 3

1042 AA Amsterdam

Netherlands

Previous owners

02/2001 - 07/2012 C.V. Scheepvaartonderneming Hudsongracht, Amsterdam - The Netherlands

Latest data adjustment

16 September 2020
