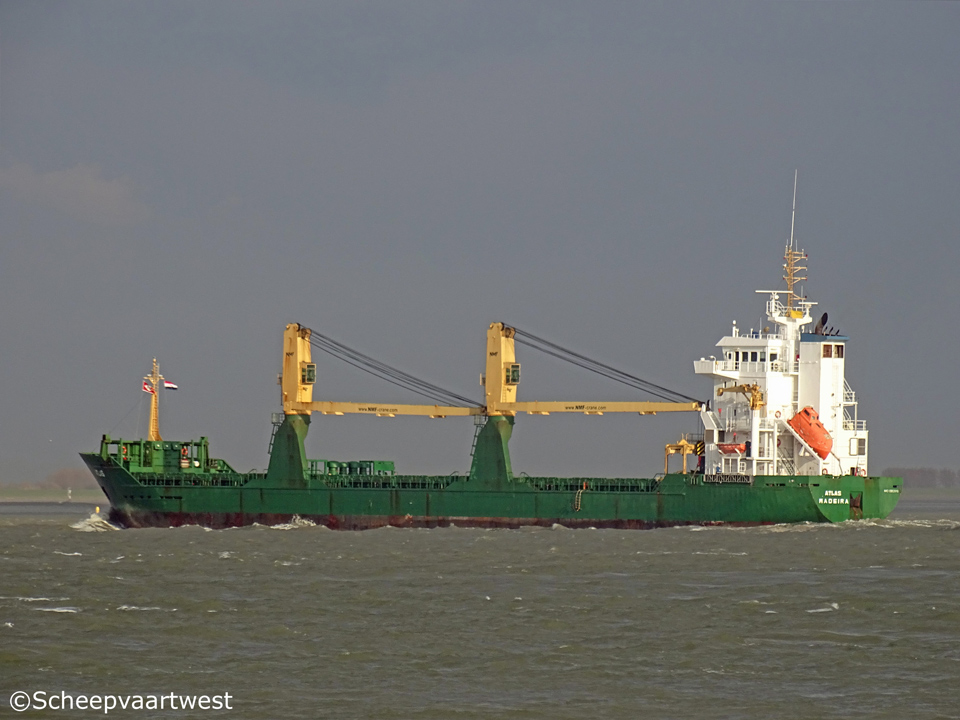

Westerschelde 05 April 2016 |
|
Name |
ATLAS |
|
Previous names |
2006 - 10.2007 Transportør 10.2007 - 02.2009 Onego Explorer 02.2009 - 10.2013 Hartwig Scan 10.2013 - 2016 Atlas |
|
Type |
Multi-purpose Tweendecker - Stengthened for heavy cargo - Equipped for carriage of containers and dangerous goods |
|
IMO-number |
9362815 |
|
Call sign |
CQAN |
|
Flag |
Portugal |
|
Port of registry |
Madeira |
|
Previous flags |
Antigua & Barbuda, St. John’s - Call sign: V2CD1 |
|
GT |
4.990 t |
|
DWT |
Summer: 7.749 t |
|
NT |
2.648 t |
|
Number of 20ft containers |
In hold; 162 On deck: 186 Total: 348 |
|
Reefer plugs |
20 units, 440V/60Hz |
|
Length |
118,55 m overall 111,85 m between perpendiculars |
|
Breadth |
15,20 m extreme |
|
Draught |
7,03 m |
|
Depth |
8,45 m |
|
Speed |
13,0 knots |
|
Built |
2006 |
|
Keel laid |
18.06.2002 |
|
Launch date |
14.07.2006 |
|
Date of completion |
08.09.2006 |
|
Builder |
Bodewes Shipyards B.V. Hoogezand |
|
Yard number |
687 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Main engine |
1x MaK 8M 32 C - 8 cylinder diesel engine 3.840 kW Builder: MaK Maschinenbau Kiel AG - Germany |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
1x Auxiliary boiler, oil/gas fired |
|
Shaft generator |
442 kW |
|
Generators |
3x Cummins N14D(M) main diesel generatorsets each 290 kW |
|
Emergency generator |
1x Cummins 6BT5.9-G 6 diesel generatorset |
|
Bow thruster |
300 kW |
|
Number of holds |
2x Boxlike holds Hold 1: 27,75 x 12,65 x 9,45m (narrowing forward) Hold 2: 54,00 x 12,65 x 9,45m |
|
Cargo hold capacity |
Bale: 9.420 m³ |
|
Hold ventilation |
10x Air changes per hour |
|
Number of hatches |
2 Hatch Opening 1: 27,00 x 12,97 m Hatch Opening 2: 53,24 x 12,97 m |
|
Hatch cover type |
Pontoons |
|
Tweendeck |
11x Tweendeck panels covering hold 2 except for aftmost 2,25 m 3x Tweendeck panels can be used in aft part of hold 1 in lieu of hold 2 Tweendecks can be used as 4 bulkheads in 5 positions in hold 2 and 1 position in hold 1 Tanktop to tweendeck: 4,40 m Tweendeck to hatch: 4,42 m Tweendeck to underside of strongbeam: 2,98 m |
|
Deck space |
Under deck: 1.685 m² On deck: 1.000 m² |
|
Max.: permissible loads |
Tanktop: 15,00 t/m² Tweendeck: 3,50 t/m² Hatchcover: 1,75 t/m² |
|
Tank capacities |
Ballast: 3.273,83 m³ Fuel IFO: 556 m³ Fuel GO: 82 m³ Fresh Water: 50 m³ |
|
Anchor equipment |
Length: 495,00 m Diameter: 44 |
|
Cargo gear |
2x NMF cranes - SWL 60 t each Combinable up to 120 t |
|
Manager |
Buss Reederei Leer |
|
Owner |
Buss Reederei Leer |
|
Renamed |
2016 Nadja Portugal, Madeira - Call sign: CQAN Owner: ERB MPP GmbH & Co. KG |
|
Latest data adjustment |
27 December 2017 |
