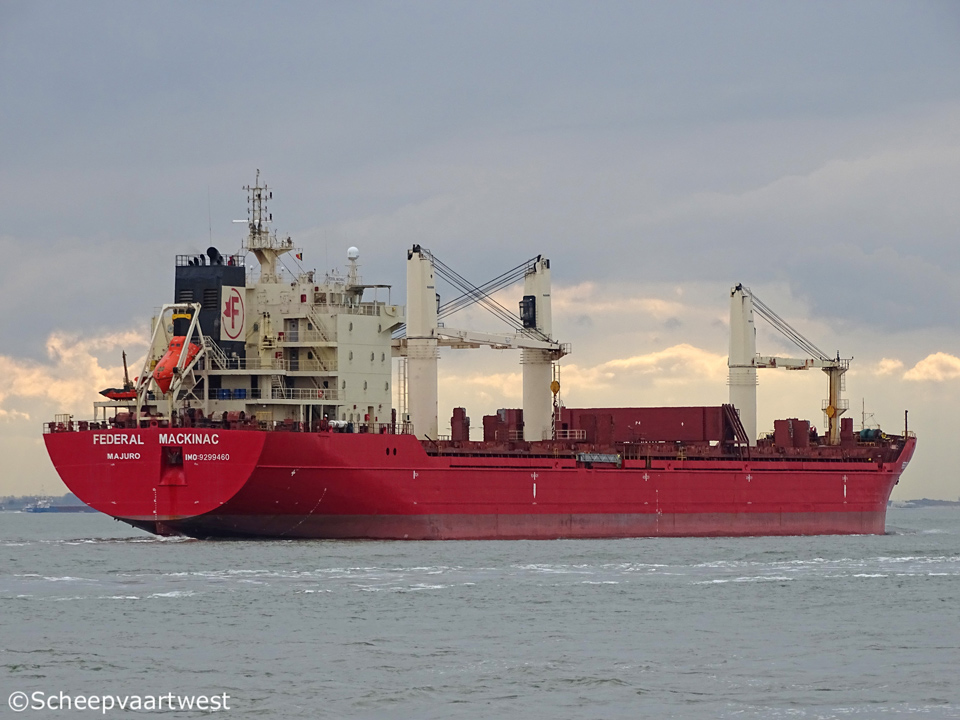

Westerschelde 23 April 2017 |
 |
 |
 |
||

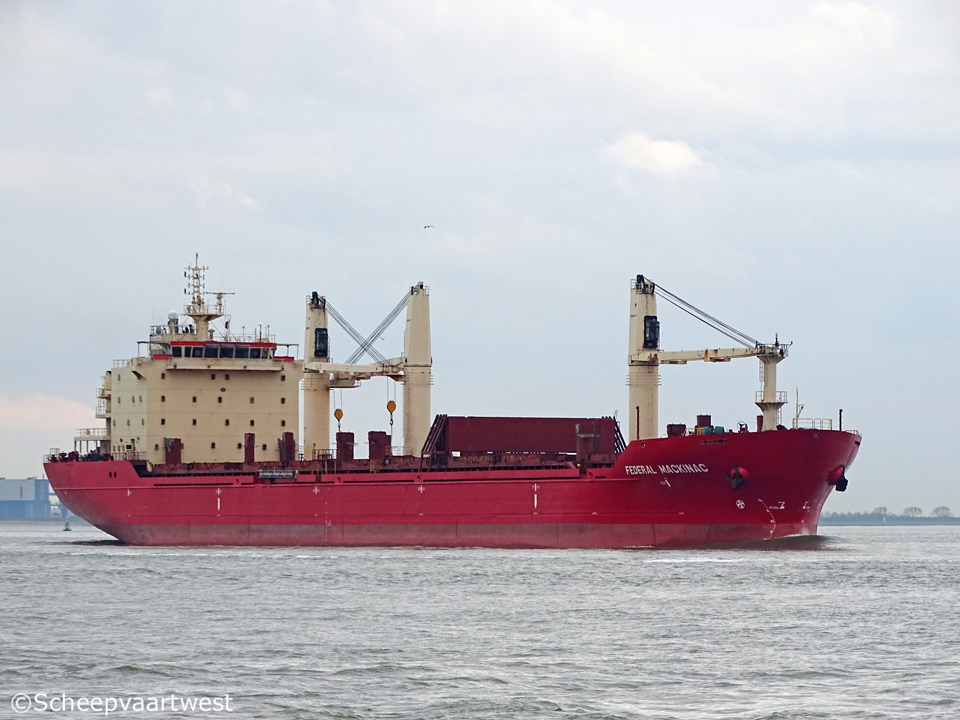

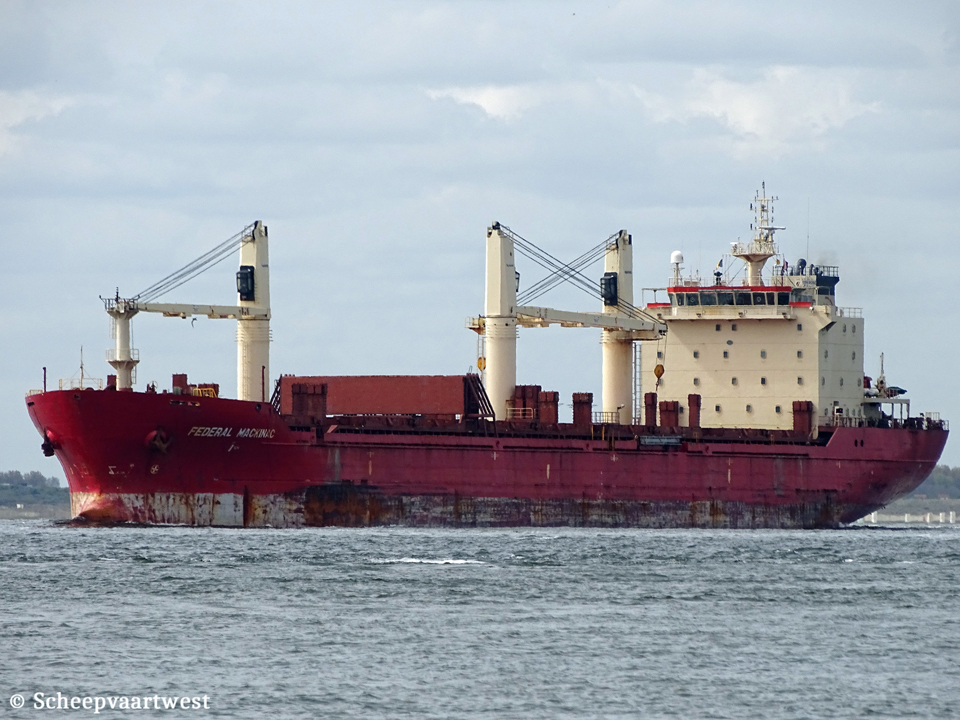

| Westerschelde 31/03/18 | Westerschelde 31/03/18 | Antwerpen 03/06/17 | ||
|
Name |
FEDERAL MACKINAC |
|
Type |
Handysize bulk carrier |
|
IMO-number |
9299460 |
|
Call sign |
V7RI8 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
Previous flags |
Liberia, Monrovia - Call sign: A8FG6 |
|
GT |
18.825 t |
|
DWT |
Summer: 27.638 t Winter: 26.829,3 t |
|
NT |
8.565 t Panama canal: 15.727 t Suez canal: 15.745 t |
|
Length |
185,09 m overall |
|
Breadth |
23,50 m |
|
Draft |
Summer: 9,80 m Winter: 9,60 m |
|
Depth |
14,10 m |
|
Speed |
Service: 14,0 knots Max.: 18,2 knots |
|
Built |
2004 |
|
Keel laid |
14/04/2004 |
|
Date of completion |
10/11/2004 |
|
Builder |
Guangzhou Wenchong Shipyard Co., Ltd. Guangzhou China |
|
Yard number |
GWS306 |
|
Hull material |
Steel |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W/Hudong 6S46MC-C - 2 stroke single acting 6 cylinder 460 x 1.932 mm combustion engine Mcr 7.852 kW / 10.540 bhp at 129,0 rpm Manufacturer: Hudong Heavy Machinery - China |
|
Propellers |
1x Fixed pitch propeller - aft at 129,0 rpm |
|
Generators |
3x Diesel engines each Mcr 650 kW connected with generators each 600 kW / 450/203 Volt 60 Hz |
|
Bow thruster |
1x Tunnel thruster 680kW / 925 bhp, forward |
|
Number of holds |
5 Hold 1: 24,80 x 8,80/13,00 m Hold 2: 27,20 x 19,00/19,00 m Hold 3: 28,80 x 19,00/19,00 m Hold 4: 27,20 x 19,00/19,00 m Hold 5: 28,80 x 19,00/13,00 m |
|
Cargo hold capacity |
Brain / Bale: Hold 1: 4.898 m³ / 4.720 m³ Hold 2: 7.204 m³ / 7.050 m³ Hold 3: 7.629 m³ / 7.030 m³ Hold 4: 7.190 m³ / 7.030 m³ Hold 5: 7.457 m³ / 6.900 m³ Total: 34.378 m³ / 32.730 m³ |
|
Hold ventilation |
Mechanical |
|
Number of hatches |
5 Hatch 1: 15,20 x 15,20 m Hatch 2: 20,80 x 19,00 m Hatch 3: 20,80 x 19,00 m Hatch 4: 20,80 x 19,00 m Hatch 5: 20,80 x 19,00 m |
|
Hatch type |
Folding hydraulic |
|
Tanktop strength |
20,0 t/m² |
|
Tank capacities |
IFO: 945 m³ MDO: 436 m³ |
|
Cargo gear |
3x Electro Hydraulic cranes - SWL 30,0 t each |
|
Crew size |
22 |
|
Manager |
Anglo-Eastern Ship Management Ltd. Hong Kong - China |
|
Operator |
Fednav Group 1000 de La Gauchetière Street West, Suite 3500 Montreal, Quebec H3B 4W5 Canada |
|
Registered owner |
Baffin Investments Limited Care of Fednav Ltd , Suite 3500 1000, rue de la Gauchetiere O Montreal QC H3B 4W5 Canada |
|
Renamed |
03/2021 Pacific Rose Barbados - Call sign: 8PAZ7 Owner: Skon Marine Ltd. - Romania Manager: Stemship Management Ltd. - Romania |
|
Latest data adjustment |
02 December 2022 |
