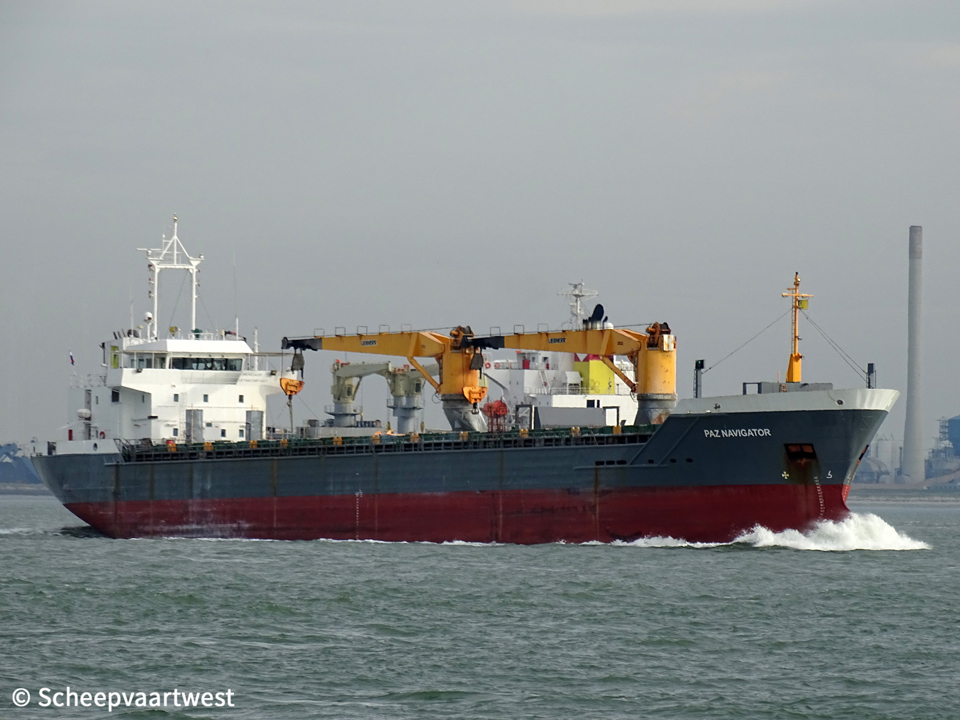

Westerschelde 05 November 2015 |
 |

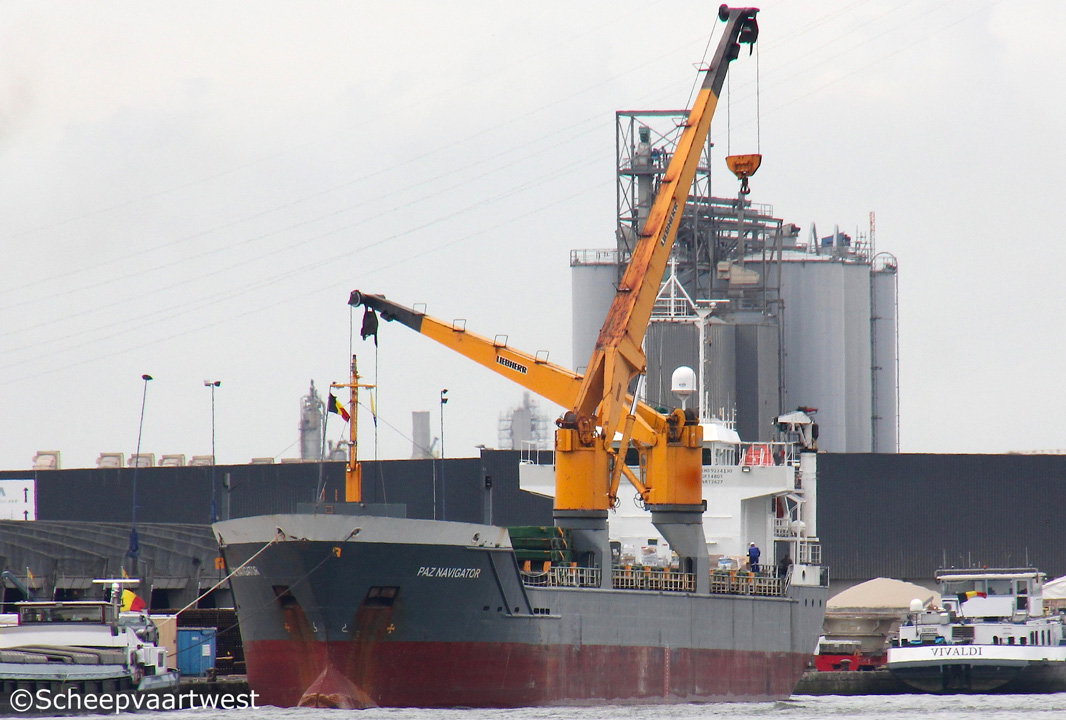

| Antwerpen 16/08/17 |
|
Name |
PAZ NAVIGATOR |
|
Previous names |
Build as: Don Juan 06/2000 - 07/2000 Palmares 07/2000 - 03/2013 Paz Colombia |
|
Type |
General cargo ship - Geared box tweendecker - Strengthened for heavy cargoes |
|
IMO-number |
9224130 |
|
Call sign |
PBLM |
|
Flag |
The Netherlands |
|
Port of registry |
Heerenveen |
|
Previous flags |
2000 - 2013 Antigua & Barbuda, St. John’s - Call sign: V2AW4 |
|
GT |
4.803 t registered |
|
DWT |
Summer: 7.840 t |
|
NT |
2.627 t registered |
|
Number of 20ft containers |
351 |
|
Container capacity 14t |
253 |
|
Length |
118,55 m overall 112,15 m between perpendiculars |
|
Breadth |
15,35 m extreme 15,20 m moulded |
|
Draught |
Summer: 7,00 m |
|
Air draft ballast |
17,77 m / 15,50 m (all masts down) |
|
Freeboard |
Summer: 1.459 mm |
|
Depth |
8,45 m moulded |
|
Speed |
12,7 knots |
|
Built |
2000 |
|
Keel laid |
29/06/1998 |
|
Launch date |
27/05/2000 |
|
Date of completion |
01/06/2000 |
|
Builder |
Bodewes Scheepswerven B.V. Hoogezand The Netherlands |
|
Yard number |
592 |
|
Hull material |
Steel |
|
Movable bulkheads |
1 |
|
Number of decks |
2 |
|
Main engine |
1x MaK 8M32 - 4 stroke single acting 8 cylinder 320 x 480 mm combustion engine 5.221 bhp / 3.840 kW at 600 rpm Manufacturer: Caterpillar Motoren GmbH & Co. KG, Kiel - Germany |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 324 mm |
|
Propellers |
1x Controllable pitch propeller |
|
Shaft generator |
1x 435 kW |
|
Generators |
2x Main diesel generatorsets each 260 kW |
|
Bow thruster |
1x 300 kW |
|
Number of holds |
2 Box-shaped Hold 1: 27,75 x 12,65 x 9,45 m Hold 2: 54,00 x 12,65 x 9,45 m |
|
Cargo hold capacity |
Grain: Hold 1: 2.955 m³ Hold 2: 6.447 m³ Total: 9.402 m³ / 331.890 ft³ |
|
Hold ventilation |
6x Air changes/h |
|
Number of hatches |
2 Hatch 1 + 2: 27,75 m + 54,00 m x 12,65 m |
|
Hatch cover |
Pontoon |
|
Deck strength |
Tanktop: 15,0 t/m² Tweendeck: 2,0 t/m² Hatchcover: 1,75 t/m² |
|
Tank capacities |
HFO: abt 556 m³ (incl. day + settling tank) MGO: abt 87,70 m³ (incl. day + settling tank) Fresh water: abt 50 m³ Ballast water: abt 3.376 m³ |
|
Cargo gear |
2x Liebherr cranes - SWL 40,0 t each Outreach : 13,00 m |
|
Manager |
Forest Wave Navigation B.V. Heerenveen The Netherlands |
|
Previous managers |
06/2006 - 03/2013 Harren & Partner Schiffahrts GmbH, Haren/Ems - Germany |
|
Owner |
FWN Wind Navigator B.V. Heerenveen The Netherlands |
|
Registered owner |
FWN Paz B.V. |
|
Previous names & owners |
06/2000 - 07/2000 Palmares - Palmares Schiffahrtsgesellschaft G.M.b.H., Haren/Ems - Germany 07/2000 - 03/2013 Paz Colombia - Palmares Schiffahrtsgesellschaft G.M.b.H., Haren/Ems - Germany |
|
Renamed |
08/2018 Pan Navigator Republic of Panama, Panama City - call sign: HPXA Manager: Mini Project Shipping Ltd., Twickenham, Great Britain Owner: Pan Navigator Ltd., Twickenham, United Kingdom |
|
Latest data adjustment |
03 November 2019 |
