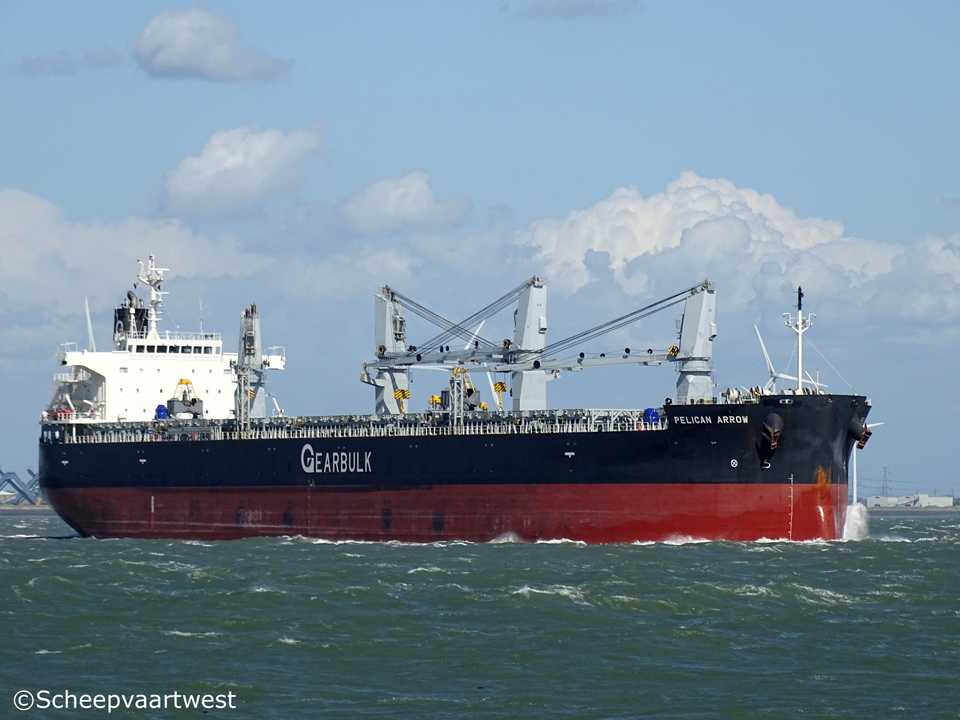

Pelican Arrow 01

Westerschelde 02 July 2016



Name

PELICAN ARROW

Type

Bulk carrier - Open Hatch Jib crane vessel - Strengthened for heavy cargo loading

Fleximax II

IMO-number

9495923

Call sign

3FNQ4

Flag

Republic of Panama

Port of registry

Panama City

GT

36.925 t registered

DWT

Summer: 62.942 t

NT

18.292 t registered

Number of 20ft containers

270

Number of 40ft containers

132

Length

199,98 m overall

Breadth

32,26 m moulded

Draught

13,51 m

Moulded L x B x D

196,00 x 32,26 x 19,22 m

Registered L x B x D

196,11 x 32,26 x 19,22 m

Freeboard

5.786 mm

Depth

19,22 m moulded

Speed

Max.: 15,8 knots

Service: 14,5 knots

Built

2011

Keel laid

21.12.2010

Launch date

04.04.2011

Date of completion

19.05.2011

Builder

Oshima Shipbuilding Co., Ltd.
Saikai
Japan

Yard number

10615

Hull material

Steel

Main engine

1x MAN-B&W-Kawasaki 6S50MC-C - 2 stroke single acting 6 cylinder 500 x 2.000 mm diesel engine 8.605 kW at 110,0 rpm

Manufacturer: Kawasaki Heavy Industries, Ltd.

Propeller shaft

1x Oil lubrication shaft without monitoring device

Diameter: 495 mm

Propellers

1x Fixed propeller

Boilers

1x Auxiliary Vertical boiler: 6,9 bar

Evaporation: 2,87 t/h

Manufacturer: Aalborg Industries Limited

Generators

3x Main diesel generatorsets each 800 kW

Bow thruster

1x 1.400 kW

Number of holds

8

Hold 1: 16,80 x 14,80 x 19,26 m

Hold 2-8: 18,30 x 24,40 x 19,26 m

Cargo hold capacity

Grain: 70.312 m³

Bale: 70.283 m³

Tank capacities

Fuel oil: 2.177 m³

Fresh water: 551 m³

Cargo gear

4x Cranes - SWL 40,0 t each

Grabs: 4x 12 m³

Manager

Iino Marine Services
Tokyo
Japan

Operator

Gearbulk
Bergen
Norway

Registered owner

STK Line S.A.

Latest data adjustment

09 September 2017
