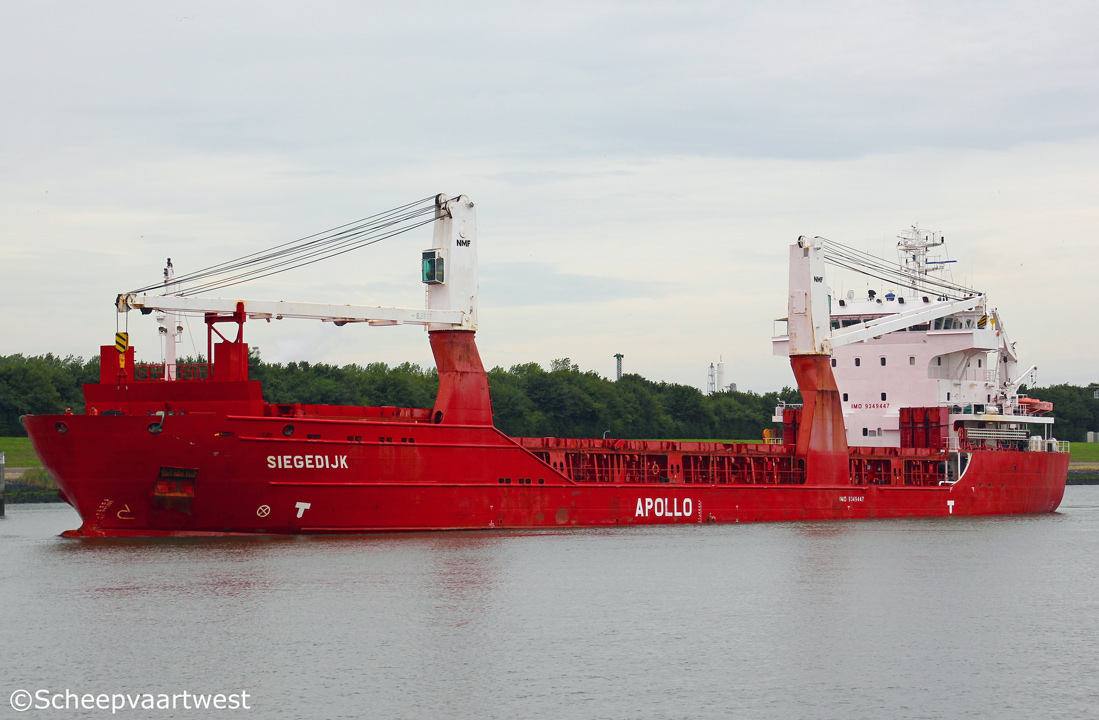

Siegedijk 01

Terneuzen 02 August 2017

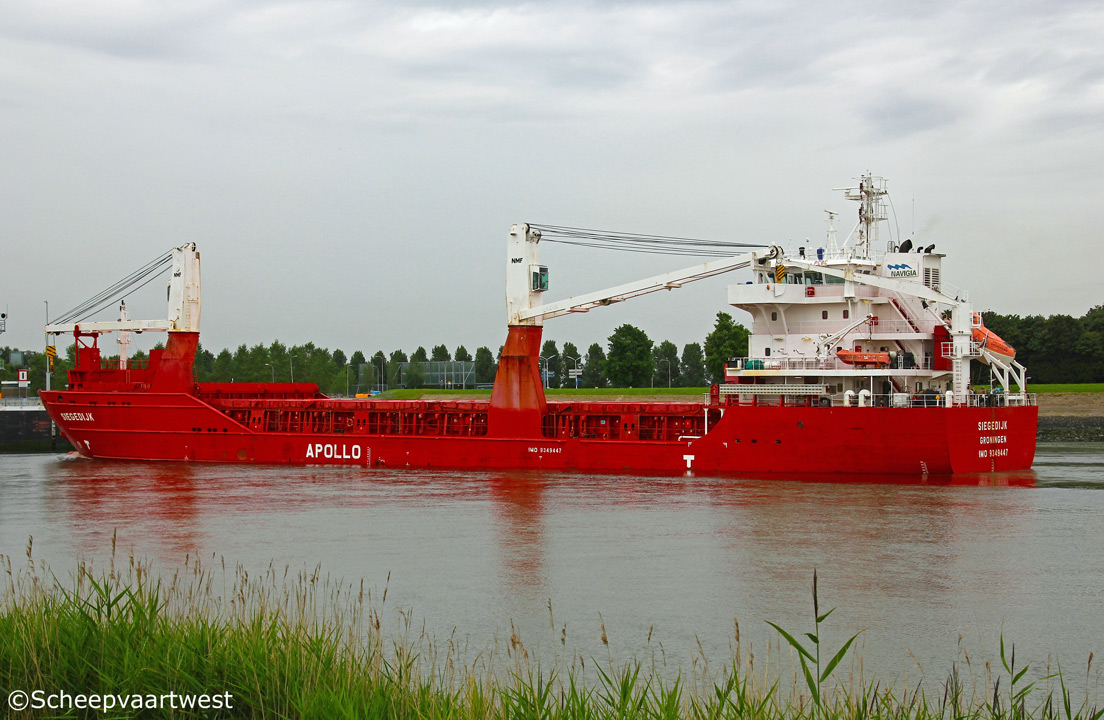

Siegedijk 02
02/08/17



Name

SIEGEDIJK

Previous names

Build as: Weserdijk

Type

Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo

IMO-number

9349447

Call sign

PCBC

Flag

The Netherlands

Port of registry

Groningen

GT

6.668 t

DWT

Summer: 9.640,19 t

NT

3.652 t

Number of 20ft containers

132

Number of 40ft containers

66

Length

106,99 m overall

103,00 m between perpendiculars

Breadth

18,43 m extreme

18,20 m moulded

Draught

Max.: 8,23 m

Air draft

31,60 m

Depth

10,50 m to main deck

Speed

13,0 knots

Built

2010

Keel laid

21.05.2008

Launch date

18.06.2009

Date of completion

21.07.2010

Builder

Penglai Bohai Shipbuilding
Shandong
China

Yard number

PBZ04-38A

Hull material

Steel

Continuous decks

1

Main engine

1x MaK 8M32 - 4 stroke single acting 9 cylinder 320 x 480 mm diesel engine 3.840 kW

Manufacturer: Caterpillar Motoren GmbH & Co. KG, Kiel - Germany

Propellers

1x Controllable pitch propeller

Boilers

1x Thermal oil heater, oil fired

1x Thermal oil heater, exhaust heated

Shaft generator

1x AEM-SE 400 S4 500 kW / 625 kVA

Generators

2x Scania DI-16-55M main diesel generatorsets each 380 kW / 475 kVA - 220/400 Volt 50 Hz

Emergency generator

1x Sisu 74.475CTAG-4V diesel generatorset 80 kW / 100 kVA - 220/400 Volt 50 Hz

Compressed air receivers

2x Start air compressors

Bow thruster

1x Wärtsilä FT-125H Fixed pitch propeller electric driven thruster 450 kW

Hatches

Weather deck hatches

Hatch 1: 16,10 x 15,20 m

Hatch 2&3: 25,90 x 15,20 m

Hatch cover type

Folding type, hydraulically operated hatch covers appropriate for 20'/40' containers, 50/60 t stackloads

Cargo hold capacity

Grain: 427.000 ft³

Timber capacity

In hold: 4.534 t / 8.244 m³

On deck: 920 t / 1.673 m³

Total: 5.454 t / 9.917 m³

Max. permitted loads

Tanktop: 14,0 t/m²

Deck equipment

1x Free-fall lifesaving boat for 13 persons

2x Liferafts for 13 persons each

1x Rescue boat

1x Service crane for free-fall lifesaving boat/provision - SWL 4,2 t

Pumps

2x Ballast pumps each 250 m³/h

Tank capacities

Ballast water abt.: 3.000 m³

HFO abt.: 540 m³

MDO abt.: 120 m³

FW abt.: 135 m³

Lub oil abt.: 30 m³

Anchor equipment

Length: 522,50 m

Diameter: 46 mm

Lifting equipment

1x Combined provision/rescue crane

Cargo gear

2x NMF Cranes - SWL 35,0 t each at portside

Accommodation

13 Persons

Manager

Navigia Shipmanagement B.V.
Bornholmstraat 82
9723 AZ Groningen
Netherlands

Operator

Apollo shipping GmbH & Co. KG

Owner

Siegedijk B.V.
Groningen
The Netherlands

Registered owner

Beheermaatschappij MS "SIEGEDIJK" B.V.

Latest data adjustment

31 August 2017
