Westerschelde 22 October 2015 |
|
Name |

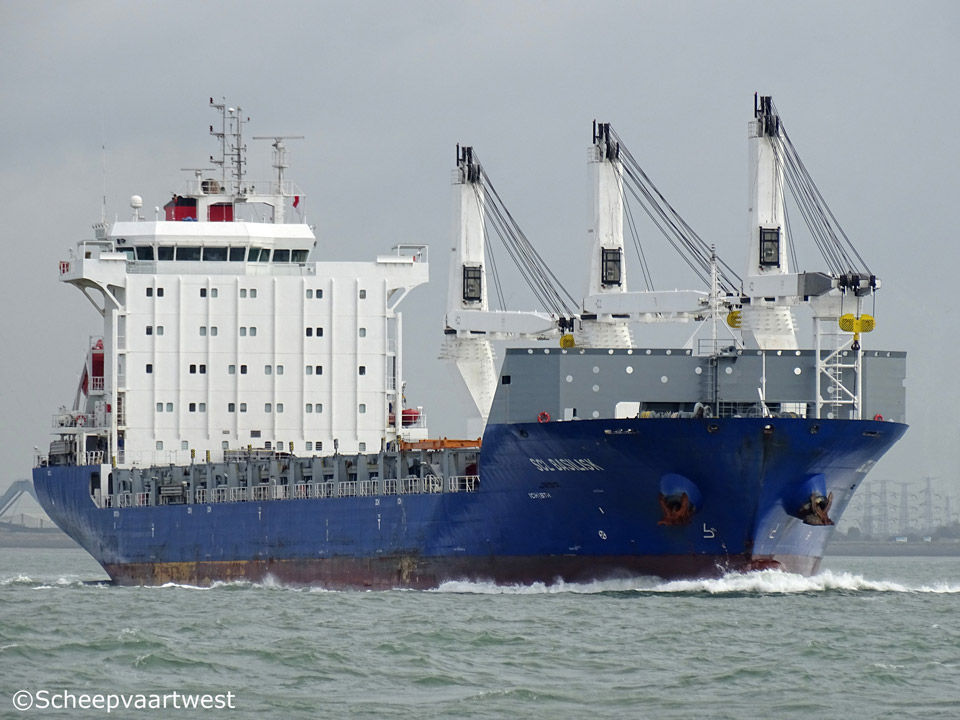

SCL BASILISK |
|
Previous names |
07.2013 - 08.2013 Wuhu Xinlian W0823 |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo |
|
IMO-number |
9539377 |
|
Call sign |
HBLG |
|
Flag |
Switzerland |
|
Port of registry |
Basel |
|
GT |
14.859 t |
|
DWT |
Summer: 17.953 |
|
NT |
6.310 t |
|
Number of 20ft containers |
1.047 (627 on deck) |
|
Reefer plugs |
152 sockets - 440 V |
|
Length |
161,48 m overall 153,52 m between perpendiculars |
|
Breadth |
25,26 m extreme 25,21 m moulded |
|
Draught |
Summer: 8,60 m |
|
Depth |
12,39 m |
|
Speed |
17,00 knots at 8,00 m draft |
|
Built |
2013 |
|
Keel laid |
31.05.2010 |
|
Launch date |
20.11.2010 |
|
Date of completion |
05.08.2013 |
|
Builder |
Wuhu Xinlian Shipbuilding Co. Ltd. |
|
Yard number |
W0823 |
|
Hull material |
Steel |
|
Movable bulkheads |
Tween deck panels can be used as portable bulkheads |
|
Main engine |
1x MAN 6S50MC-C MK8 - 6 cylinder diesel engine 9.960 kW at 127 rpm |
|
Propellers |
1x Fixed propeller |
|
Boilers |
1x Auxiliary boiler, composite - Mission OC |
|
Generators |
3x 6L23/30 H main diesel generatorset each 960 kW |
|
Bow thruster |
1x Controllable pitch propeller 750 kW |
|
Hold/hatch inner dimensions |
3x Box shaped type; partly of slant construction in hold 1 forward and hold 3 aft for bulk cargo Hold 1: 25,50 x 20,40 / 6,20 m forward Hold 2: 53,50 x 20,40 m Hold 3: 14,22 x 20,40 / 12,15 m 20,40 m forward / 43,00 m aft |
|
Cargo hold capacity |
25.434 m³ |
|
Tween deck |
1x Tween deck in all holds, in hold 2 with two heights |
|
Max. permitted loads |
Tank top: 18,0 t/m² Tween deck: 3,5 t/m² Hatch covers: 2,5 t/m² |
|
Tank capacities |
Ballast: 7.663,2 m³ |
|
Anchor equipment |
Length: 605,00 m Diameter: 62 mm |
|
Cargo gear |
3x Electro-hydraulic cranes - SWL 80 / 60 / 50 / 40 t - combined 150 t with team beam Outreach: 8-36 m on port side |
|
Commercial manager |
Enzian Ship Management AG |
|
Registered owner |
SCL Basilisk AG |
|
Latest data adjustment |
22 July 2017 |
