Antwerpen 17 May 2017 |
|
Name |

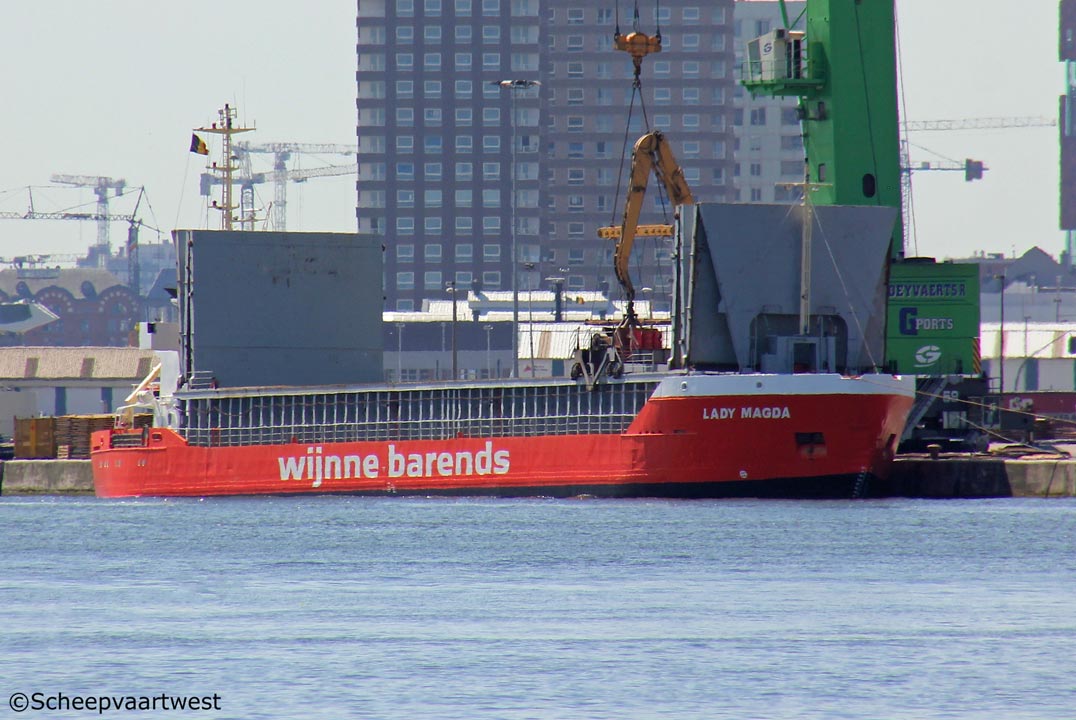

LADY MAGDA |
|
Previous names |
1993 - 05.2000 Magda 05.2000 - 03.2005 Baltic Magda 03.2005 - 06.2010 Magda |
|
Type |
Multi-purpose cargo ships - Single deck |
|
IMO-number |
9054963 |
|
Call sign |
PFRG |
|
Flag |
The Netherlands |
|
Port of registry |
Delfzijl |
|
GT |
2.561 t |
|
DWT |
Summer: 3.212 t |
|
DWCC |
Summer/winter: 3.284 t |
|
NT |
1.289 t |
|
Number of 20ft containers |
136 |
|
Length |
87,96 m overall 84,93 m between perpendiculars |
|
Breadth |
12,58 m moulded |
|
Draught |
Summer: 5,31 m |
|
Air draft |
27,50 m in ballast 22,10 m loaded |
|
Depth |
7,70 m moulded |
|
Speed |
12,5 knots in ballast 11,5 knots loaded |
|
Built |
1993 |
|
Launch date |
14.11.1992 |
|
Date of completion |
06.01.1993 |
|
Builder |
Niestern Sander B.V. |
|
Yard number |
803 |
|
Hull material |
Steel |
|
Continuous decks |
1 |
|
Main engine |
1x Caterpillar Type 3606TA - 4 stroke single acting 6 cylinder 280 x 300 mm diesel engine 1.845 kW / 2.508 hp Manufacturer: Caterpillar Tractor Company Inc., Peoria (Illinois) - U.S.A. |
|
Propellers |
1x Fixed pitch propeller |
|
Generators |
2x Main diesel generators each 85 kW |
|
Bow thruster |
1x 353 hp |
|
Number of holds |
2 Hold 1: 25,59 x 10,30 x 9,58 m Hold 2: 31,80 x 10,30 x 9,58 m |
|
Cargo hold capacity |
Grain/bale: 5.548 m³ - 196.042 ft³ |
|
Timber capacity |
4.300 m³ |
|
Number of hatches |
2 Hatch 1: 25,59 x 10,30 m Hatch 2: 31,80 x 10,30 m |
|
Max. permitted loads |
Tanktop: 10,0 t/m² Hatch: 0,865 t/m² |
|
Tank capacities |
Ballast water: 1.489 m³ MGO: 179 m³ |
|
Manager |
Wijnne & Barends' Cargadoors- en Agentuurkantoren B.V. |
|
Owner |
C.V. m.s. Magda |
|
Registered names & owner |
1993 - 2000 Magda - C.V. m.s. Magda, Delfzijl - The Netherlands 2000 - 2005 Baltic Magda - C.V. m.s. Magda, Delfzijl - The Netherlands 2005 - 2010 Magda - C.V. m.s. Magda, Delfzijl - The Netherlands |
|
Renamed |
08.2017 Atlas Norway, Flekkefjord - Call sign: LADK8 Manager: Venus Shipping APS, Vestbjerg - Denmark Owner: Arundo A.S., Vestbjerg - Denmark |
|
Latest data adjustment |
14 November 2017 |
