Antwerpen 17 May 2017 |
|
Name |

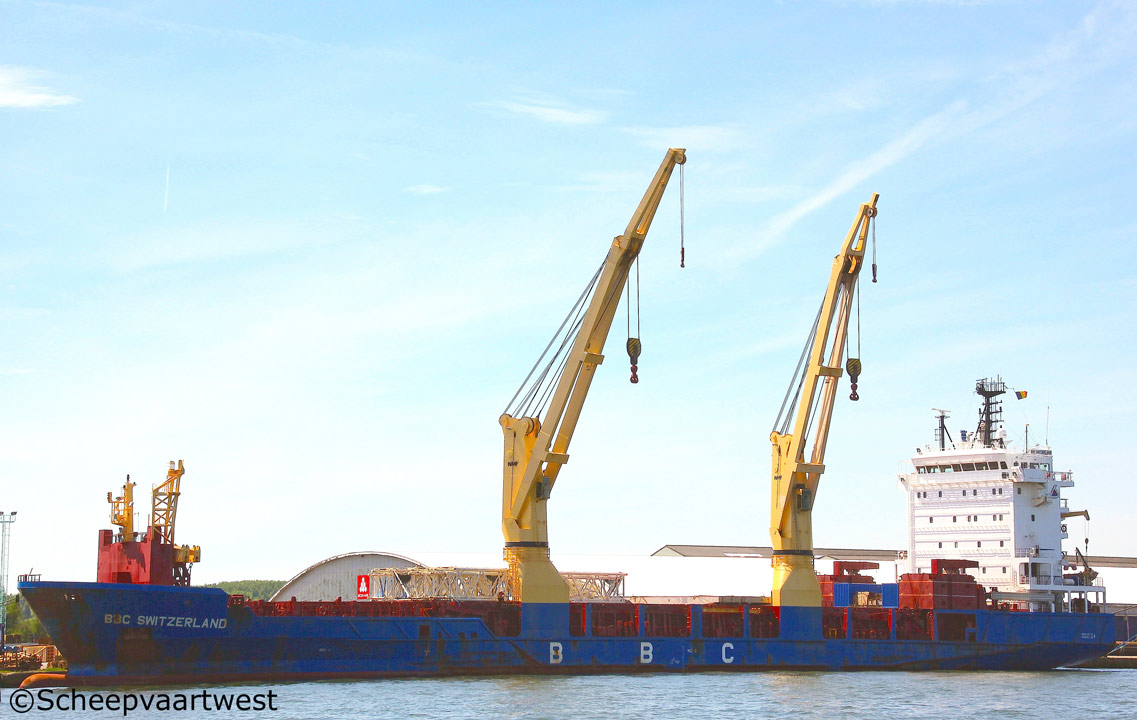

BBC SWITZERLAND |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo - Grain and timber fitted - Heavy Lift Vessel / Tweendecker |
|
IMO-number |
9433315 |
|
Call sign |
DGFL2 |
|
Flag |
Germany |
|
Port of registry |
Leer |
|
GT |
7.014 t |
|
DWT |
7.724,58 t |
|
NT |
3.375 t |
|
Number of 20ft containers |
In hold: 238 On deck: 363 Total: 601 |
|
Number of 40ft containers |
In hold: 112 + 14 TEU On deck: 168 + 27 TEU Total: 280 + 41 TEU |
|
Container capacity 14t |
377 |
|
Reefer plug |
60 at different positions / increase of sockets possible |
|
Length |
119,80 m overall 113,75 m between perpendiculars |
|
Breadth |
20,53 m extreme 20,20 m moulded |
|
Draught |
7,59 m |
|
Height above keel |
38,15 m |
|
Depth |
9,80 m |
|
Speed |
16,5 knots 13,0 knots economic |
|
Built |
2008 |
|
Keel laid |
29.05.2006 |
|
Launch date |
12.07.2008 |
|
Date of completion |
20.12.2008 |
|
Builder |
Tianjin Xingang Shipbuilding Heavy Industry Co., Ltd. |
|
Yard number |
SB338-1 |
|
Hull material |
Steel |
|
Movable bulkheads |
1x Movable; Tweendeck pontoons can be used as bulkhead |
|
Main engine |
1x Mak 7M43 C - 4 stroke 7 cylinder diesel engine 6.300 kW at 500 rpm |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
1x Thermal oil heater, oil fired 1x Thermal oil heater, exhaust heated |
|
Shaft generator |
1x 600 kW |
|
Generators |
3x MAN D2840LE301 main diesel generatorsets each 400 kW |
|
Emergency generator |
1x D2866 LXE20 diesel generatorset 250 kW |
|
Bow thruster |
1x 500 kW |
|
Number of holds |
2 Hold 1: 06,20 x 09,95 m / 12,35 x 15,15 x 10,80 m on maindeck level; hold is prepared with steps according to containersize; boxshaped with tweendeck: upper hold height abt. 5,57 m lower hold height abt. 4,43 m Hold 2: 52,00 x 16,10 x 10,80 m, boxshaped with tweendeck: upper hold height abt. 3,50 m / 5,05 m lower hold height abt. 6,50 m / 4,95 m |
|
Cargo hold capacity |
Grain/Bale: Hold 1: abt. 2.333 m³ / 2.319 m³ Hold 2: abt. 9.167 m³ / 9.132 m³ Total: abt. 11.500 m³ / 11.451 m³ |
|
Hold ventilation |
Up to 20 air-changes per hour |
|
Tweed deck |
N°1: One complete, 6,20 x 4,99 m / 6,15 x 9,95 / 6,20 x 15,15 m N°2: One complete, 52,00 x 16,10 m |
|
Number of hatches |
2 Hatch 1: 06,20 x 10,32 m / 13,00 x 15,53 m Hatch 2: 53,30 x 17,20 m |
|
Hatch type |
Hatch 1: Pontoon type Hatch 2: Folding type, can be partly opened and disconnected |
|
Floor space under deck |
1.986 m² / 21.377 ft² |
|
Floor space on deck |
1.083 m² / 11.657 ft² |
|
Max. permitted loads |
Tanktop: 16,0 t/m² Tween deck 1: 205 t/m² Tween deck 2: 3,0 t/m² On deck: 2,5 t/m² |
|
Tank capacities |
IFO: 775 m³ MGO: 105 m³ Ballast: 3.997 m³ Freshwater: 140 m³ |
|
Anchor equipment |
Length: 550,00 m Diameter: 50 mm |
|
Cargo gear |
2x NMF cranes portside - SWL 250 t Combinable 500 t |
|
Accommodation |
16 persons, 16 cabins |
|
Manager |
Briese Schiffahrts GmbH & Co. KG |
|
Operator |
BBC Chartering GmbH |
|
Registered owner |
Briese Schiffahrts GmbH & Co. KG MS "OSTERMOOR" |
|
Latest data adjustment |
30 May 2017 |
