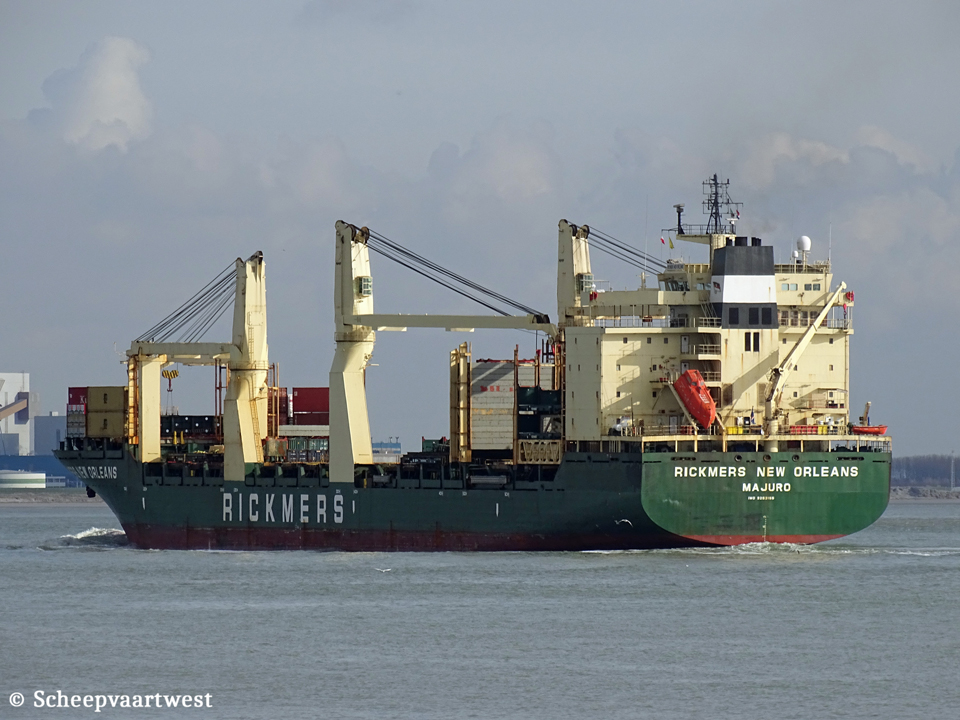

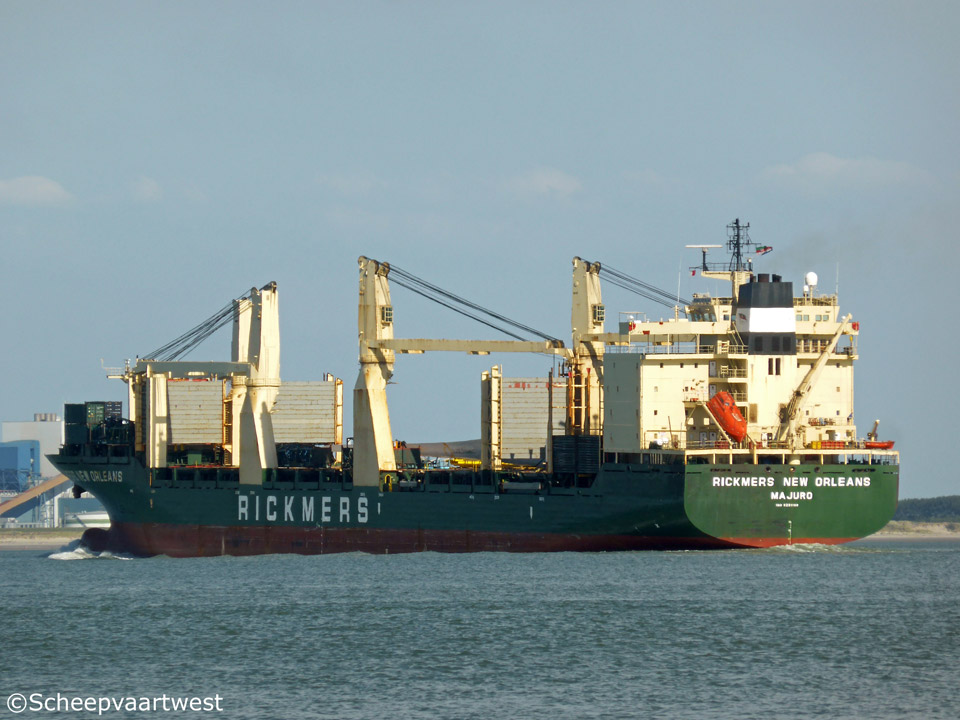

Rickmers New Orleans 01

Westerschelde 08 August 2015



Name

RICKMERS NEW ORLEANS

Type

Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo

IMO-number

9253155

Call sign

CQIJ6

Flag

Portugal

Port of registry

Madeira

Previous flags

2003 - 2016 Marshall Islands, Majuro - call sign: V7FF2

GT

23.119 t

Panama: 23.119 t

Suez: 23.617

DWT

Summer: 29.878 t

NT

9.752 t

Panama: 20.277 t

Suez: 20.277 t

Number of 20ft containers

1.888

Container capacity 14t

1.350

Reefer capacity

150

Length

192,92 m overall

183,56 m between perpendiculars

Breadth

27,80 m extreme

Draught

10,20 m

Depth

15,50 m moulded

Speed

Service: 18,0 knots

Max.: 19,5 knots

Built

2003

Keel laid

27.05.2002

Launch date

03.03.2003

Date of completion

15.07.2003

Builder

Xiamen Shipbuilding Industry Co., Ltd.
China

Yard number

439F

Hull material

Steel

Main engine

1x MAN-B&W-Hudong Heavy Machinery 7S60MC-C - 2 stroke 7 cylinder diesel engine output 15.875 kW

Propellers

1x Fixed propeller

Boilers

1x Auxiliary boiler, oil/gas fired

1x Auxiliary boiler, exhaust gas heated

Generators

2x MAN 7L23/30H main diesel generatorsets each 1.060 KW

1x MAN 6L23/30H main diesel generatorset 910 kW

Emergency generator

1x MAN D2866TE diesel generatorset

Bow thruster

1x 900 kW

Number of holds

5

Hold 1:

15,40 x 12,80 m

20,40 x 12,80 m

Hold 2 (twin):

25,60 x 10,32 m

25,60 x 10,32 m

Hold 3 (twin):

32,00 x 10,32 m

32,00 x 10,32 m

Hold 4 (twin):

25,60 x 10,32 m

25,60 x 10,32 m

Hold 5:

12,80 x 20,64 m

Cargo hold capacity

34.600 m³

Unobstructed deck space

90,00 x 25,00 m

Tank capacities

Ballast: 12.196,5 m³

Cargo gear

1x Crane forward - SWL 45 t

2x Cranes each SWL 320 t - combined 640 t

1x Crane aft - SWL 100 t

Manager

Rickmers Shipmanagement GmbH & Cie. KG
Neumühlen 19
22763 Hamburg
Germany

Operator

Rickmers Line

Registered owner

Wilbert Shipping Co. Ltd.

Latest data adjustment

08 May 2017
