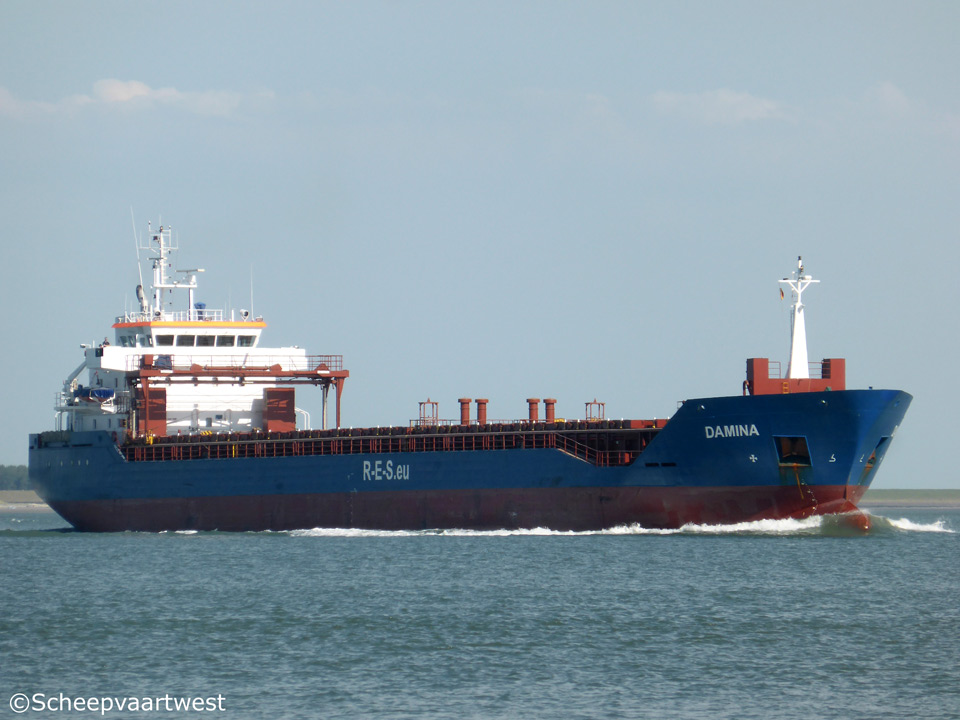

Damina 01

Westerschelde 08 August 2015

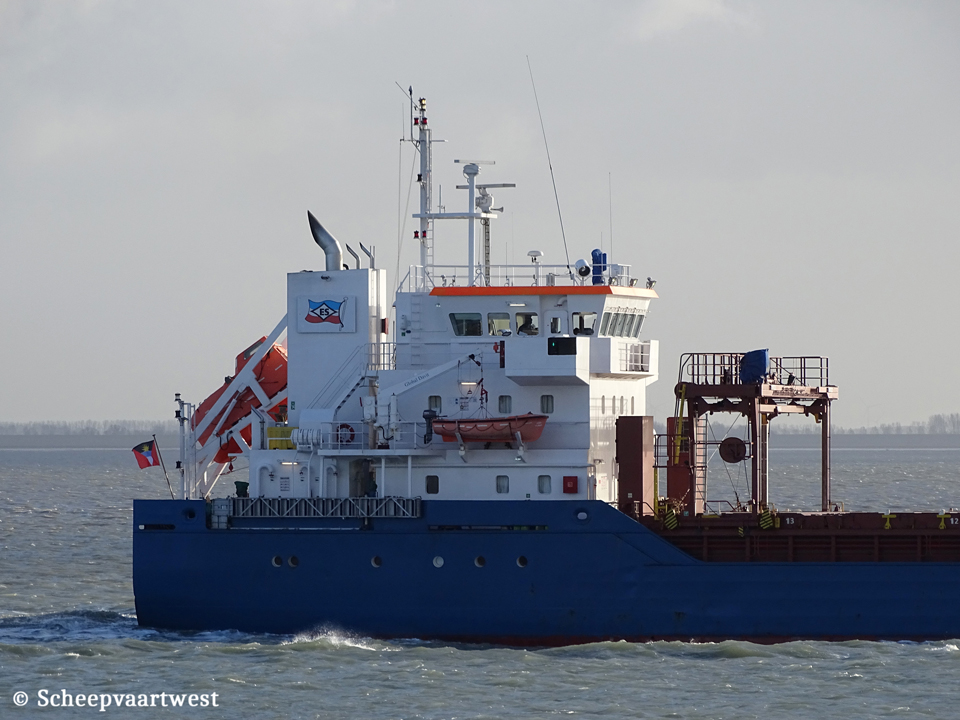

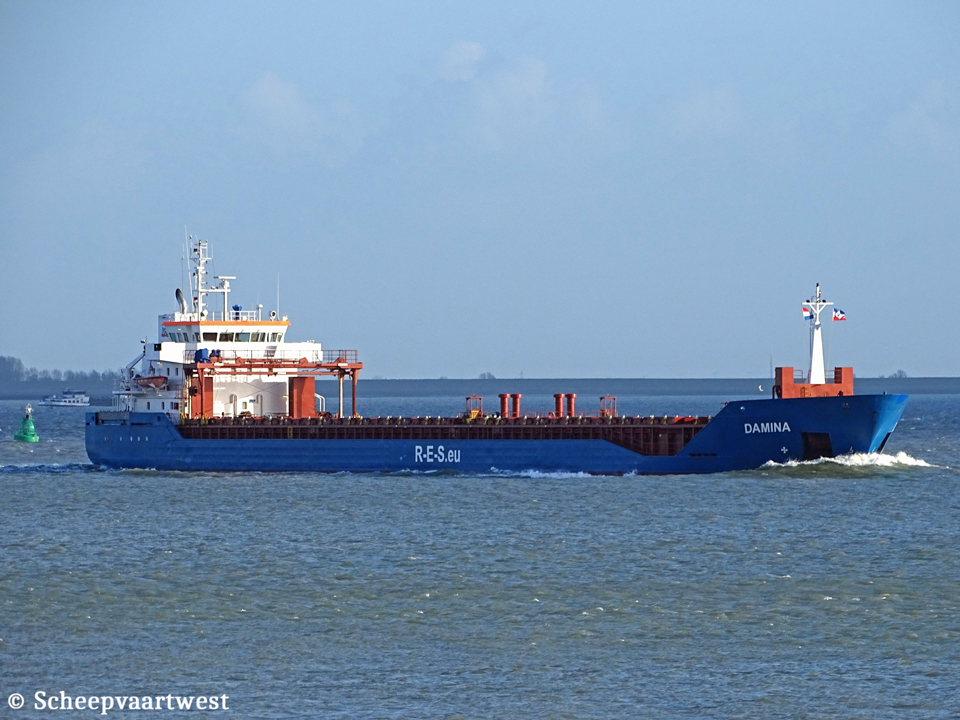

Damina IMO 9433365 02   Damina IMO 9433365 03
Westerschelde 09/01/19   Westerschelde 09/01/19









Name

DAMINA

Type

Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo - singledecker

IMO-number

9433365

Call sign

V2EW2

Flag

Antigua & Barbuda

Port of registry

St. John's

GT

4.723 t

DWT

Summer: 7.571 incl. bulkheads

DWCC

Summer: 7.200 t

Winter: 6.900 t

NT

2.724 t

Number of 20ft containers

265

Length

116,08 m overall

109,78 m between perpendiculars

Breadth

15,90 m extreme

15,80 m moulded

Draught

Summer: 6,38 m

Air draft

21,78 m ballast

Depth

8,90 m moulded

Speed

13,5 knots

Built

2010

Keel laid

01/10/2009

Launch date

10/07/2009

Date of completion

17/03/2010

Builder

Bodewes Shipyards B.V.

Hoogzand

The netherlands

Yard number

773

Hull material

Steel

Movable bulkheads

1x Movable bulkhead - Various positions

Main engine

1x MaK 6M32C - 4 stroke 6 cylinder 320 x 480 mm combustion engine 2.999 kW at 600 rpm

Builder: Caterpillar Motoren GmbH & Co.KG, Kiel - Germany

Propellers

1x Controllable pitch propeller

Boilers

1x Auxiliary boiler, oil/gas fired

Shaft generator

1x 435 kW

Generators

2x Sisu 84.494 CTAG-4 V main diesel generatorsets each 250 kW

Emergency generator

1x Sisu 47.492 CTAG-4 V diesel generatorset

Bow thruster

1x 300 kW

Number of holds

2x Bow sid

Hold 1: 38,25 x 13,25 x 9,00 m

Hold 2: 44,25 x 13,25 x 9,00 m

Cargo hold capacity

9.440 m³ / 333.400 ft³

Number of hatches

2

Hatch 1: 38,25 x 13,25 m

Hatch 2: 44,25 x 13,25 m

Hatch cover type

Pontoon type

Max. permitted loads

Tanktop: 15,0 t/m²

On deck: 2,60 t/m²

Tank capacities

Ballast: 3.120,12 m³

Anchor equipment

Length: 467,50 m

Diameter: 40 mm

Manager

Reederei Erwin Strahlmann GmbH & Co. KG

Schleusenstraße 10

25541 Brunsbüttel

Germany

Operator

R.E.S. Chartering GmbH

Fuhlentwiete 10

20355 Hamburg

Germany

Previous owners

LAPPAN Shipping & Trading GmbH & Co. KG

Reanmed

2021 Anne

G.D. Luxembourg, Luxembourg - Call sign: LXBQ

Owner: Vertom Anne GmbH & Co KG - Germany

Manager: Vertom Bereederungs GmbH - Germany

Latest data adjustment

13 August 2022
