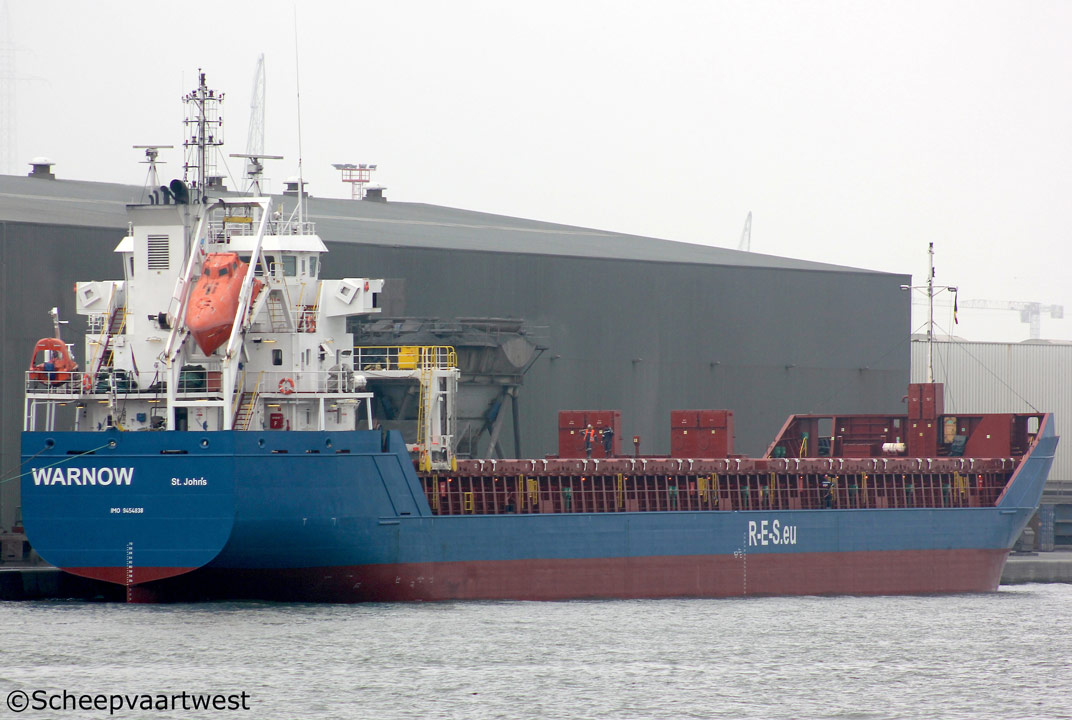

Warnow 01

Antwerpen 11 July 2014



Name

WARNOW

Previous names

2009 Built as: Laga

06.2009 - 08.2013 Blue Lion

Type

Multi-purpose dry cargo ship - Heavycargo - Equipped for carriage of containers

IMO-number

9454838

Call sign

V2DN4

Flag

Antigua & Barbuda

Port of registry

St. John's

GT

4.255 t

DWT

Summer: 6.157 t incl. bulkheads

DWCC

Summer: 5.700 t

Winter: 5.300 t

NT

2.341 t

Number of 20ft containers

256

Length

114,40 m overall

108,30 m between perpendiculars

Breadth

14,40 m extreme

Draught

6,04 m

Air draft

25,95 m ballast

Depth

8,10 m

Speed

Max.: 13,0 knots

Service: 12,0 knots

Built

2009

Keel laid

10.01.2008

Launch date

28.08.2008

Date of completion

12.06.2009

Builder

Jiangsu Yangzi Changbo Shipbuilding Co., Ltd.
China

Yard number

CBSY06-004

Hull material

Steel

Hull type

Single hull

Watertight compartments

5

Movable bulkheads

2x Units movable various positions

Main engine

1x Mak 9M25 C - 4 stroke 9 cylinder 255 x 400 mm diesel engine 2.970 kW / 4.039 hp at 750 rpm

Builder: Caterpillar Motoren GmbH & Co. KG - Germany

Propellers

1x Controllable pitch propeller - aft at 194 rpm

Boilers

1x Auxiliary boiler, oil/gas fired - 4,0 bar / 8,80 m³

Shaft generator

1x 424 kW

Generators

2x Sisu 84.494 CTAG - 4V main diesel generatorsets each 188 kW

Emergency generator

1x Sisu 49.492 CTAG - 4V diesel generatorset

Bow thruster

1x 350 kW

Number of holds

2

Hold 1: 37,37 x 11,70 x 8,99 m

hold 2: 43,49 x 11,70 x 8,99 m

Cargo hold capacity

8.500 m³ / 300.000 ft³

Number of hatches

2

Hatch type

Pontoon type

Max. permitted loads

Tanktop: 15,0 t/m²

Deck: 1,5 t/m²

Tank capacities

Ballast: 3.025,4 m³

Fuel oil: 402,4 m³

Anchor equipment

Length: 467,50 m

Diameter: 40 mm

Lifting equipment

1x Gantry crane

Manager

Reederei Erwin Strahlmann GmbH & Co. KG

Schleusenstraße 10
25541 Brunsbüttel

Germany

Operator

R.E.S. Chartering GmbH
Fuhlentwiete 10
20355 Hamburg
Germany

Registered owner

Roland Ship Administration GmbH & Co. KG

Germany

Latest data adjustment

20 March 2017
