Westerschelde 04 January 2017 |
|
Name |

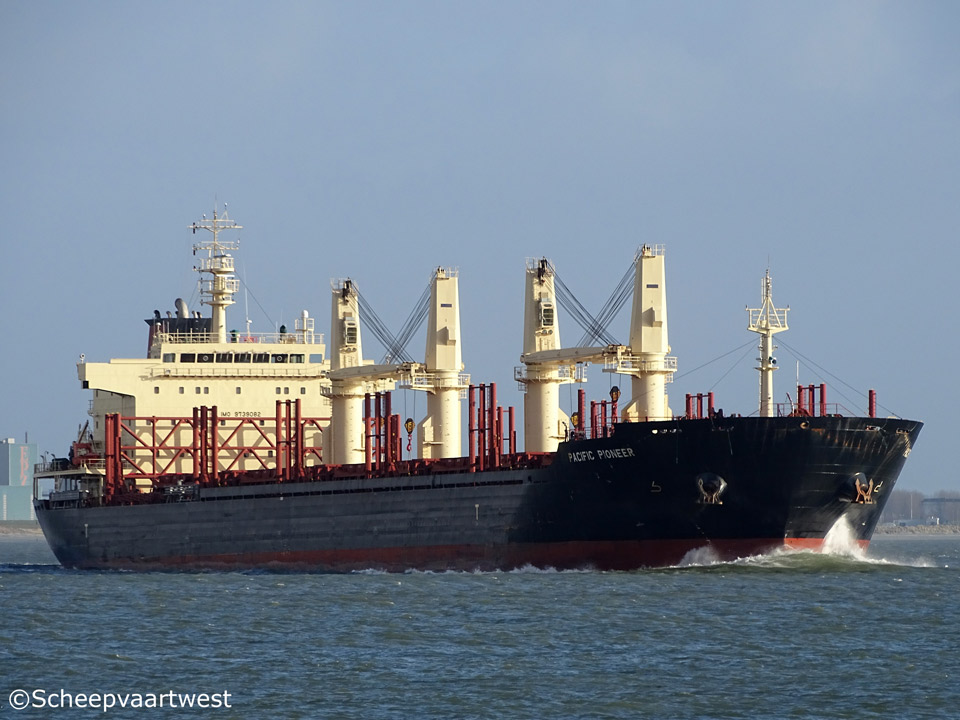

PACIFIC PIONEER |
|
Type |
Handysize Bulk/Lumber carrier - Strengthened for heavy cargo loading |
|
IMO-number |
9739082 |
|
Call sign |
VROC7 |
|
Flag |
Hong Kong - China |
|
Port of registry |
Hong Kong |
|
GT |
23.872 t registered |
|
DWT |
Summer: 35.480 t |
|
NT |
11.326 t registered |
|
Length |
179,90 m overall |
|
Breadth |
30,00 m moulded |
|
Draught |
Summer: 10,16 m |
|
Moulded L x B x D |
171,50 x 30,00 x 14,80 m |
|
Registered L x B x D |
172,63 x 30,00 x 14,80 m |
|
Air draft |
34,17 m Lightship |
|
Keel to mast |
42,50 m |
|
Freeboard |
4.679 mm |
|
Depth |
14,80 m moulded |
|
Speed |
14,3 knots |
|
Built |
2015 |
|
Keel laid |
25.03.2014 |
|
Launch date |
23.12.2014 |
|
Date of completion |
11.02.2015 |
|
Builder |
Taizhou Maple Leaf Shipbuilding Co., Ltd. China |
|
Yard number |
MLBC35000-058 |
|
Hull material |
Steel |
|
Main engine |
1x MAN-B&W 6S46ME-B8.2 - 2 stroke single acting 6 cylinder 460 x 1.932 mm diesel engine 5.889 kW / 8.007 hp at 114,0 rpm |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 440 mm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary vertical boiler - 7,0 bar Evaporation: 2,09 t/h Manufacturer: Zhangjiagang Greens Shazhou Boiler Co., Ltd. |
|
Generators |
4x Generators - 2.403 kVA |
|
Number of holds |
5 |
|
Cargo hold capacity |
Bale: 44.727 m³ Grain: 46.283 m³ |
|
Number of hatches |
5 4x 18,80 x 20,85 m 1x 14,00 x 19,64 m |
|
Tank capacities |
Fuel oil: 2.083 m³ Fresh water: 332 m³ ballast capacity: 14.669 t |
|
Cargo gear |
4x Deck cranes - SWL 30,5 t each |
|
Manager |
ID Shipmanagement Limited DK-2740 Skovlunde Denmark |
|
Registered owner |
K/S Danskib 86 |
|
Latest data adjustment |
17 March 2017 |
