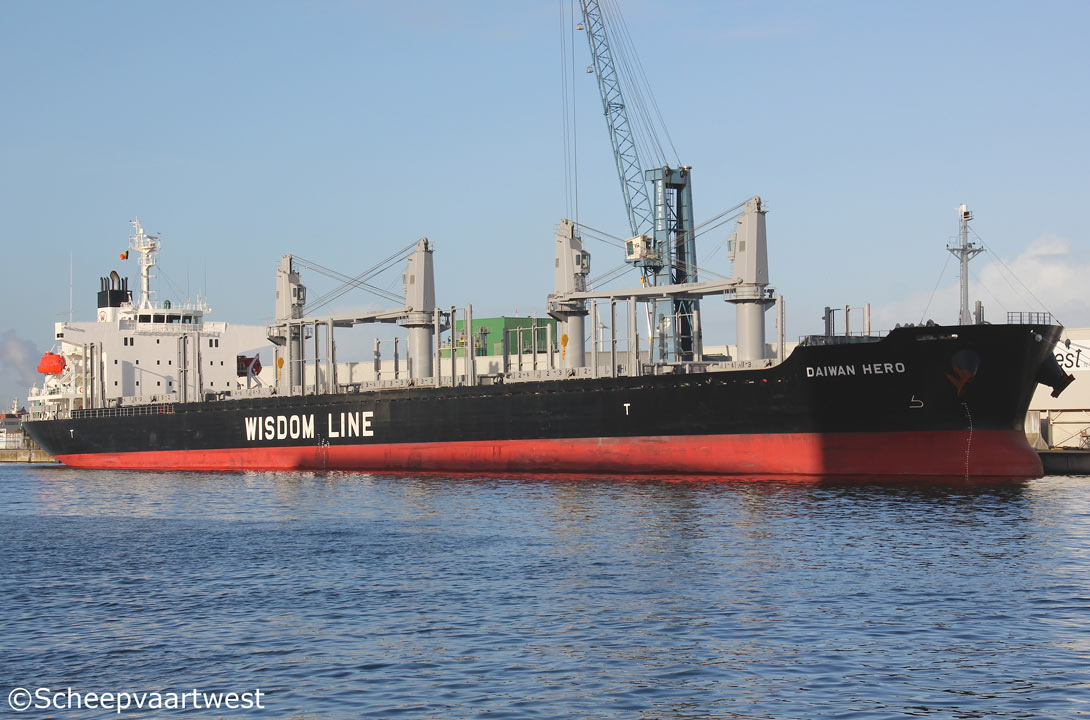

Daiwan Hero 01

Antwerpen 02 January 2017

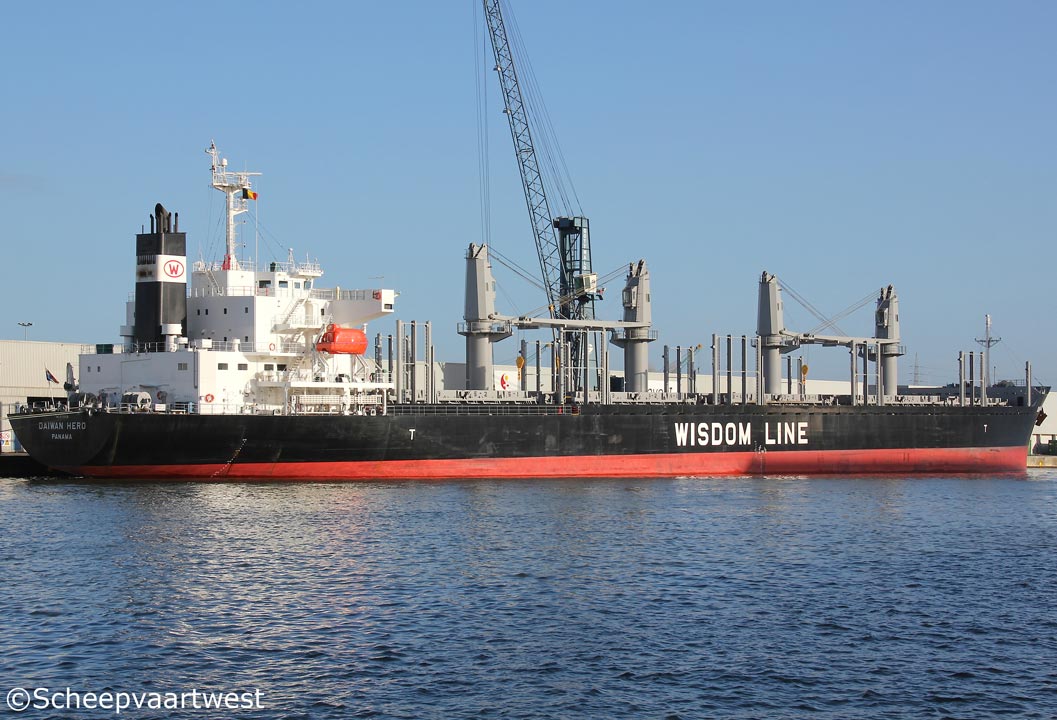

Daiwan Hero 02
Antwerpen 02/01/2017



Name

DAIWAN HERO

Type

Bulk carrier / Lumber carrier

IMO-number

9709336

Call sign

3EXQ7

Flag

Republic of Panama

Port of registry

Panama City

GT

21.525 m registered

DWT

34.376 t

NT

11.201 t registered

Length

179,96 m overall

Breadth

30,00 m moulded

Draught

Summer: 9,82 m

Moulded L x B x D

174,00 x 30,00 x 14,05 m

Registered L x B x D

174,54 x 30,00 x 14,05 m

Freeboard

4.276 mm

Depth

14,05 m moulded

Speed

Max.: 18,8 knots

Built

2016

Keel laid

14.10.2015

Launch date

30.05.2016

Date of completion

05.08.2016

Builder

Namura Shipbuilding Co., Ltd. IMari Works
Japan

Yard number

397

Hull material

Steel

Hull type

Double hull construction applied to all cargo holds

Main engine

1x 2 stroke single acting 6 cylinder 460 x 1.932 mm diesel engine 6.260 kW at 110 rpm

Manufacturer: Makita Corporation

Propeller shaft

1x Oil lubrication shaft without monitoring device

Diameter: 450 mm

Propellers

1

Boilers

1x Auxiliary vertical boiler - 6,9 bar

Evaporation: 2,09 t/h

Manufacturer: Osaka Boiler Mfg. Co., Ltd.

Generators

4x Generators - 1.805 kVA

Cargo hold capacity

Bale: 42.991,2 m³

Grain: 44.146,9 m³

Tank capacities

Fuel oil: 1.449,2 m³

Fresh water: 211,4 m³

Operator

Wisdom Line

Owner

Daiwan Hero S.A.

Latest data adjustment

31 January 2017
