Rig 01

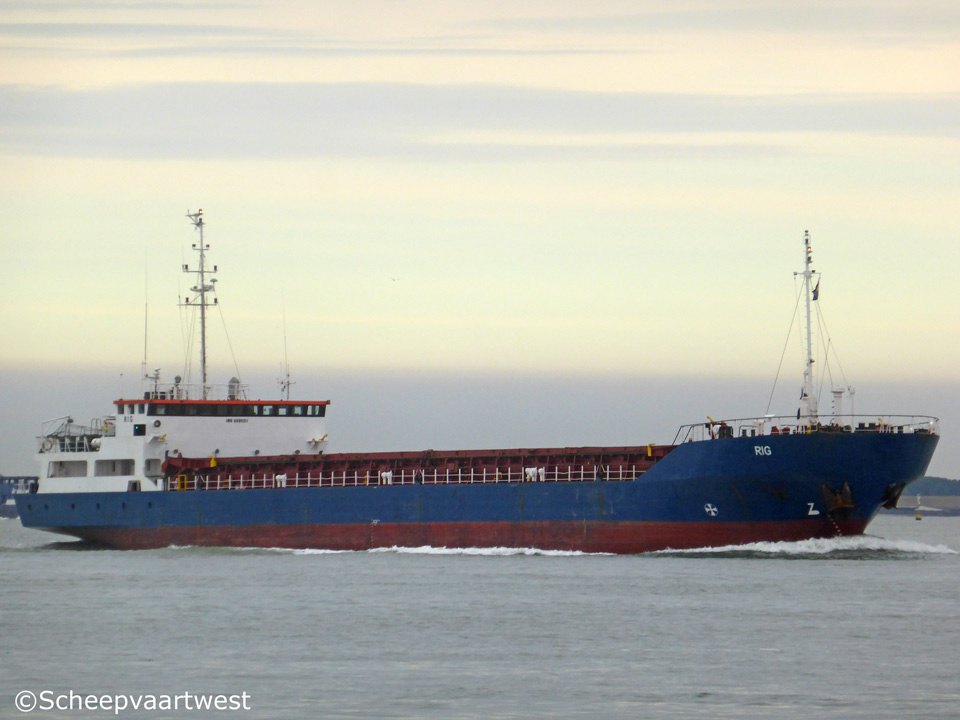

Westerschelde 11 August 2015



Name

RIG

Previous names

1989 - 10.1993 Port Sado

10.1993 - 02.1995 Amrum

02.1995 - 2000 Lady Anna

2000 - 01.2005 Borneiro

Type

General cargo ship - heavy cargo -equipped for carriage of containers

IMO-number

8801137

Call sign

9HBU8

Flag

Malta

Port of registry

Valletta

GT

2.351 t

DWT

Summer: 2.809 t

NT

1.149 t

Number of 20ft containers

202

Length

87,00 m overall

82,73 m between perpendiculars

Breadth

13,00 m

Draught

6,07 m

Freeboard

2.037 mm

Depth

7,10 m

Speed

11,5 knots

Built

1989

Launch date

25.06.1989

Delivery date

05.09.1989

Builder

ENVC - Estaleiros Navais De Viana Do Castelo, S.A.
Viana Do Castelo
Portugal

Yard number

152

Hull material

Steel

Continuous decks

2

Main engine

1x Alpha-MAN-B&W 8L23/30 - 4 stroke 8 cylinder 300 x 225 mm diesel engine 1.080 kW / 1.467 hp at 825 rpm

Built: 1989

Builder: MAN B&W Diesel A/S, Frederikshavn - Denmark

Propellers

1x Screw propeller controllable pitch - aft at 170 rpm

Electric installations

Power voltage: 380 V

Lighting voltage: 220 V

Shaft generator

1x 270 kVA - 216 kW

Generators

2x Main diesel generatorsets each 137 kVA - 110 kW - 181 hp

Emergency generator

1x Diesel generatorset 130 kVA - 104 kW - 113 hp

Number of holds

1

Cargo hold capacity

4.630 m³

Cargo hatchways

1

57,30 x 10,20 m

Manager

Astramar Transport Ltd.

Katrīnas dambis 14
Ziemeļu rajons
Rīga, LV-1045
Letland

Registered owner

Rig Shipping Ltd.

Previous owners

Rig Shipping Ltd.

Helsinki
Finland

Latest data adjustment

20 January 2017
