Isadora - IMO 9180372

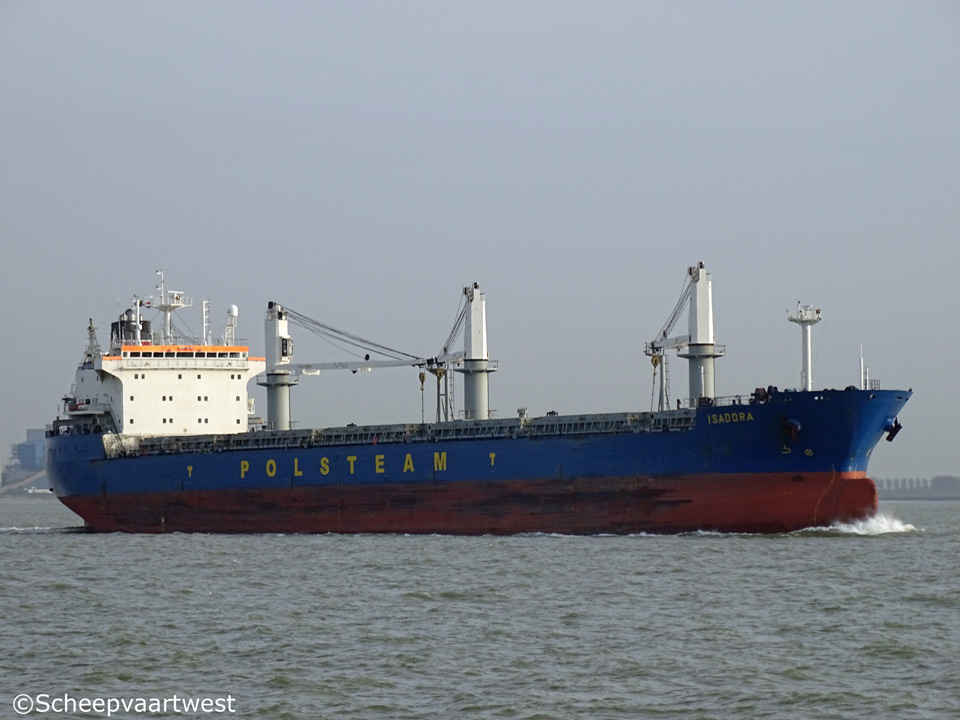

Westerschelde 17 December 2015

Name

ISADORA

Type

Bulk carrier - Carriage of dangerous goods - Handy-size

IMO-number

9180372

Call sign

P3LA8

Flag

Cyprus

Port of registry

Limassol

GT

21.387 t registered

Suez: 21.959,72 t

DWT

Summer: 34.948 t

NT

11.629 t registered

Panama: 17.837,28 t

Suez: 19.004,96 t

Length

199,90 m overall

191,00 m between perpendiculars

Breadth

23,60 m moulded

Draught

10,67 m

Freeboard

4.674 mm

Depth

15,30 m moulded

Speed

15,6 knots

Built

1999

Keel laid

05.03.1999

Delivery date

05.08.1999

Builder

Mitsui Engineering & Shipbuilding Company Ltd., Chiba Works

Ichihara
Japan

Yard number

1468

Hull material

High strength steel

Ordinary strength steel

Watertight bulkheads

7

Main engine

1x MAN B&W 5S50MC-C - 5 cylinder 500 x 2.000 mm diesel engine 6.728,9 kW

Manufacturer: Mitsui Engr. & Shipbuilding Co., Ltd.

Propellers

1x Controllable pitch propeller

Boilers

1x Composite auxiliary boiler

Generators

3x Main diesel generatorsets each 500 kW

Number of holds

6

Hold 1: 21,60 x 6,40/16,00m

Hold 2-3-4-5: 26,40 x 16,00 m

Hold 6: 26,40 x 16,00 /11,00 m

Cargo hold capacity

Bale: 43.830 m³

Grain: 45.632 m³ / 1.611.473 ft³

Number of hatches

6

Hatch 1: 21,60 x 14,04 m

Hatch 2-3-4-5-6: 20,00 m x 14,04 m

Max. permitted loads

Tank top: 20 t/m²

Number of tanks

Ballast: 26

Fuel oil: 8

Lubricating oil: 5

Fresh water: 4

Waste water: 3

Slop: 3

Diesel oil: 2

Sludge: 1

Chain: 1

Hydraulic oil: 1

Tank capacities 100%

Freshwater: 445 m³

Fuel Oil: 1.736 m³ / 1.631,84 t
MDO: 117,5 t

Tank Ballast: 8172 m³

Lifting equipment

1x Engine room crane - SWL 3,0 t

Manufacture: Sekigahara Seisakusho Ltd., Gifu - Japan
2x Provision crane - SWL 3,0 t port & stbd
Manufacture: Kyoritsu Kikai Co. Ltd., Hiroshima - Japan

Cargo gear

3x MacGregor deck cranes - SWL 30,0 t each

Manager

Isadora Shipping Limited
227 Arch Makarios III Avenue
Doma Building
Limassol
Cyprus

Operator

Polska Żegluga Morska
Polsteam

Polish Steamship Co.
Pl. Rodła 8
70-419 Szczecin
Poland

Registered owner

Isadora Shipping Limited

Latest data adjustment

07 January 2017
