Westerschelde 05 December 2016 |
|
Name |

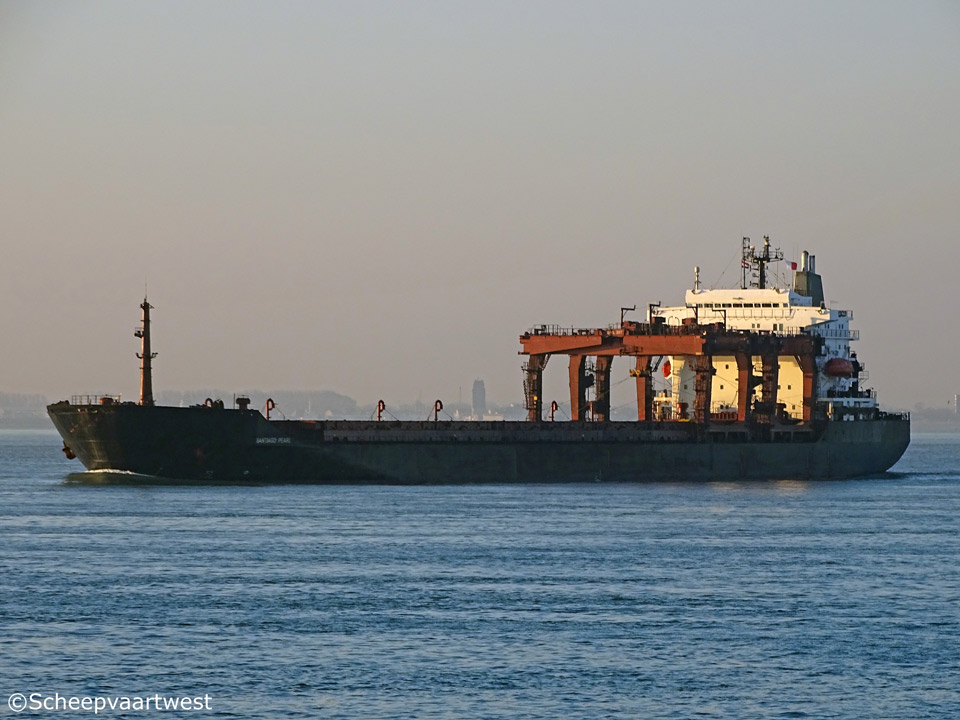

SANTIAGO PEARL |
|
Previous names |
1985 - 04.2013 Petersfield |
|
Type |
General cargo ship - Timber carrier - Open hatch box shaped |
|
IMO-number |
8309713 |
|
Call sign |
C6JE4 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
GT |
27.818 t registered |
|
DWT |
Summer: 41.649 t |
|
NT |
13.185 t registered |
|
Number of 20ft containers |
1.584 |
|
Length |
187,51 m overall |
|
Breadth |
29,00 m moulded |
|
Draught |
Summer: 12,32 m |
|
Moulded L x B x D |
178,90 x 29,00 x 16,90 m |
|
Registered L x B x D |
179,82 x 29,00 x 16,90 m |
|
Freeboard |
Summer: 4.620 mm |
|
Depth |
16,90 m moulded |
|
Speed |
Service: 13,9 knots |
|
Built |
1985 |
|
Keel laid |
05.09.1984 |
|
Launch date |
20.12.1984 |
|
Date of completion |
28.03.1985 |
|
Builder |
Hyundai Heavy Industries Co., Ltd. |
|
Yard number |
318 |
|
Hull material |
Steel |
|
Hull type |
Double skin |
|
Main engine |
HHI/B&W 6L60MCE -2 stroke single acting 6 cylinder 600 x 1.944 mm diesel engine 8.232 bhp / 6.055 kW at 95,0 rpm Manufacturer: Hyundai Heavy Industries Co., Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 520 mm |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary Vertical boiler - 6,9 bar Evaporation: 2,26 t/h Manufacturer: Osaka Boiler Mfg. Co., Ltd. |
|
Generators |
3x Wärtsilä main diesel generatorsets each 750 kW |
|
Number of holds |
7 |
|
Hold capacity |
Bale: 46.280 m³ Grain: 47.671 m³ |
|
Number of hatches |
7 |
|
Hatch type |
Hatch covers with cement feeder holes |
|
Tank capacities |
Fuel oil: 2.25 m³ Fresh water: 360 m³ |
|
Cargo gear |
2x Mitsui-Paceco Gantry cranes - SWL 35,0 t each |
|
Manager |
SMT Shipping Poland sp. z o.o. |
|
Registered owner |
Santiago Pearl Shipping Company Ltd. |
|
Latest data adjustment |
28 December 2016 |
