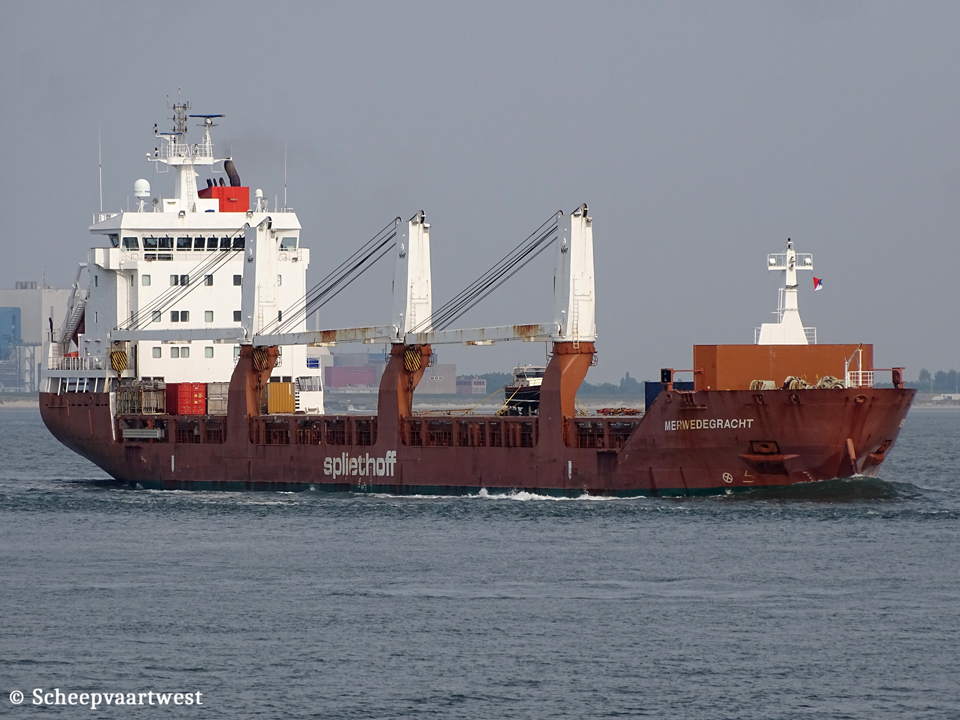

Merwedegracht IMO 9571519 03

Westerschelde 07 May 2020

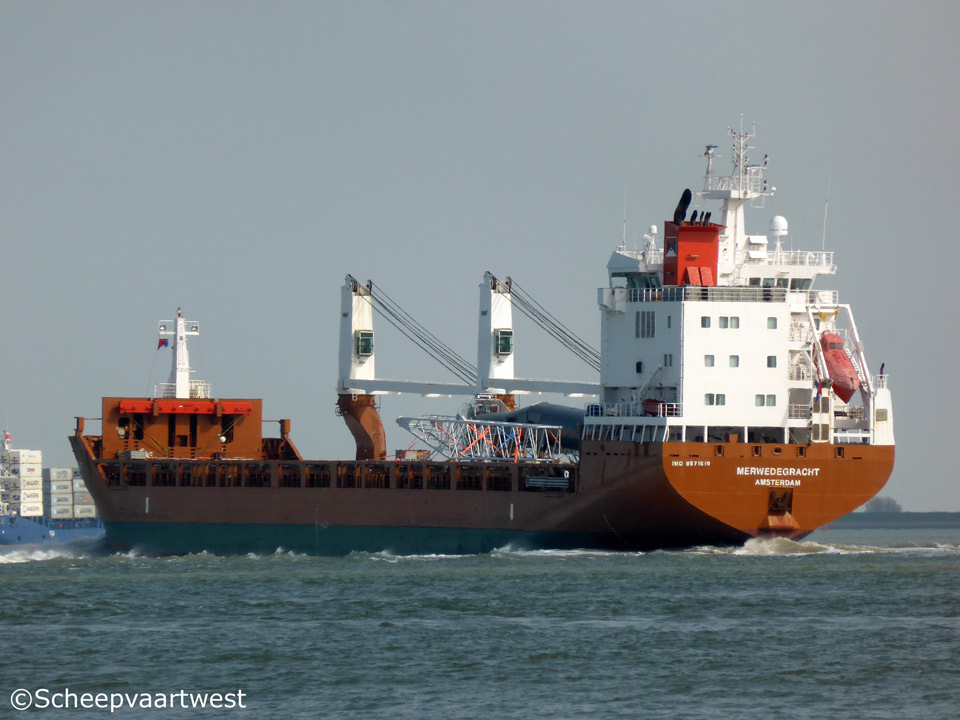

Merwedegracht 02
Westerschelde 16/04/15









Name

MERWEDEGRACHT

Type

General dry cargo ship - heavycargo - equipped for carriage of containers

IMO-number

9571519

Call sign

PCJE

Flag

The Netherlands

Port of registry

Amsterdam

GT

9.524 t

DWT

12.200 t excl. tweendeck

11.780 t incl. tweendeck

NT

4.402 t

Number of 20ft containers

696

Length

142,10 m overall

137,74 m between perpendiculars

Breadth

18,90 m moulded

Draught

Summer: 8,77 m

Freeboard

3.182 mm

Depth

11,74 m moulded

Speed

14,5 knots

Built

2011

Date of completion

08/2011

Builder

Zhejiang Ouhua Shipyard

Zhoushan

People's Republic China

Yard number

593

Hull material

Steel

Movable bulkheads

Removable pontoons for up to 10 compartments at TEU interval

Continuous decks

1

Main engine

1x Wärtsilä 6L46A - 4 stroke single acting 6 cylinder 460 x 580 mm combustion engine 5.430 kW / 7.378 bhp at 500 rpm

Builder: Wartsila Italia SPA, Trieste -Italia

Propellers

1x Screw propeller controllable pitch - aft at 132,0 rpm

Boilers

1 CHR Heatmaster 108,00 m² - 10,0 bar

1 CHO Heatmaster 26,40 m² - 10,0 bar

Diesel generators

3x Main diesel generatorsets each 563 kVA - 450 kW - 679 hp

Emergency generators

1x Diesel generatorset 563 kVA - 450 kW - 659 hp

Bow thruster

1x 500 kW

Number of holds

2

Hold capacity

Grain & bale: 15.640 m³ / 552.100 ft³

Hatches

Weather deck:

N°1: 25,60 x 15,80 m

N°2: 64,00 x 18,80 m

Steel, end folding/rolling/lift away type

Tween deck:

N°1: 25,60 x 15,80 m

N°2: 57,60 x 15,80 m

Consisting: 14 steel pontoons:

10x 6,35 x 15,80 m

3x 5,24 x 15,80 m

1x 3,30 x 15,80 m

Floor space

Tanktop: 1.242 m²

Tweendeck: 1.415 m²

Weather deck: 1.596 m²

Max. Permitted loads

Weather deck hatch covers: 2,0 t/m²

Tweendeck hatch covers: 4,5 t/m²

Tanktop: 20,0 t/m²

Tank capacities

Fuel: 1.234,5 m³

Cargo gear

3x Deck cranes - SWL 80,0 t each on starboard side

Manager

Spliethoff's Bevrachtingskantoor B.V.

Radarweg 36

1042 AA Amsterdam

The Netherlands

Owner

Spliethoff group

Registered owner

C.V. Scheepvaartonderneming Merwedegracht

Care of Spliethoff's Bevrachtingskantoor BV

Radarweg 36

1042 AA Amsterdam

The Netherlands

Latest data adjustment

09 August 2022
