Vlissingen 07 October 2016 |
|
Name |

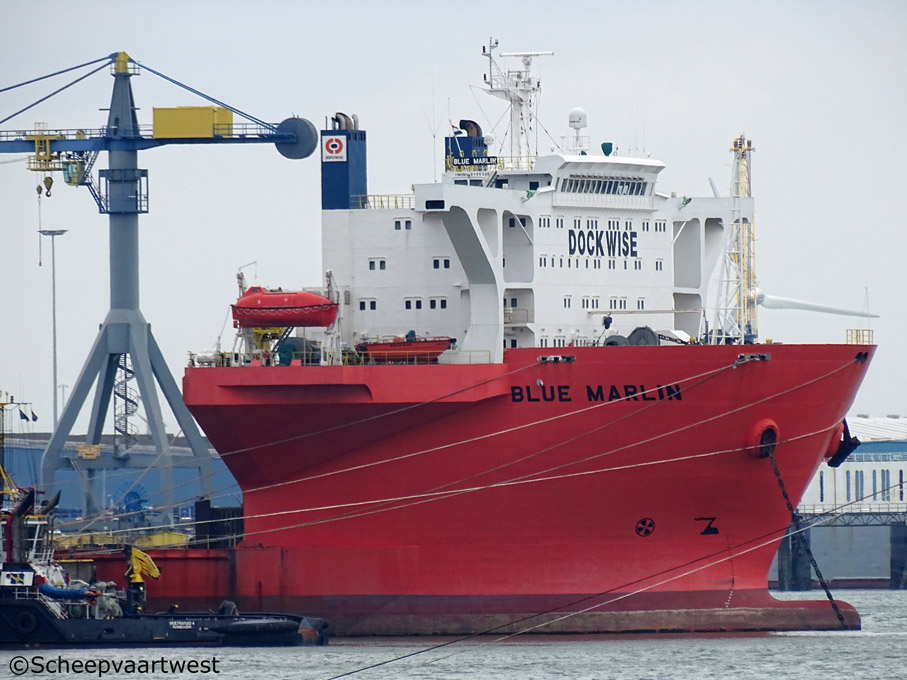

BLUE MARLIN |
|
|
Type |
Semi Submersible Heavy lift Vessel - Deck cargo ship - Heavy lift vessel |
|
|
IMO-number |
9186338 |
|
|
Call sign |
PJFM |
|
|
Flag |
Curaçao |
|
|
Port of registry |
Willemstad |
|
|
Previous flags |
2004 - 2004 Republic of Panama, Panama City - Call sign: H3AL 2004 - 10.2010 Willemstad (NA) / Netherlands Antilles - Call sign: PJFM |
|
|
GT |
51.821 t |
|
|
DWT |
Summer: 76.061 t |
|
|
NT |
15.547 t |
|
|
Length |
224,80 m overall 206,50 m between perpendiculars |
|
|
Breadth |
63,08 m moulded |
|
|
Draught |
Max.: 10,24 m |
|
|
Depth |
13,30 m |
|
|
Speed |
14,5 knots |
|
|
Built |
2000 2003 extended with 21,00 m at Hyundai Mipo Dockyard, Ulsan - South Korea |
|
|
Keel laid |
08.04.1999 |
|
|
Launch date |
23.12.1999 |
|
|
Date of completion |
25.04.2000 |
|
|
Builder |
CSBC - China Shipbuilding Corporation |
|
|
Yard number |
726 |
|
|
Hull material |
Steel |
|
|
Continuous decks |
1 |
|
|
Main engine |
1x MAN B&W 8S50MC-C - 2 stroke single acting 8 cylinder500 x 2.000 mm diesel engine 12.640 kW / 17.160 hp |
|
|
Propellers |
1x Controllable pitch propeller |
|
|
Boilers |
Auxiliary boiler, composite Auxiliary boiler, oil/gas fired |
|
|
Generators |
3x Wärtsilä W8L32 diesel generatorsets 1x MAN 8L23/30 H diesel generatorset |
|
|
Emergency generator |
1x Cummins LTA-10-G1 diesel generatorset |
|
|
Azimuth thrusters |
2x 4.500 kW retractable |
|
|
Bow thruster |
2.000 kW |
|
|
Deck space |
|
|
|
Deck area |
11.227 m² |
|
|
Total installed power |
23.620 kW |
|
|
Ballasting |
4x main ballast pumps 3.300 m³/h at 35,00 m head 1x Fire gen. service pump 90 m³/h at 80,00 head or 240 m²/h at 20,00 m head 1x Fire bilge pump 90 m³/h at 80,00 m head or 240 m³/h at 20,00 head 1x Emergency fire pump 72 m³/h at 80,00 m head 1x Gen. Service sea water pump 50 m³/h at 40,00 m head 2x Ballast stripping pumps 125 m³/h at 28,00 m head |
|
|
Manager |
Anglo-Eastern Ship Management Limited |
|
|
Previous managers |
02004 - 2004 Offshore Heavy Transport S.A. |
|
|
Operator |
Dockwise B.V. The Netherlands |
|
|
Registered owner |
Blue Marlin BV |
|
|
Group |
Royal Boskalis Westminster N.V. Rosmolenweg 20 |
|
|
Latest data adjustment |
05 November 2016 |
