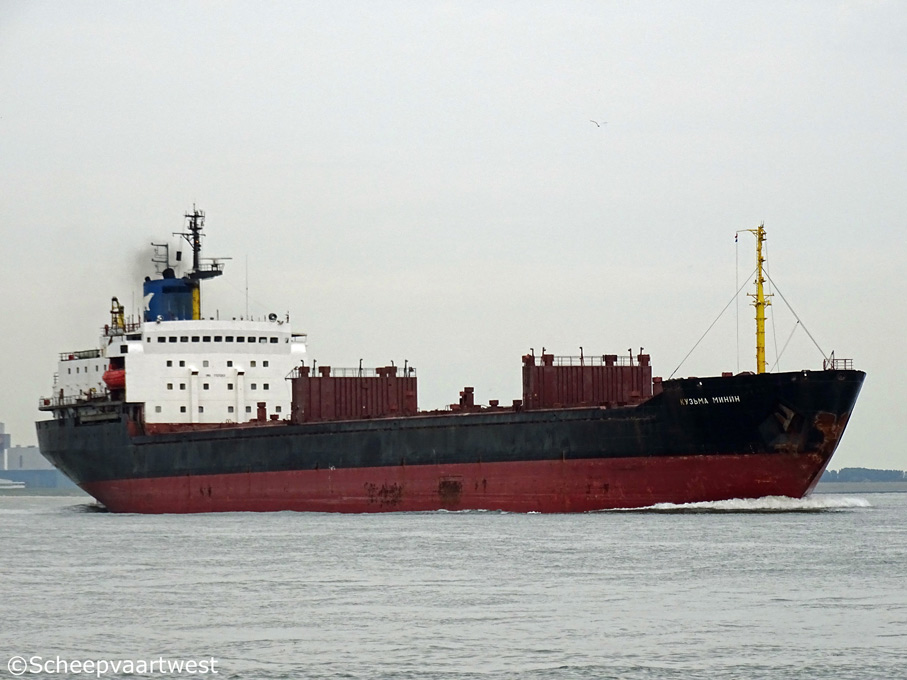

Kuzma Minin 01

Westerschelde 28 June 2016

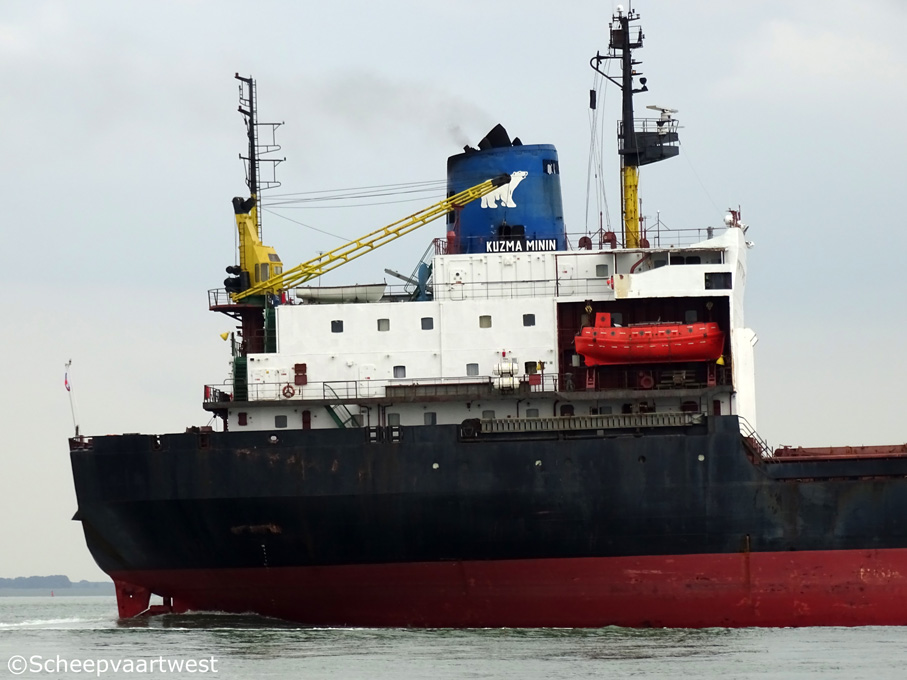

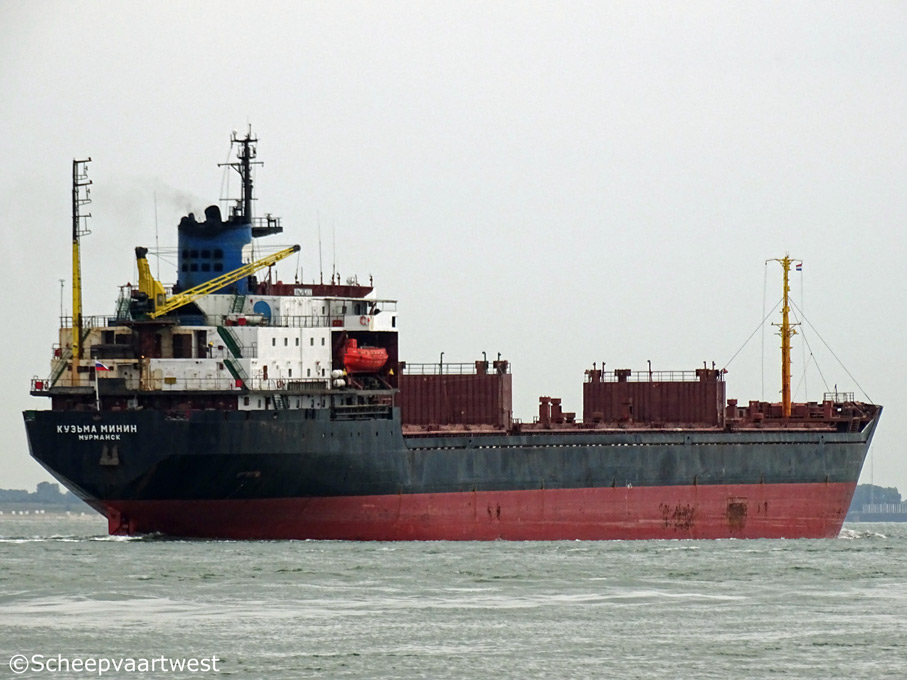

Kuzma Minin 03   Kuzma Minin 02
Westerschelde 28/06/16 Westerschelde 28/06/16



Name

KUZMA MININ

Russian name

КУЗЬМА МИНИН

Type

Bulk carrier - Container facility

IMO-number

7721263

Call sign

UCJB

Flag

Russia

Port of registry

Murmansk

GT

16.257 t

DWT

23.169 t

NT

7.306 t

Displacement

31.645 t

Number of 20ft containers

512

Length

180,50 m overall

173,28 m between perpendiculars

Breadth

22,86 m moulded

Draught

9,88 m

Depth

13,50 m moulded

Speed

15,2 knots

Built

1980 German Democratic Republic

2004 Refit: Chengxi Shipyard, Qingdao - China

Date of completion

07.02.1980

Builder

Warnowwerft Shipyard
Warnemunde
German Democratic Republic

Yard number

108

Hull material

Steel

Watertight bulkheads

9

Continuous decks

1

Main engine

1x MAN K8Z 70/120E - 2 stroke 8 cylinder diesel engine 8.238 kW / 11.200 bhp at 140 rpm

Built: 1979 German Democratic Republic

Propellers

1x Fixed pitched propeller with detachable blades

Number of blades: 4

Generators

4x SKL 8VD 36/24A-1 diesel generatorsets each 440 KW / 600 bhp

Emergency generator

1x Diesel generatorset 120 kVA

Bow thruster

1x Brunvoll Type FU-45-LTC-1375 power 400 kW

Number of holds

7

Cargo hold capacity

Grain:

Hold 1: 2.185 m³

Hold 2: 4.451 m³

Hold 3: 3.162 m³

Hold 4: 4.625 m³

Hold 5: 4.759 m³

Hold 6: 3.075 m³

Hold 7: 3.187 m³

Total: 25.444 m³

Number of hatches

7

6x 12,80 x 13,50 m

1x 12,80 x 10,80 m

Max. permitted loads

Hatch covers: 1,75 t/m²

Tank top:

Hold 1: 22,5 t/m²

Hold 2: 12,5 t/m²

Hold 3: 29,0 t/m²

Hold 4: 18,5 t/m²

Hold 5: 29,0 t/m²

Hold 6: 12,5 t/m²

Hold 7: 29,0 t/m²

Upper deck: 1,75 t/m²

Tank capacities

Fuel oil: 1.838 m³

Ballast water: 9.306

Lifting equipment

1x Crane - SWL 3.2 t

Cargo gear

Gearless

Manager

Murmansk Shipping
Murmansk
Russia

Owner

"Murmansk Shipping Company", Joint-Stock Company
ul. Kominterna, 15
183038 Murmansk
Russia

Latest data adjustment

03 September 2016
