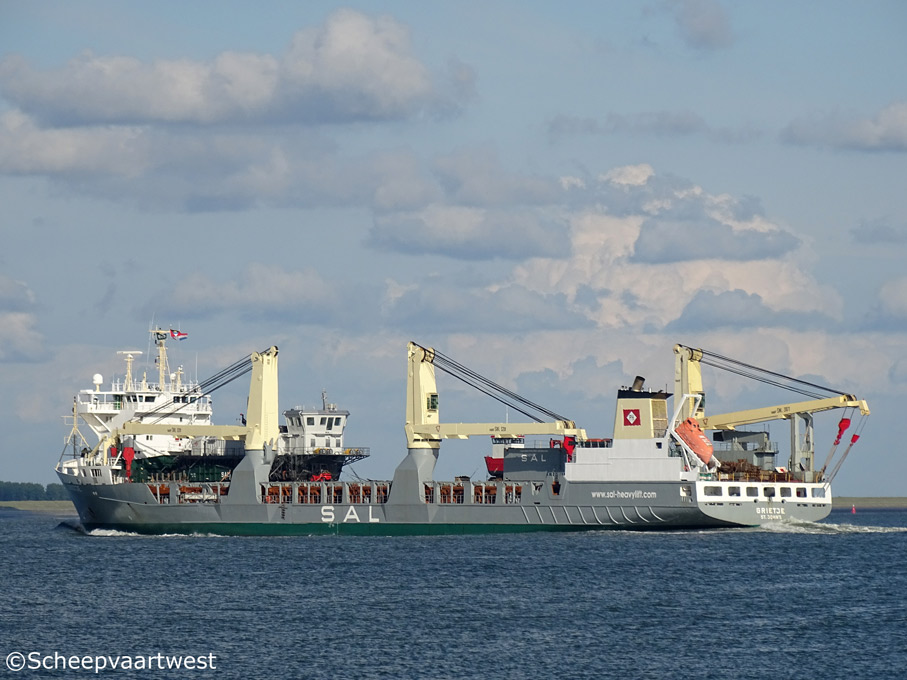

Grietje 01

Westerschelde 13 July 2016



Name

GRIETJE

Type

General cargo ship - Heavy lift ship - Strengthened for heavy cargo

IMO-number

9147708

Call sign

V2LN

Flag

Antigua & Barbuda

Port of registry

St. John's

GT

8.397 t

Suez: 8.572,53 t

DWT

Summer: 9.370 t

NT

4.178 t

Suez: 6.915,35 t

Panama: 7.636 t

Displacement

Summer: 14.980 t

Length

151,65 m overall

143,32 m between perpendiculars

Breadth

21,02 m extreme

20,40 m moulded

Draught

Summer: 7,84 m

Freeboard

Summer: 2.179 mm

Depth

10,50 m moulded

Speed

19,5 knots

Built

2000

Keel laid

28.02.1996

Launch date

08.12.1999

Date of completion

07.02.2000

Builder

J.J. Sietas KG Schiffswerft GmbH & Co.
Neuenfelder Fährdeich 88
21129 Hamburg
Federal Republic of Germany

Yard number

1161

Hull material

Shipbuilding steel (higher tensile)

Hull type

Double bottom

Watertight bulkheads

5

Continuous decks

2

Main engine

1x MAN B&W 9L48/60 - 4 stroke 9 cylinder 480 x 600 mm diesel engine - 9.450 kW at 500 rpm

Reduction power: 4.995 kW

Year of manufacture: 1999

Manufacturer: MAN B&W Diesel GmbH
Stadtbachstr. 1
86153 Augsburg
Federal Republic of Germany

Propellers

1x Controllable pitch propeller - aft at 140 rpm

Rudder

1x Flap type spade rudder

Boilers

1x Thermal oil heater, oil fired - 10,0 bar

Heating surface: 35,0 m²

1x Thermal oil heater, exhaust gas heated - 10,0 bar

Heating surface: 157,5 m²

Year of manufacture: 1999

Manufacturer: PWT Prozess-Wärmeträgertechnik GmbH
Justus-von-Liebig-Ring 4-6
25451 Quickborn
Federal Republic of Germany

Electric installations

3x Plants each 380/220 V - 380 kVA

1x Plant 380 V - 1.250 kVA

1x Plant 380 V - 430 kVA

Shaft generator

1x 1.250 kVA

Generators

4x Volvo Penta TAMD 163 A main diesel generatorsets each 380 kVA

Emergency generator

1x Volvo Penta TAMD 163-A generatorset 430 kVA

Compressed air receivers

2x Receivers each 1.000 litres - 30,0 bar

1x Receiver 475 litres - 11,0 bar

Bow thruster

1x Fixed pitch propeller LIPS - 750 kW / 1.020 hp, forward

Number of holds

1

Dimension: 82,90 x 15,80 x 10,97m

Hold capacity

Grain: 14.000 m³

Bales: 13.604 m³

Number of hatches

1

Hatch type

MacGregor hydraulic operated combined folding type and lift and roll type

Free deck space

2.120 m²

Dimensions: 124,00 x 20,50 m

Tank capacities

Fuel oil: 1.093,29 m³

Gas oil: 214,22 m³

Fresh water: 123,99 m³

Ballast: 3.979,1 m³

Anchor equipment

3x Anchors weight each 4.050 kg

Length: 522,60 m

Diameter: 50 mm

Cargo gear

2x Cranes - SWL 320 t

1x Crane - SWL 200 t
Combinable upto SWL 640 t

Auxiliary hoist:

2x SWL 40 t

1x SWL 30 t

Technical manager

SAL Heavy Lift GmbH

Operator

SAL Heavy Lift GmbH

Owner

SAL Heavy Lift GmbH

Registered owner

SAL Heavy Lift GmbH
Brooktorkai 20
20457 Hamburg
Federal Republic of Germany

Latest data adjustment

14 August 2016
