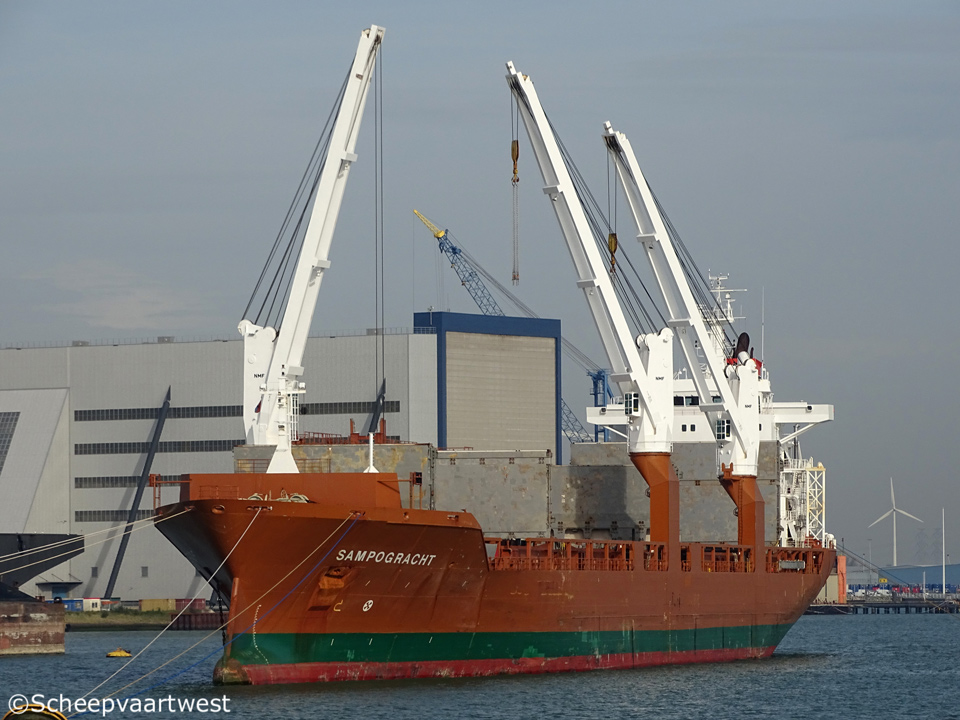

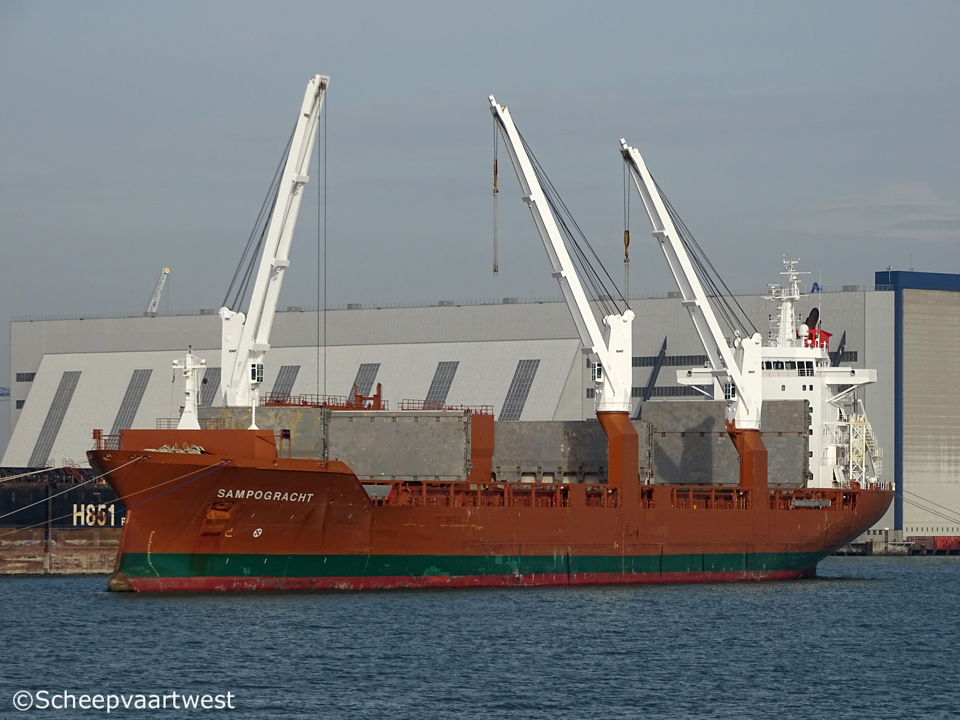

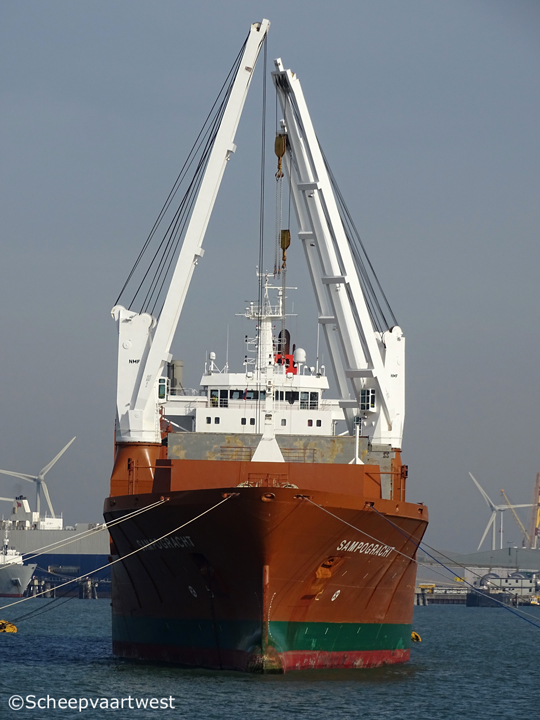

Sampogracht - IMO 9288071

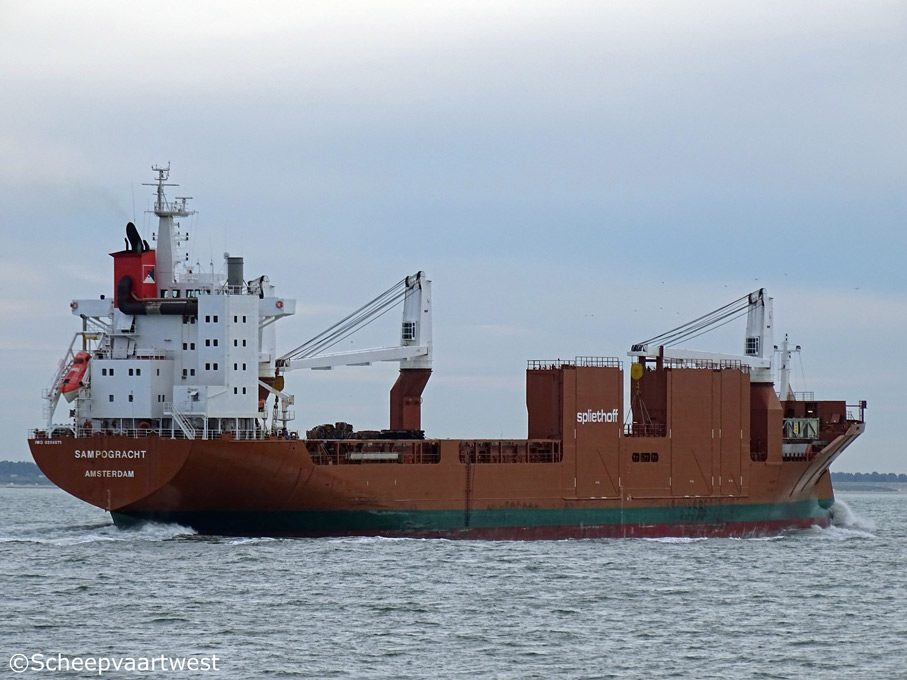

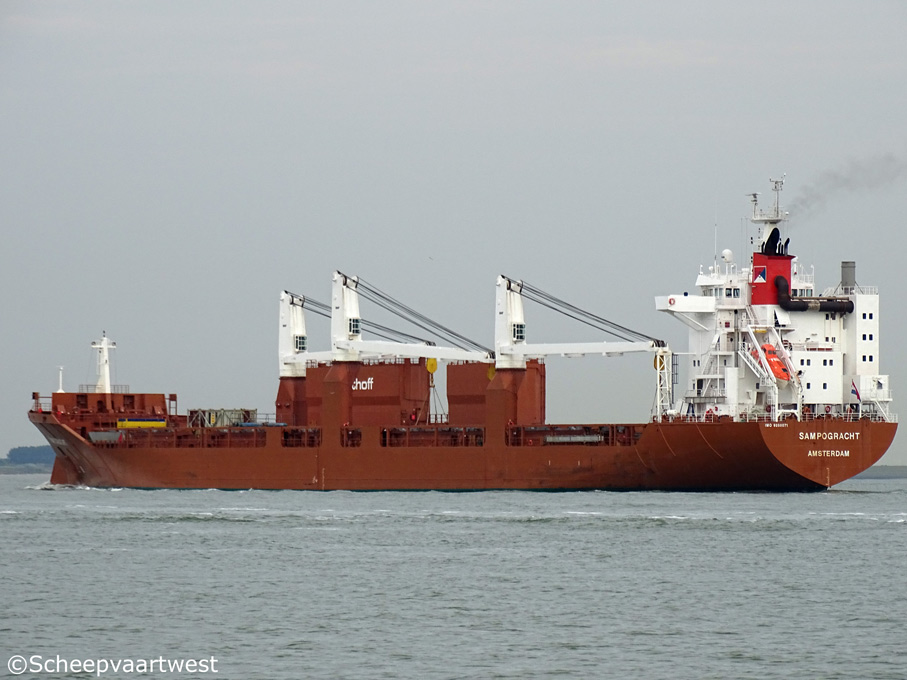

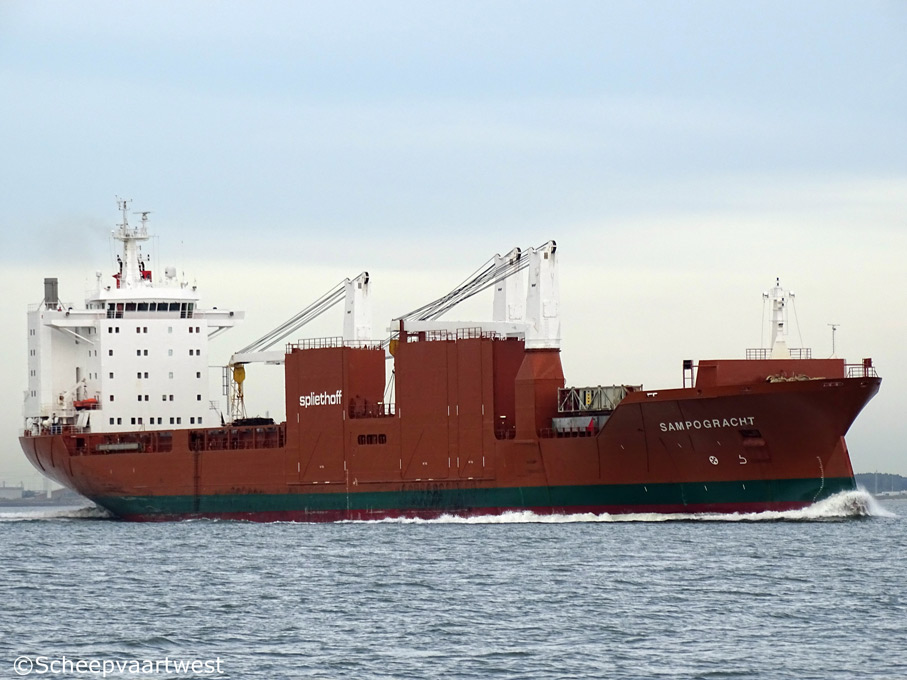

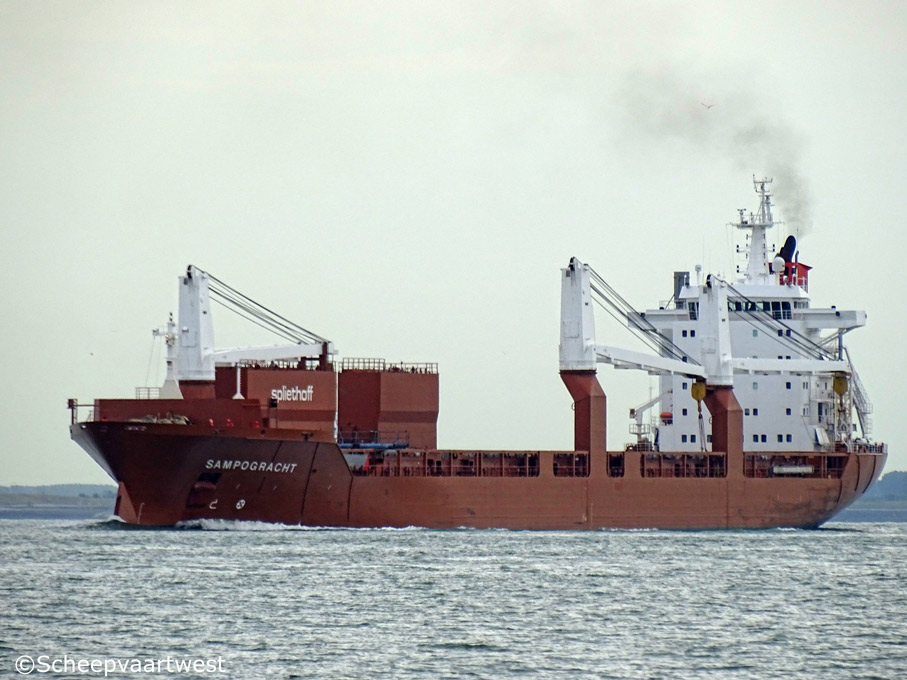

Westerschelde 07 July 2016

Name

SAMPOGRACHT

Type

Multi-purpose cargo vessel

IMO-number

9288071

Call sign

PHDL

Flag

The Netherlands

Port of registry

Amsterdam

GT

18.321 t

DWT

23.660 t excl. tweendeck

22.845 t incl. tweendeck

NT

7.647 t

Number of 20ft containers

In hold: 555

On deck: 736

Total: 1.291

Number of 40ft containers

In hold: 259

On deck: 310

Total: 569 + 130 TEU

Reefer capacity & power

120 & 850 kW

Length

185,40 m overall

173,50 m between perpendiculars

Breadth

25,49 m extreme

25,30 m moulded

Draught

10,61 m

Height in hold as SID

14,38 m to main deck

Height in lower hold as TWD

3x Heights: 3,18 or 7,03 or 10,23 m

Height in tweendeck as TWD

3x Heights: 10,10 or 6,25 or 3,05 m

Depth

14,60 m moulded

Speed

18,0 knots in ballast

17,0 knots laden

Built

2005

Launch date

12.03.2005

Delivery date

28.07.2004

Builder

Stocznia Szczecinska Nowa Sp. z o.o.
Szczecin (Stettin)
Poland

Yard number

B587-IV8

Hull material

Steel

Movable bulkheads

Removable pontoons for up to 16 compartments at TEU interval

Main engine

1x Wärtsilä 6L64 - 4 stroke single acting 6 cylinder 640 x 900 mm diesel engine 16.415 bhp / 12.060 kW

Manufacturer: Fincantieri-Cant. Nav. Italiana S.p.A. (Grandi Motori), Trieste - Italy

Propellers

1x Controllable pitch propeller

Shaft generator

1x 1.000 kW

Generators

3x Diesel generatorsets each 450 kW

Bow thruster

1x 1.155 hp / 850 kW

Cargo capacity

Hold 0: 15.430 ft³ / 437 m³

Hold 1: 160.000 ft³ / 4.530 m³

Hold 2/3: 797.750 ft³ / 22.590 m³

Total: 973.180 ft³ / 27.557 m³

If tween deck installed 67.450 ft³ / 1.910 m³ less in hold

Hold 0 can be open connected to Hold 1 with movable separation bulkhead

Hatches

Weather deck:

No.0: 6,40 x 9,00 m
No.1: 25,60 x 17,80 m / 15,20 m
No.2: 38,40 x 17,80 m
No.3: 44,80 x 20,40 m

Steel, end folding type

Tween deck:

No.1: 25,60 x 17,80 m/ 15,20 m
No.2: 38,40 x 17,80 m
Under-crossbeam: 4,30 x 17,80 m
No.3: 44,80 x 20,40 m

Consisting:

17 steel pontoons

Maximum load

Weather deck hatch cover: 2,0 t m²

Tween deck hatch covers:
hatchway 1: 7,50 t/ m²
hatchway 2: 5,50 t/ m²
hatchway 3: 5 t/ m²

Tank top: 20,0 t/m²

Floor space

Tanktop: 1.830 m²

Tweendeck: 2.149 m²

Weather deck: 2.441 m²

Air changes

Hold 0: 6x p/h

Hold 1: 18x p/h

Hold 2/3: 15x p/h

Bunker capacity

Fuel oil: 1.635 m³

Marine gas oil: 220 m³

Ballast: 8.640 m³

Cargo gear

3x Cranes:

2x PS (aft and mid)

1x SB (forward)

SWL
120 t each and 5 t sideloaders of 16 t at SB

Manager

Spliethoff's Bevrachtingskantoor B.V.
Amsterdam
The Netherlands

Owner

C.V. Scheepvaartondernemingen Kuipersgracht, C.V. Poolgracht en C.V. Parkgracht
Amsterdam
The Netherlands

Latest data adjustment

07 August 2016
