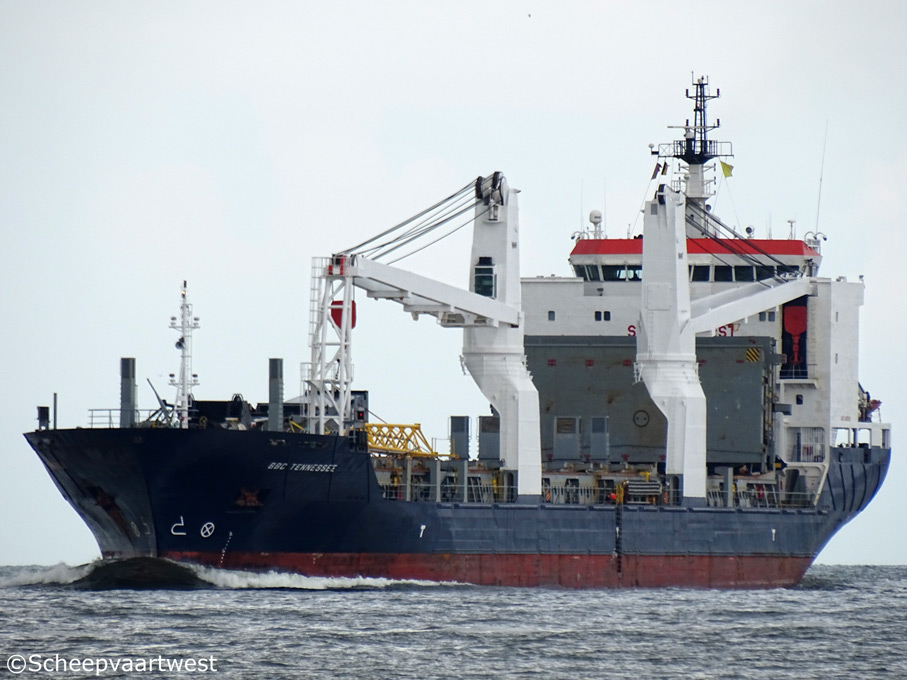

BBC Tennessee 01

Westerschelde 15 June 2016



Name

BBC TENNESSEE

Previous names

2008 - 05.2011 Beluga Felicity

Type

Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo - Equipped for the carriage of dangerous goods

Heavylifter

IMO-number

9435026

Call sign

V2DC9

Flag

Antigua & Barbuda

Port of registry

St. John's

GT

9.611 t

DWT

Summer: 12.668,7 t

NT

4.260 t

Number of 20ft containers

In hold: 334

On deck: 331

Total: 665

Number of 40ft containers

In hold: 158 + 22 TEU

On deck: 136 + 59 TEU

Total: 294 + 81 TEU

Container capacity 14t

528

Reefer plugs

50 reefer plugs on deck

Length

138,06 m overall

130,00 m between perpendiculars

Breadth

21,36 m extreme

21,00 m moulded

Draught

Summer: 8,00 m

Height above keel

40,09 m

Depth

11,00 m to main deck

Speed

Max.: 15,0 knots

Service: 14,0 knots

Built

2008

Keel laid

25.05.2007

Launch date

09.11.2007

Date of completion

20.06.2008

Builder

Jiangzhou Union Shipbuilding Co., Ltd.
Ruichang

China

Yard number

JZ1004

Hull material

Steel

Main engine

1x MaK 6M43C - 4 stroke single acting 6 cylinder 430 x 610 mm diesel engine 5.400 kW / 7.342 hp at 500 rpm

Manufacturer: Caterpillar Motoren GmbH & Co. KG – Germany

Propellers

1x Controllable pitch propeller - aft at 132 rpm

4 blades

Boilers

1x Thermal oil heater, oil fired

1x Thermal oil heater, exhaust heated

Generators

3x MAN D2840LE3014 stroke 10 cylinder diesel engine 450 kW coupled with generator 395 kW 400/230 Volt 50Hz each

Emergency generator

1x MAN D 2866 E diesel generatorset 99 kW

Bow thruster

1x 500 kW / 680 bhp

Hatch and hold

Number of holds: 3

Hold form: Hold 2:double skinned/boxshaped;

Hold 1+3: narrow stepwise in container dimensions

Hatchcover:

Hold 1: 19,30 m (18,75 m opening) x 15,42 m (15,00 m opening)

Hold 2: 42,33 m (42,00 m opening) x 17,98 m (17,50 m opening)

Hold 3: 26,00 m (25,50 m opening) x 17,98 m (17,50 m opening)

Tweendeck

Hold 1: 18,75 m x 15,01 m

Hold 2: 42,00 m x 17,50 m,

Hold 3: 25,50 m x 17,50 m

Lower hold:

Hold 1: 18,75 m x 15,01 m narrows to 10,06 m over 6,00 m

Hold 2: 42,00 m x 17,50 m

Hold 3: 25,50 m x 17,50 m narrows to 14,40 m over 5,25 m

Heights

Tanktop - Hatchcover Hold 1: 10,53 m

Tanktop – Hatchcover Hold 2: 11,18 m

Tanktop - Hatchcover Hold 3: 10,77 m

Tanktop - Tweendeck (bottom edge) Hold 1: 5,43 m

Tanktop - Tweendeck (bottom edge) Hold 2: 3,25 m /6,00 m /7,45 m (adjustable)

Tanktop - Tweendeck (bottom edge) Hold 3: 5,59 m

Tweendeck (top edge) Hatchcover Hold 1: 4,50 Tweendeck (top edge) Hatchcover Hold 2: 2,93 m /4,38 m /7,13 m

Type of hatch covers

Tweendeck (top edge) Hatchcover Hold 3: 4,38 m

Hydr. folding type Type of tweendeck: Pontoons; can be used as vertical bulkheads in holds

Cargo hold capacity

Hold 1: 2.701 m³

Hold 2: 8.362 m³

Hold 3: 4.890 m³

Total: 15.952 m³ / 563.340 ft³

Hold ventilation

Hold 1: 6 fold

Hold 2+3: 12 fold air change per hour

Floor space

Hatchcover: 1.462 m²

Lower Hold: 1.420 m²

Total: 4.306 m²

Deck strengths

16,00 t on tanktop in holds 1, 2 and 3

2,50 t on tweendeck in hold 1 and hold 2 (upper position)

4,00 t on tweendeck in hold 2 (middle and lower position) and hold 3

1,75 t on hatchcovers

Tank capacities

IFO: 948 m³

MGO: 150 m³

Water ballast: 5.000 m³

Fresh water: 147 m³

Anchor equipment

Length: 545,00 m

Diameter: 52 mm

Cargo gear

2x NMF cranes situated portside - SWL 180 t capacity each

SWL 360 t capacity combined

Manager

Intertrade Shipping GmbH & Co. KG
Drochterser Str. 48
21706 Drochtersen
Germany

Commercial manager

Briese Schiffahrts GmbH & Co.
Hafenstrasse 12
26789 Leer
Germany

Operator

BBC Chartering GmbH - as agents
Hafenstr. 10b
26789 Leer
Germany

Registered owner

Project Carrier GmbH & Co. KG MS "TENNESSEE"

Latest data adjustment

21 July 2016
