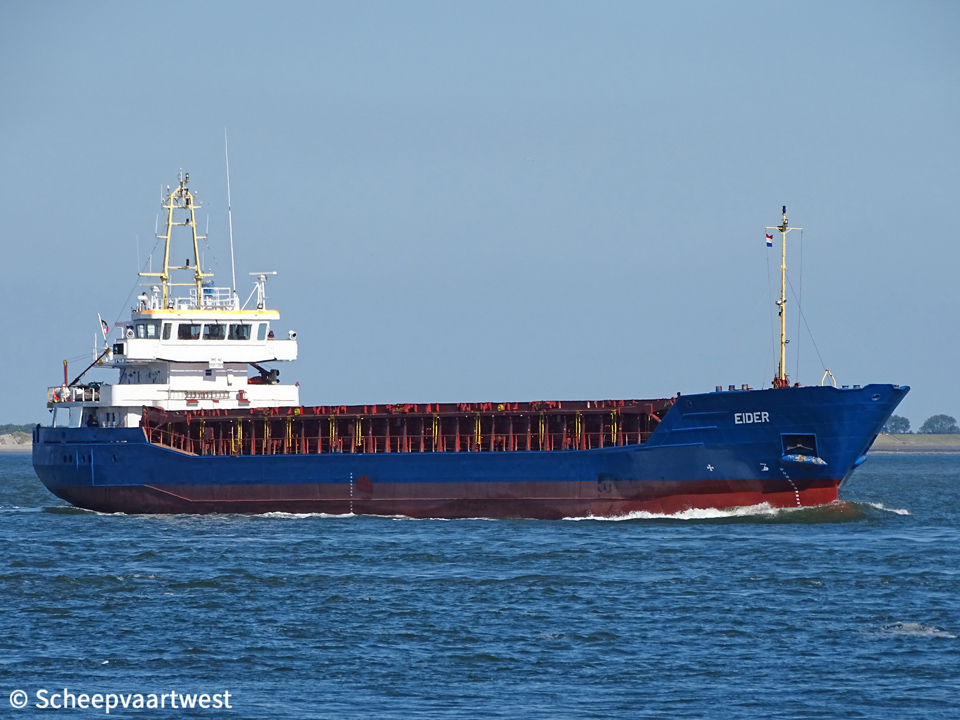

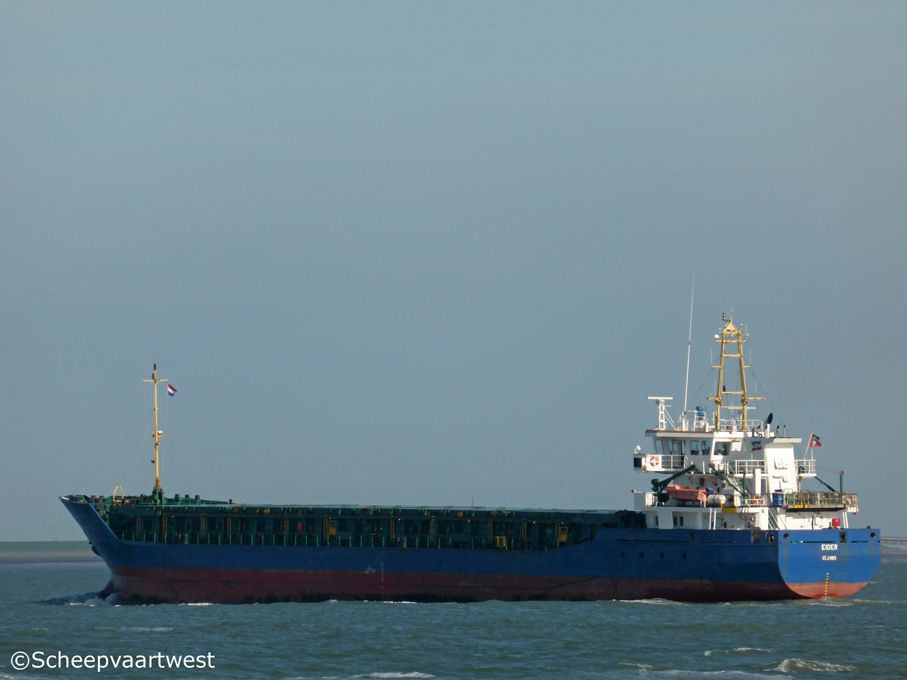

Eider 01

Westerschelde 09 April 2014



Name

EIDER

Previous names

2003 built as: Gretchen Muller

Type

Multi-purpose dry cargo ship - Equipped for carriage of containers

IMO-number

9197399

Call sign

V2KA

Flag

Antigua & Barbuda

Port of registry

St. John's

GT

2.452 t

DWT

Summer: 3.672 t

DWCC

Summer: 3.450 t

Winter: 3.550 t

NT

1.369 t

Number of 20ft containers

144

Length

87,98 m overall

81,00 m between perpendiculars

Breadth

12,80 m extreme

Draught

5,51 m

Air draft

19,60 m basis full ballast

Depth

7,10 m

Speed

11,0 knots

Built

2003

Keel laid

12.06.1998

Launch date

23.08.2002

Date of completion

19.02.2003

Builder

Slovenske Lodenice Komarno a.s. Prevadzkaren
Komarno
Slovakia

Yard number

2949

Hull material

Steel

Movable bulkheads

2x Movable units various positions

Main engine

1x SBV 8M628 - 8 cylinder diesel engine 1.470 kW / 1.999 bhp
Builder: Deutz-MWM Motorenwerke AG, Mannheim - Germany

Propellers

1x Fixed propeller

Boilers

1x Auxiliary boiler, oil/gas fired CA 140

Generators

3x MAN D2866 E main diesel generatorsets each 115 kW

Emergency & harbour gen.

1x Deutz F6L912 diesel generatorset 47 KW

Bow thruster

1x 185 kW

Number of holds

1

55,75 x 10,20 x 8,15 m

55,00 x 10,20 x 8,15 m incl. bulkheads

Hold capacity

4.613 m³ / 163.000 ft³

Type hatch cover

Kvaerner type

Max. permitted loads

Tanktop: 15,0 t/m²

Deck: 1,6 t/m²

Tank capacities

Ballast: 1.624,62 m³

Anchor equipment

Length: 412,50 m

Diameter: 32 mm

Manager

Reederei Erwin Strahlmann GmbH & Co. KG
Schleusenstraße 10
25541 Brunsbüttel
Germany

Operator

R.E.S. Chartering GmbH
Fuhlentwiete 10
20355 Hamburg
Germany

Registered owner

Roland Ship Administration GmbH & Co. KG

Latest data adjustment

09 July 2016
