Westerschelde 19 May 2014 |
 |
|
| Westerschelde 19/05/14 | |
|
Name |

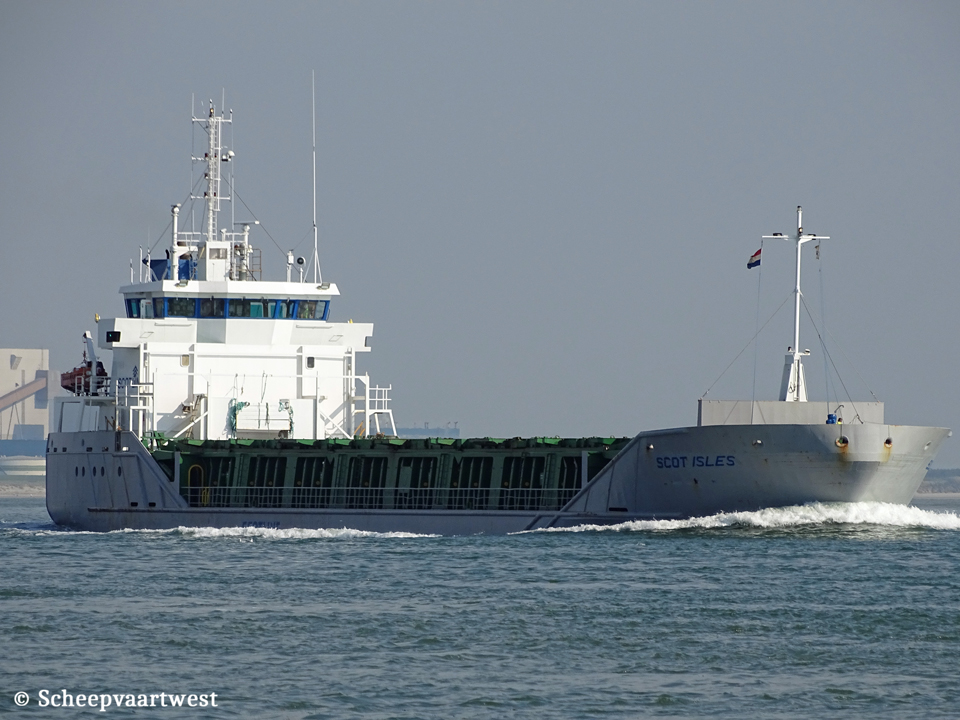

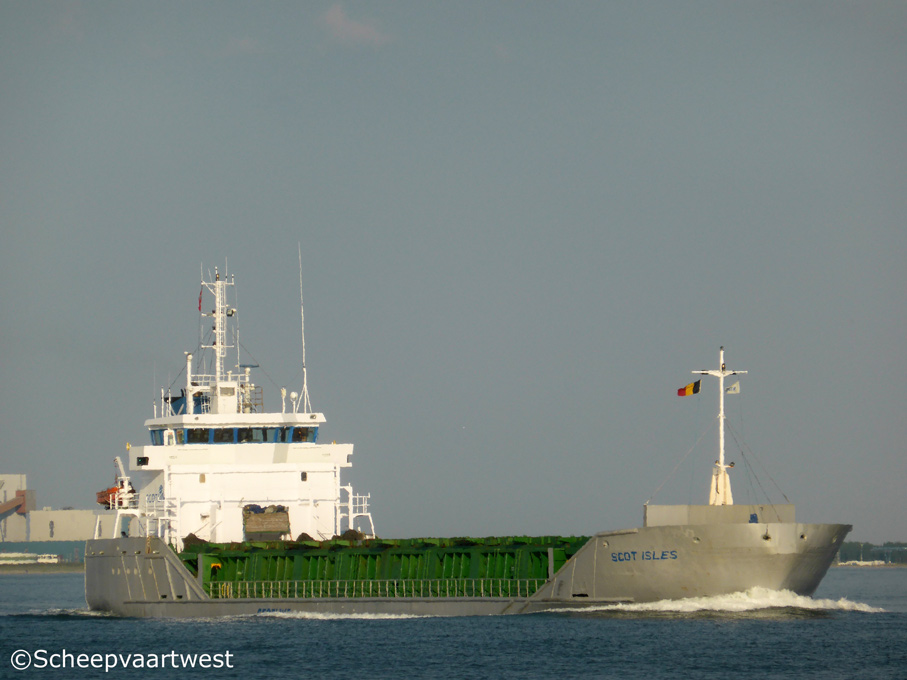

SCOT ISLES |
|
Previous names |
2001 Built as: Eclips 2001 - 11/2006 Somers Isles |
|
Type |
General cargo ship - Box-shaped singledecker |
|
IMO-number |
9243930 |
|
Call sign |
MPTH7 |
|
Flag |
United Kingdom |
|
Port of registry |
Rochester |
|
Previous flags |
12/2001 - 11/2006 The Netherlands, Harlingen - Call sign: PBDH |
|
GT |
2.595 t |
|
DWT |
Summer: 3.154,13 t |
|
DWCC |
3.065 t |
|
NT |
1.402 t |
|
Number of 20ft containers |
192 |
|
Reefer plugs |
38 |
|
Length |
89,95 m overall 84,98 m between perpendiculars |
|
Breadth |
14,01 m extreme 13,75 m moulded |
|
Draught |
Summer: 4,93 m |
|
Air draft |
26,75 m in ballast |
|
Depth |
6,25 m |
|
Speed |
14,25 knots |
|
Built |
2001 |
|
Keel laid |
26/06/1998 |
|
Launch date |
08/11/2001 |
|
Date of completion |
15/12/2001 |
|
Builder |
Tille Scheepsbouw B.V. Kootstertille The Netherlands |
|
Yard number |
341 |
|
Hull material |
Steel |
|
Watertight bulkheads |
4 |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä 6L26A - 4 stroke single acting 6 cylinder 260 x 320 mm combustion engine 1.950 kW at 1.000 rpm Built: 2001 Manufacturer: Wärtsilä NSD, Zwolle - The Netherlands |
|
Gearbox |
1x Flender Navilus GRS 530 AP - reduction 4.47:1 |
|
Propellers |
1x Rolls Royce controllable pitch propeller - aft at 223 rpm Diameter: 2.800 mm - 4 blades |
|
Shaft generator |
1x Stamford HCM 434F 315 kW |
|
Generators |
2x Sisu Diesel 634 DSBG - 6 cylinder 108 x 134 mm diesel engine 130 KW at 1.500 rpm each coupled with Stamford UCM 274G generator 155 kVA each |
|
Emergency & harbour gen. |
1x Sisu Diesel 420-DSG - 4 cylinder 108 x 120 mm diesel engine 70 kW at 1.500 rpm coupled with Stamford UCM 274C generator 81 kVA |
|
Bow thruster |
1x Promac 205 kW |
|
Number of holds |
1 61,87 x 10,80 x 7,93 m |
|
Hold capacity |
Grain & Bale: 184.028 ft³ / 5.168 m³ |
|
Hold ventilation |
6 Air changes/h |
|
Number of hatches |
1 54,50 x 10,80 m |
|
Hatch type |
Hydraulic folding |
|
Timber-fitted capacity |
5.000 m³ |
|
Max. permitted loads |
Tanktop: 15,0 t/m² Hatch cover: 1,6 t/m² |
|
Tank capacities |
Ballast water: 1.533 m³ Potable Water: 34 m³ Fuel: 266 m³ Lubricating Oil: 13 m³ Dirty Oil: 6 m³ |
|
Anchor equipment |
Length: 440,00 m Diameter: 34 mm |
|
Lifting equipment |
1x Deck crane - SWL 500 kg |
|
Manager |
Intrada Ships Management Ltd. Riverside Estate Sir Thomas Longley Rd. Rochester ME2 4DP United Kingdom |
|
Previous managers |
12/2001 - 11/2006 JR Shipping B.V., Harlingen - The Netherlands |
|
Operator |
Scotline Vulcan House Crown Wharf Rochester ME2 4EN United Kingdom |
|
Registered owner |
Hohebank Shipping Ltd. Rochester United Kingdom |
|
Previous names & owners |
12/2001 - 11/2006 Somers Isle - m.s. Eclips Scheepvaartbedrijf C.V., Harlingen - The Netherlands |
|
Renamred |
03/2021 Scot bay United Kingdom, Rochester - Call sign: MPTH7 Manager & Owner: Scot Lines U.K. Ltd., Inverness - United Kingdom |
|
Latest data adjustment |
28 April 2021 |
