Westerschelde 14 April 2016 |
 |
 |
|
| Westerschelde 26/04/16 | Westerschelde 26/04/16 | |
|
Name |

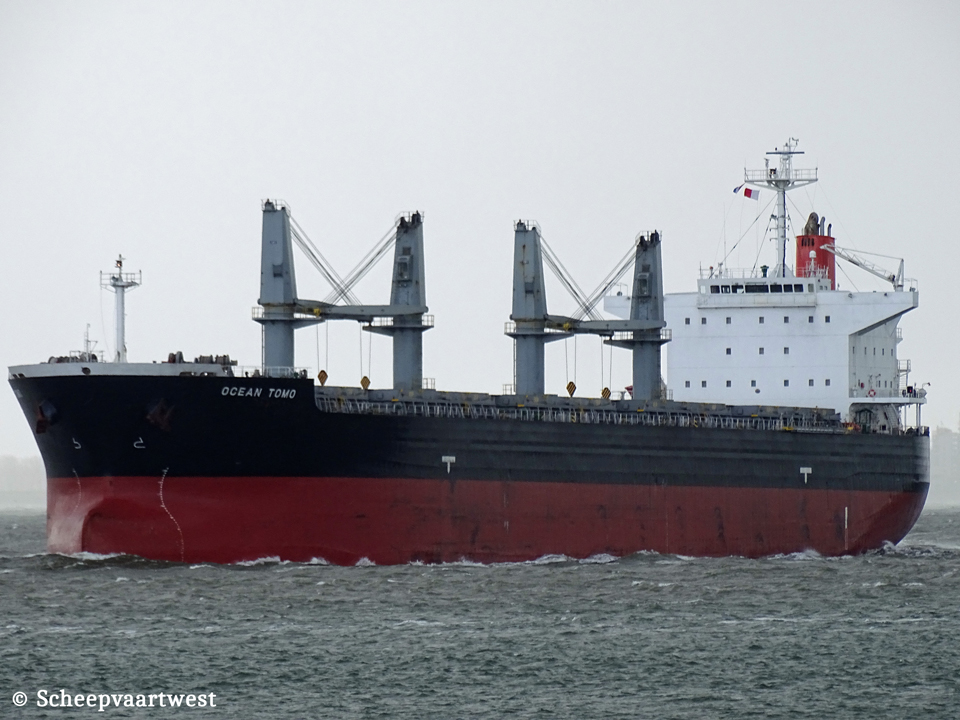

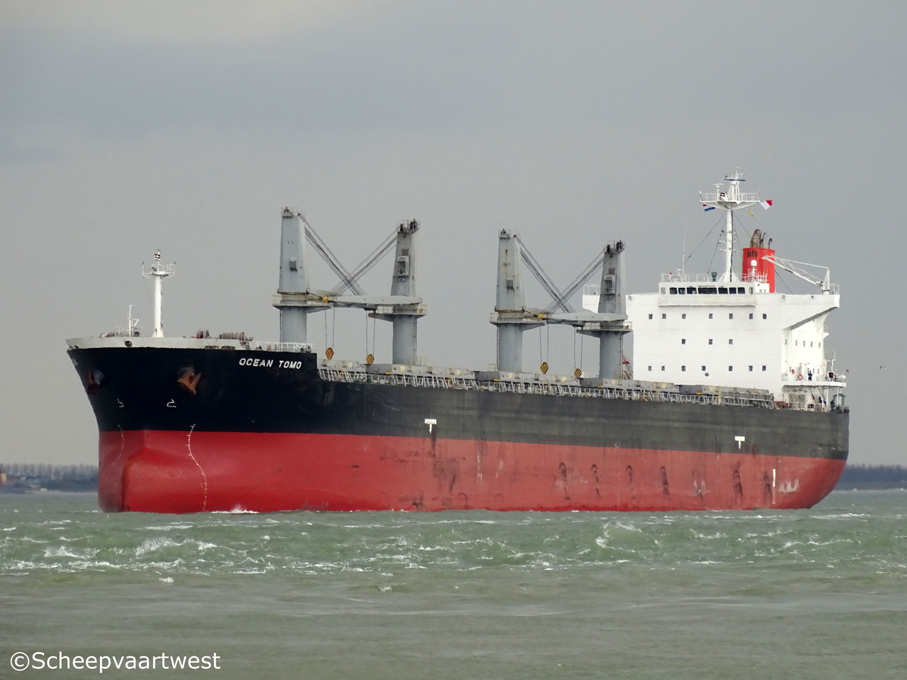

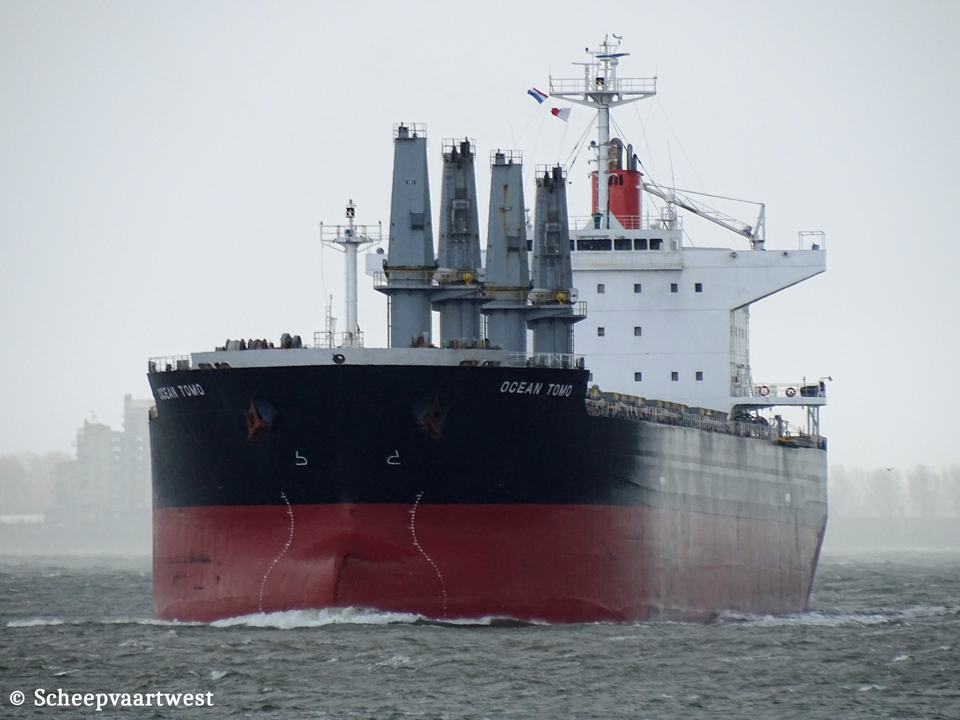

OCEAN TOMO |
|
Type |
Geared bulk carrier - Strengthened for heavy cargo loading |
|
IMO-number |
9478808 |
|
Call sign |
3FID9 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
31.243 t registered |
|
DWT |
Summer: 55.621 t |
|
NT |
18.516 t registered |
|
Length |
190,99 m overall |
|
Breadth |
32,26 m moulded |
|
Draught |
Summer: 12,57 m |
|
Moulded L x B x D |
182,00 x 32,26 x 17,90 m |
|
Registered L x B x D |
182,97 x 32,26 x 17,90 m |
|
Freeboard |
Summer: 5.375 mm |
|
Depth |
19,70 m moulded |
|
Speed |
Max.: 16,8 knots Service: 14,5 knots |
|
Built |
2010 |
|
Keel laid |
19/03/2010 |
|
Launch date |
30/06/2010 |
|
Date of completion |
08/08/2010 |
|
Builder |
Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works |
|
Yard number |
1755 |
|
Hull material |
Steel |
|
Main engine |
1x Mitsui/MAN-B&W 6S50MCC - 2 stroke single acting 6 cylinder 500 x 2.000 mm combustion engine 9.480 kW / 12.900 hp at 127,0 rpm Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 470 mm |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 6,9 bar Evaporation: 2,78 t/h Manufacturer: Miura Co., Ltd. |
|
Generators |
4x Generators total 1.900 kVA |
|
Number of holds |
5 |
|
Hold capacity |
Bale: 68.116 m³ Grain: 70.868 m³ |
|
Number of hatches |
5 |
|
Tank capacities |
Fuel oil: 2.292 m³ Fresh water: 350 m³ Water ballast: 15.092 m³ |
|
Cargo gear |
4x Deck cranes - SWL 30,0 t each |
|
Manager |
World Marine Co., Ltd. 8th Floor, Kanpai Building, 22-27 Higashigotanda 5-chome Shinagawa-ku Tokyo-to, 141-0022 Japan |
|
Registered owner |
Lua Line S.A. / Okino Kaiun Co., Ltd. Care of World Marine Co Ltd 8th Floor, Kanpai Building, 22-27 Higashigotanda 5-chome Shinagawa-ku Tokyo-to, 141-0022 Japan |
|
Renamed |
2017 - 2021 PPS Tomo Republic of Singapore, Singapore City - Call sign: 9V5566 Owner: Punggol Park Shipping Pte Ltd. Manager: Bernhard Schulte Shipmanagement (India) Private Limited 2021 Konrad Schulte Republic of Singapore, Singapore City - Call sign: 9V5566 Owner: Bukit Merah Park Shipping Pte. Ltd. Manager: Bernhard Schulte Shipmanagement (India) Private Limited |
|
Latest data adjustment |
10 April 2023 |
