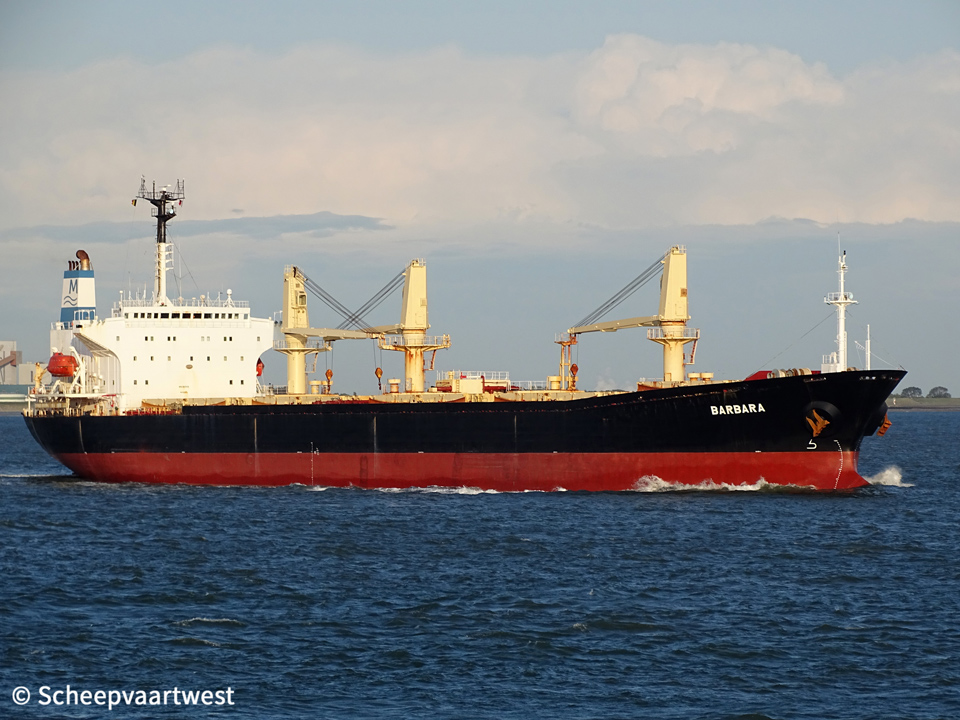

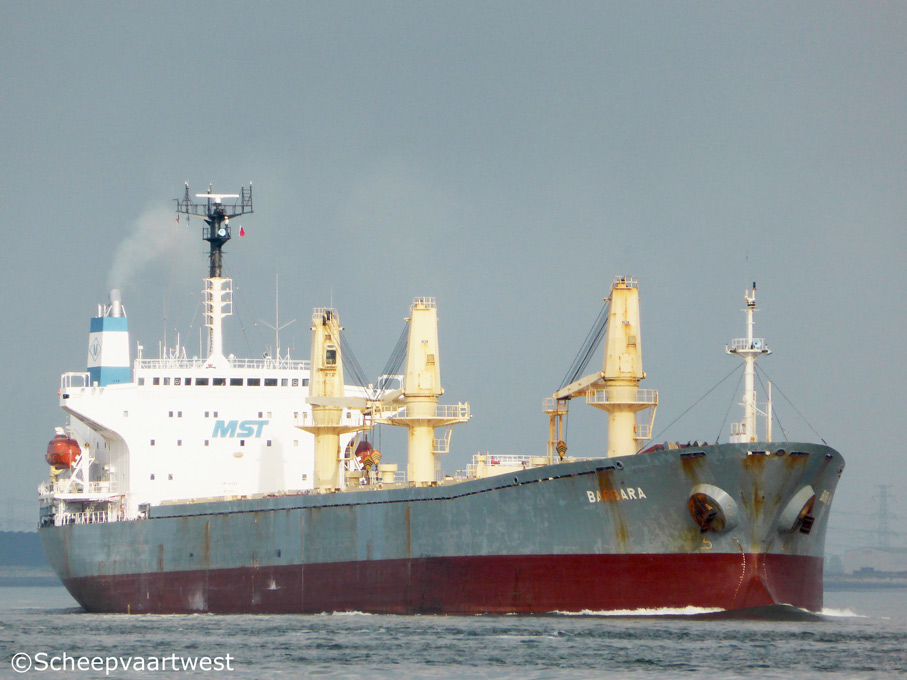

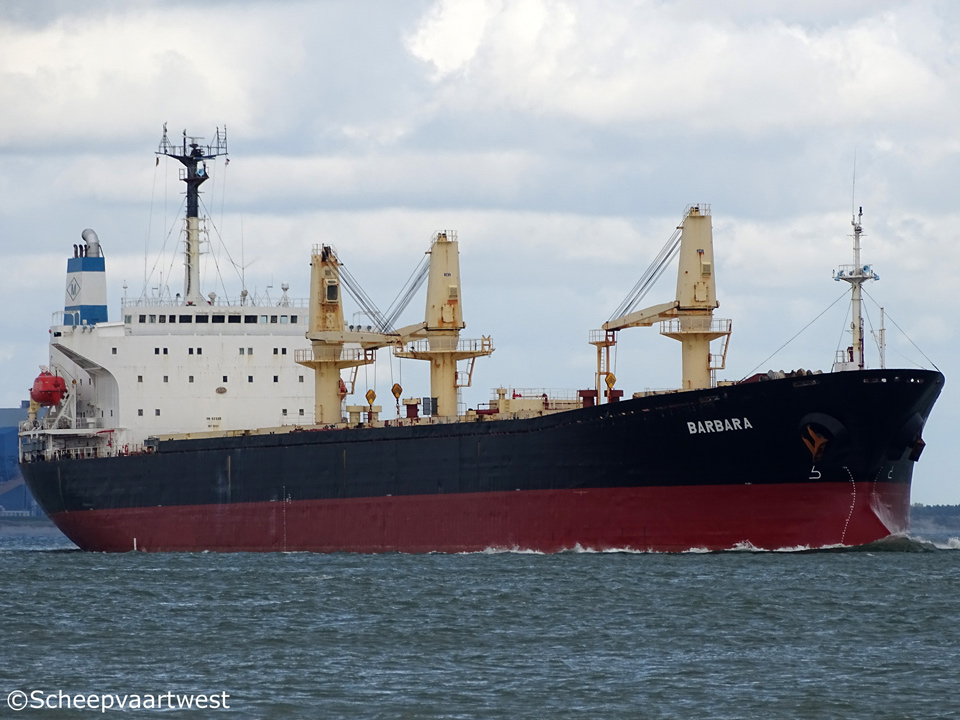

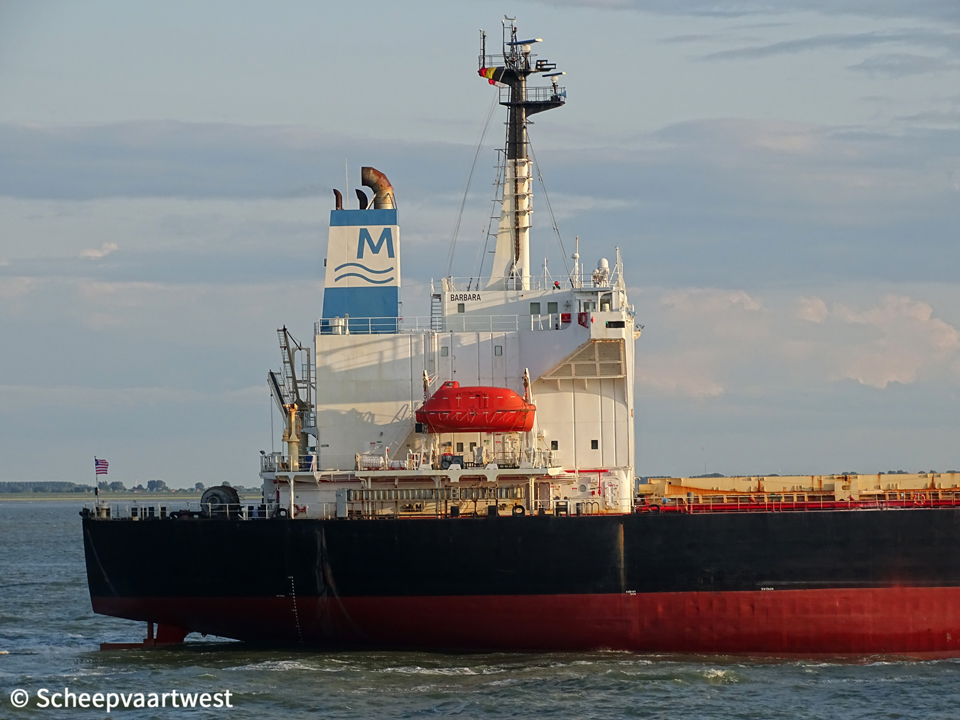

Westerschelde 10 September 2016 |
 |
 |
 |
 |
 |
||||
| Westerschelde 25/07/17 | Westerschelde 13/08/19 | Westerschelde 13/08/19 | Westerschelde 29/04/14 | Westerschelde 01/09/15 | ||||
|
Name |
BARBARA |
|
Previous names |
1994 - 04/1999 Glorious Future 04/1999 - 06/2005 Aliacmon River 06/2005 - 11/2006 Theotokos |
|
Type |
Bulk carrier - Single decker equipped with cargo tanks |
|
IMO-number |
9066760 |
|
Call sign |
D5AO6 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
22.147 t registered |
|
DWT |
Summer: 37.055 t Winter: 35.986 t |
|
NT |
11.174 t registered |
|
Length |
180,80 m overall |
|
Breadth |
30,50 m moulded |
|
Draught |
Summer: 10,93 m |
|
Moulded L x B x D |
171,00 x 30,50 x 15,30 m |
|
Registered L x B x D |
172,33 x 30,50 x 15,30 m |
|
Freeboard |
Summer: 4.407 mm |
|
Speed |
Max.: 15,5 knots |
|
Built |
1994 |
|
Keel laid |
29/11/1993 |
|
Launch date |
10/02/1994 |
|
Date of completion |
27/04/1994 |
|
Date of conversion |
31/10/2007 |
|
Builder |
Ishikawajima-Harima Heavy Industries Co., Ltd. Aichi Shipyard Chita Japan |
|
Yard number |
3042 |
|
Hull material |
Steel |
|
Continuous decks |
1 |
|
Main engine |
1x Diesel United/Sulzer 6RTA 52 - 2 stroke single acting 6 cylinder 520 x 1.800 mm combustion 5.810 kW at 94,0 rpm Manufacturer: Diesel United |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 444 mm |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 7,9 bar Evaporation: 2,61 t/h Manufacturer: Osaka Boiler Mfg., Co., Ltd. |
|
Generators |
4x Generators total 1.786 kW |
|
Number of holds |
5 |
|
Cargo capacity |
Grain Hold 1: 95.287 ft³ / 2.698,20 m³ Hold 2: 346,345 ft³ / 9.807,30 m³ Hold 3: 90.424 ft³ / 2.560,50 m³ Hold 4: 204.767 ft³ / 5.798,30 m² Hold 5: 86?928 ft³ / 2.461,50 m³ Total: Grain: 823.751 ft³ / 23.325,80 m³ Bale: 22.683 m³ |
|
Number of hatches |
5 Hatch 1: 15,20 x 12,80 m Hatch 2: 19,20 x 15,20 m Hatch 3: 19,20 x 15,20 m Hatch 4: 11,20 x 15,20 m Hatch 5: 19,20 x 15,20 m |
|
Hatch type |
Nakata, MAC Corporation hydraulic operated folding type |
|
Number of cargo tanks |
6x Cargo tanks to carry liquid cargoes |
|
Tanks capacity |
Tank 1: 2.140,68 m³ Tank 2: 2.146,21 m³ Tank 3: 2.953,00 m³ Tank 4: 2.943,73 m³ Tank 5: 2.477,93 m³ Tank 6: 2.477,93 m³ Total: 15.139,48 m³ |
|
Max. permitted loads |
Tanktop: Holds 1/3/5: 10,0 t/m² Holds 2/4: 12,61 t/m² Hatch cover: 2,50 t/m² Deck: 3,70 t/m² |
|
Tank capacities |
Fuel oil: 1.843 m³ Fresh water: 1.558 m³ Water ballast: 12.870 m³ |
|
Cargo gear |
3x IHI electro hydraulic deck cranes - SWL 25,0 t each |
|
Manager |
Minmarine Shipmanagement GmbH & Co. KG Am Ruttmann Kai 1 92253 Schnaittenbach Germany |
|
ISM manager |
MST Mineralien Schiffahrt Spedition und Transport GmbH Am Ruttmann Kai 1 92253 Schnaittenbach Germany |
|
Registered owner |
Bareboat Charterer: Barbara Shipping Ltd. |
|
Renamed |
2000 Susi |
|
Scrapped |
21/01/2021 Beached at Alang by Leela Green Ship Recyclingzum Abbruch as Susi |
|
Latest data adjustment |
15 October 2020 |
