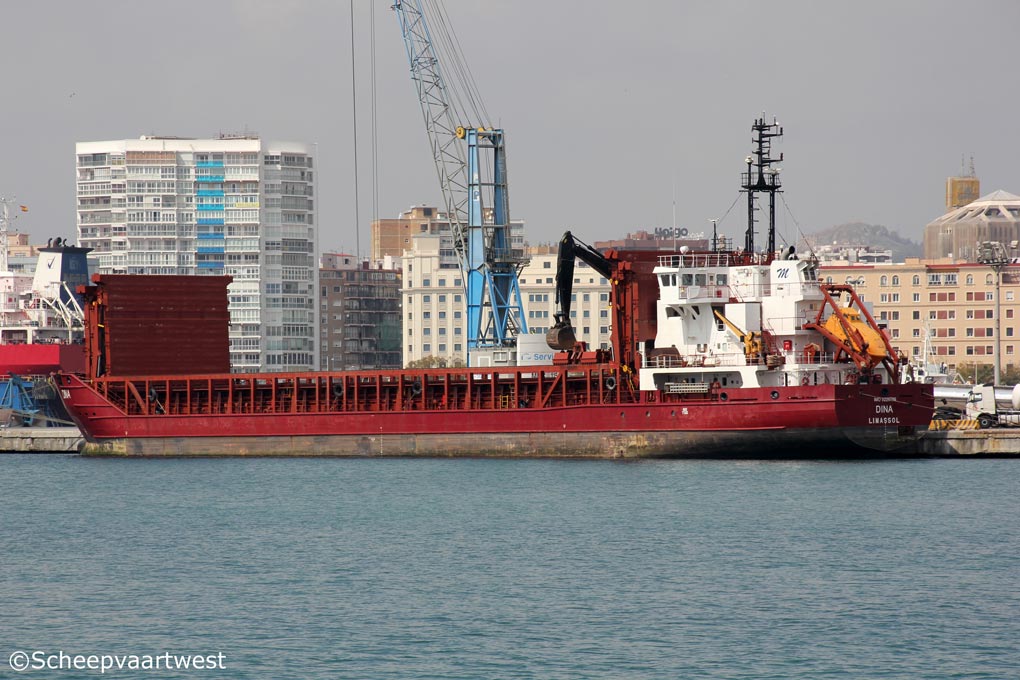

Dina 01

Malaga - Spain 18 March 2016



Name

DINA

Previous names

2002 - 02.2010 Alsen

Type

General dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo - Self discharging

IMO-number

9226786

Call sign

P3EE9

Flag

Cyprus

Port of registry

Limassol

GT

3.925 t

DWT

4.640 t

NT

1.782 t

Number of 20ft containers

In hold: 150

On deck: 75

Total: 225

Reefer capacity

20

Length

99,95 m overall

96,00 m between perpendiculars

Breadth

16,20 m extreme

Draught

5,10 m

Depth

7,35 m

Speed

Service: 11,0 knots

Built

2002

Keel laid

08.06.1998

Launch date

06.06.2001

Date of completion

01.2002

Builder

Zhejiang Yangfan Ship Group Co Ltd
Zhoushan ZJ
China

Yard number

30224

Hull material

Steel

Hull type

Double hull

Movable bulkheads

2x Movable bulkheads - 9 positions

Main engine

1x MaK 6M32 - 6 cylinder diesel engine 3.916 bhp / 2.880 kW

Builder: Caterpillar Motoren GmbH & Co. KG, Kiel - Germany

Propellers

1x Controllable pitch propeller

Shaft generator

400 kW

Generators

1x D 2866 LXE main diesel generatorset 239 kW

Emergency generator

1x D 2866 LXE diesel generatorset 223 kW

Bow thruster

1x 180 kW

Number of holds

1x Boxed hold

63,70 x 12,90 x 8,53 m

Hold capacity

Grain & bale: 7.054 m³- 249.000 ft³

Number of hatches

1

Hatch type

McGregor hatch cover folding

Max. permitted loads

Tank top: 17,0 t/m²

Hatch cover: 1,7 t/m²

Tank capacities

Ballast: 2.577 m³

Anchor equipment

Length: 467,50 m

Diameter: 38 mm

Lifting equipment

1x Excavator Volvo EC 700BLC - SWL 7,75 t

Capacity: 350 m3/h

Manager

Myklebusthaug Management AS
5953 Fonnes
Norway

Previous managers

2002 - 2010 Reider Shipping B.V.

Owner

Mikkal Myklebusthaug Rederi AS

Previous owners

2002 - 2010 Belka Shipping Co. Ltd.

Latest data adjustment

21 April 2016
