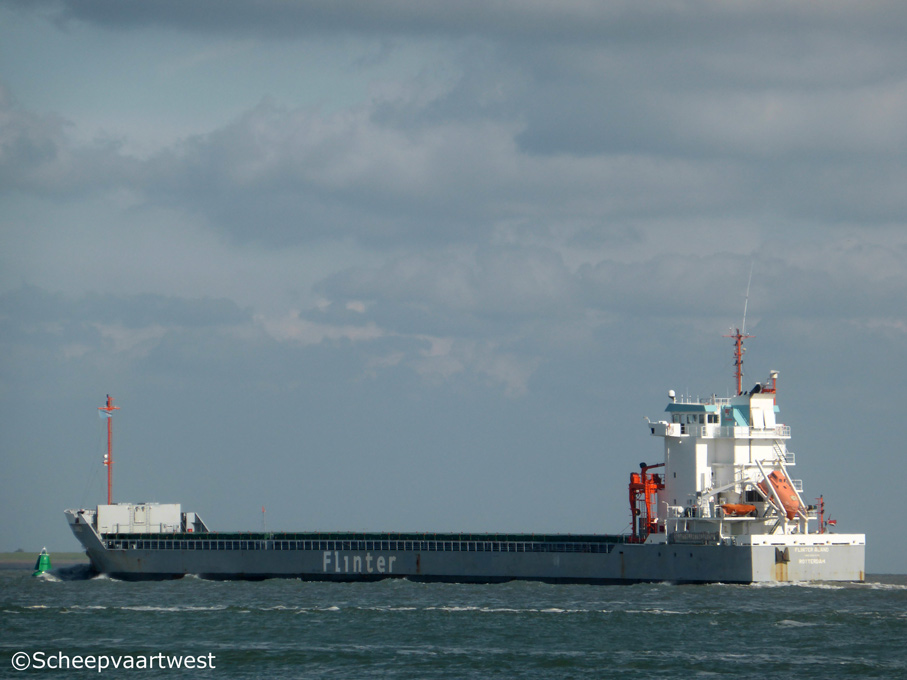

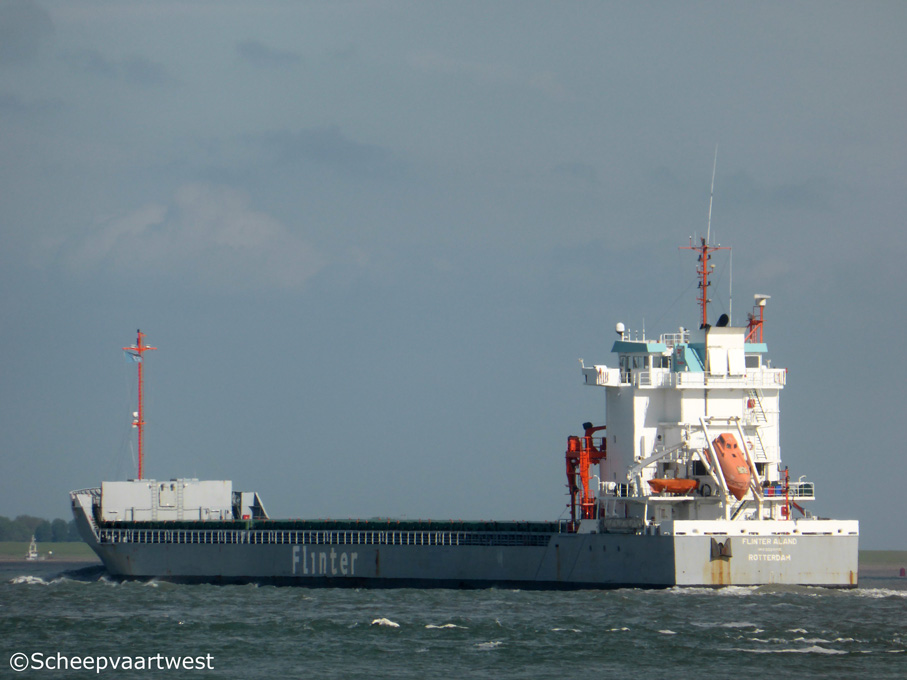

Westerschelde 13 May 2014 |
 |
 |
|

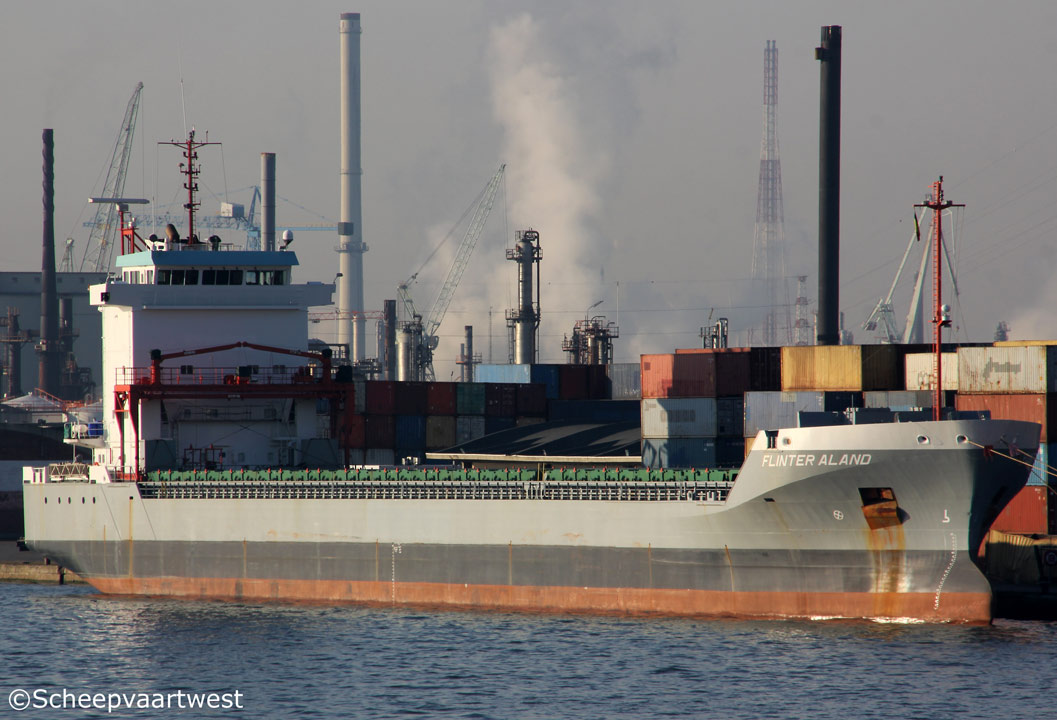

| Westerschelde 13/05/14 | Antwerpen 05/12/16 |
|
Name |
FLINTER ALAND |
|
Type |
Multi-purpose dry carrier - Containership - Heavycargo |
|
IMO-number |
9504140 |
|
Call sign |
PCKY |
|
Flag |
The Netherlands |
|
Port of registry |
Rotterdam |
|
GT |
6.687 t |
|
DWT |
Summer: 11.023 t Winter: 10.703 t |
|
NT |
3.488 t |
|
Number of 20ft containers |
356 |
|
Length |
132,60 m overall 126,35 m between perpendiculars |
|
Breadth |
15,87 m |
|
Draught |
7,83 m |
|
Air draft |
Max.: 34,40 m |
|
Freeboard |
2.955 mm |
|
Depth |
10,87 m moulded |
|
Speed |
14,1 knots |
|
Built |
2011 |
|
Launch date |
14.05.2011 |
|
Date of completion |
09.06.2011 |
|
Builder |
Scheepswerf Ferus Smit B.V. |
|
Yard number |
400 |
|
Hull material |
Steel |
|
Movable bulkheads |
3 |
|
Continuous decks |
1 |
|
Main engine |
1x Mak 8M32 - 4 stroke single acting 8 cylinder 320 x 480 mm diesel engine 4.000 kW / 5.435 bhp at 600 rpm Built: 2010 Builder: Caterpillar Motoren GmbH & Co. KG, Kiel - Germany |
|
Propelling system |
1x Screw propeller controllable pitch - aft at 159 rpm |
|
Shaft generator |
1x 850 kVA - 680 kW |
|
Generators |
2x Diesel generatorsets each 388 kVA - 310 kW - 455 hp 1x Diesel generatorset 131 kVA - 105 kW - 455 hp |
|
Number of holds |
2 |
|
Total capacity of holds |
Grain / bale: 13.008,96 m³ - 460.185 ft³ |
|
Hatch type |
Pontoon |
|
Max. permitted loads |
Tanktop: 15,0 t/m³ Hatch cover: 1,75 t/m² |
|
Tank capacities |
Fuel oil: 587,76 m³ |
|
Cargo gear |
Gearless |
|
Manager |
Flinter Shipping BV. The Netherlands |
|
Operator |
Flinter |
|
Registered owner |
Flinter Aland N.V. 2993 LV Barendrecht The Netherlands |
|
Renamed |
12.2016 Riga The Netherlands, Rotterdam - Call sign: PCKY |
|
Latest data adjustment |
25 March 2016 |
