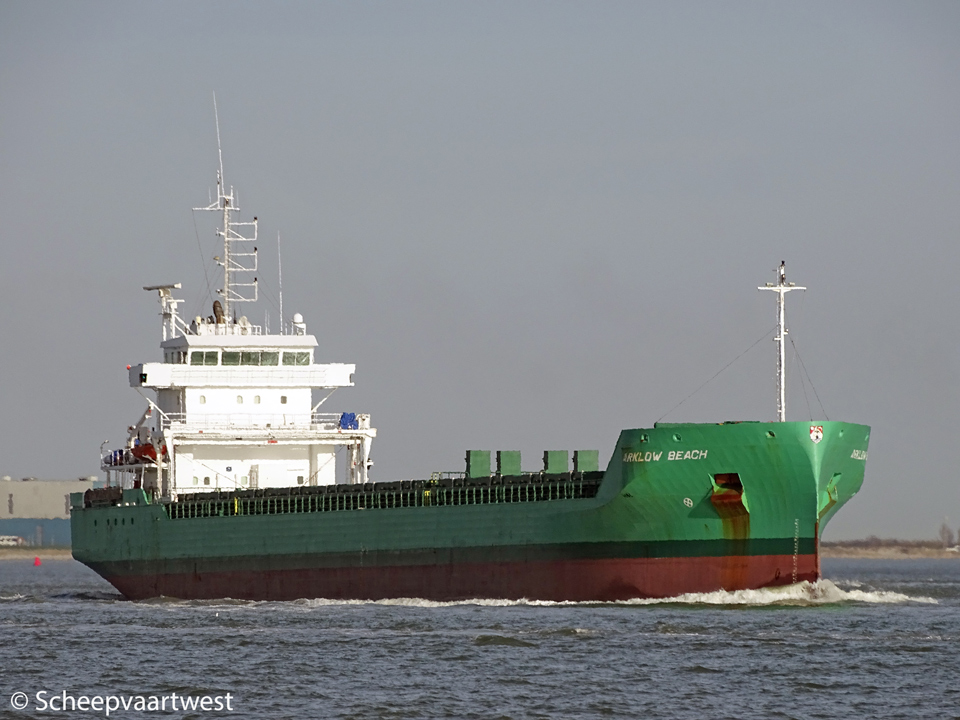

Arklow Beach 02

Westerschelde 30 March 2017

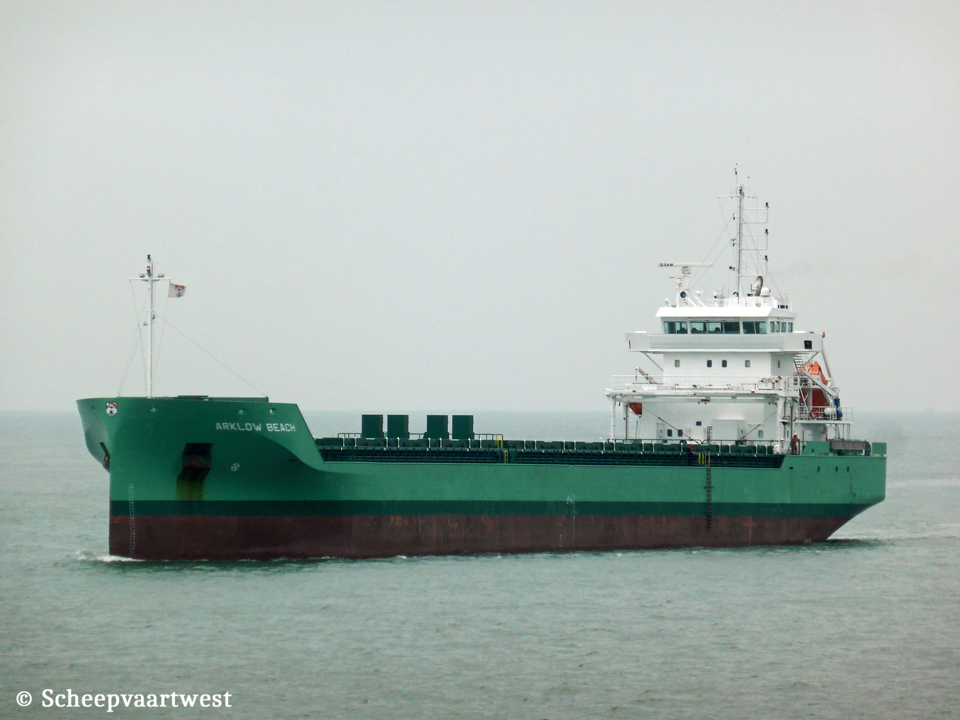

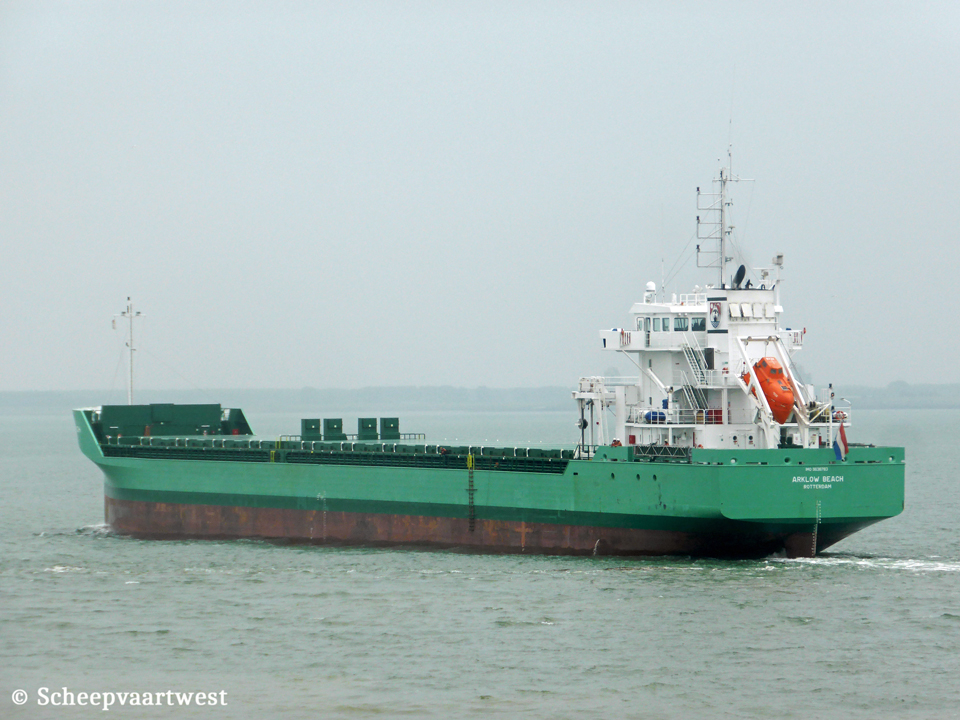

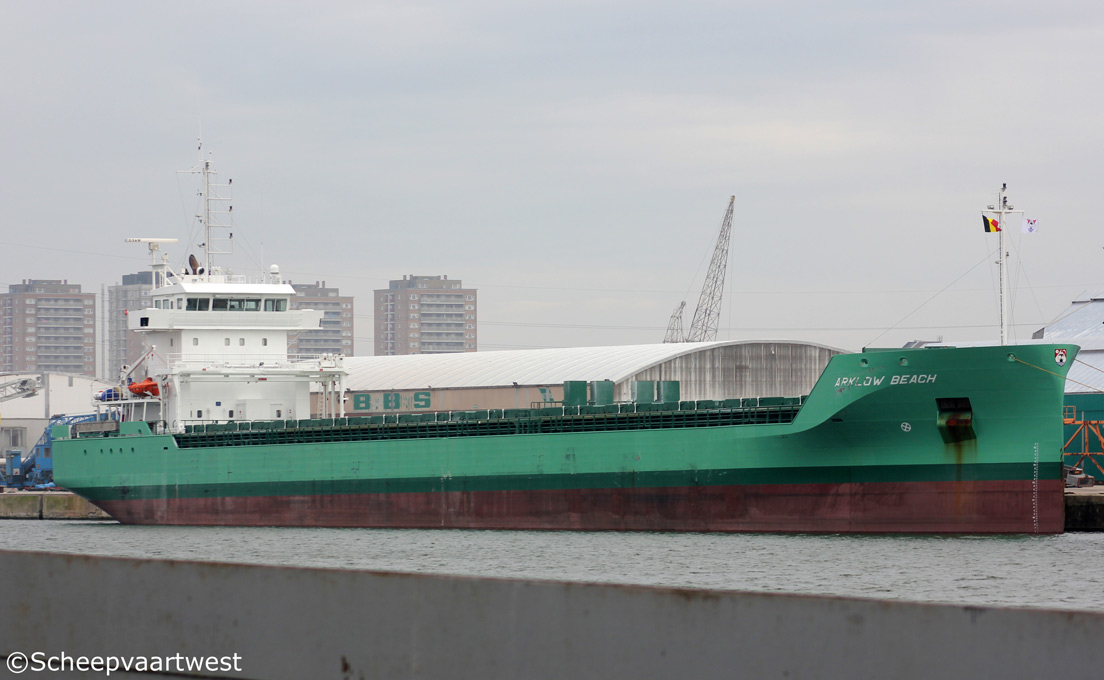

Arklow Beach 01   Arklow Beach IMO 9638783 03   Arklow Beach IMO 9638783 04
Antwerpen 28/11/14   Westerschelde 20/08/15   Westerschelde 20/08/15


Name

ARKLOW BEACH

Type

General cargo ship - heavycargo - occasional dry bulk cargo

Bottom strengthened for loading aground

Tank top strengthened for heavy cargoes

IMO-number

9638783

Call sign

PCVD

Flag

The Netherlands

Port of registry

Rotterdam

GT

5.065 t

DWT

Summer: 8.660 t

NT

2.655 t

Displacement

10.815 t

Length

119,49 m overall

116,89 m between perpendiculars

Breadth

14,99 m moulded

Draught

Summer: 7,18 m

Air draft

Min.: 21,50 m

Freeboard

2.524 mm

Depth

9,70 m moulded

Speed

13,1 knots

Built

2014

Keel laid

15/08/2013

Launch date

06/06/2014

Date of completion

10/07/2014

Builder

Scheepswerf Ferus Smit B.V.

Westerbroek

The Netherlands

Yard number

411

Hull material

Steel

Movable bulkheads

Portable bulkhead may be placed in 5 positions for cargo separation and storage position

Continuous decks

1

Main engine

1x MaK 8M25 - 4 stroke single acting 8 cylinder 255 x 400 mm combustion engine 2.665 kW / 3.623 bhp at 750 rpm

Built: 13/12/2013

Builder: Caterpillar Motoren GmbH, Kiel - Germany

Propellers

1x Berg controllable pitch propeller- aft at 143,0 rpm

Shaft generator

1x 389 kW

Generators

2x Sisu Diesel main diesel generatorsets each 295 kVA - 236 kW - 340 hp

Emergency generator

1x Diesel generatorset 120 kVA - 96 kW - 158 hp

Bow thruster

1x Electric bow thruster 380kW

Number of holds

2

Total capacity of holds

Grain & Bale:

Hold 1: 4.034,7 m³ / 142.484 ft³

Hold 2: 5.867,9 m³ / 207.222 ft³

Total: 9.902,6 m³ / 349.706 ft³

Max. permitted loads

Hatch covers: 1,75 t/m²

Tank top: 15,0 t/m²

Hatch type

Coops & Nieborg pontoon system

Tank capacities

HFO: 286 m³

GO: 38 m³

fresh water: 53 m³

Lub oil: 22 m³

Ballast: 3.547 m³

ISM & commercial manager

Arklow Shipping Nederland B.V.

Hoofdweg 18

3067 GH Rotterdam

The Netherlands

Owner

Glenthorne Shipping Ltd.

Care of Arklow Shipping Unlimited Co (Arklow Shipping ULC)

North Quay, Arklow, Co.

Wicklow

Ireland

Latest data adjustment

16 January 2024
